3RT2035-1AK60 Siemens
Original price
$313.47
-
Original price
$375.00
Original price
$375.00
$313.47
-
$375.00
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

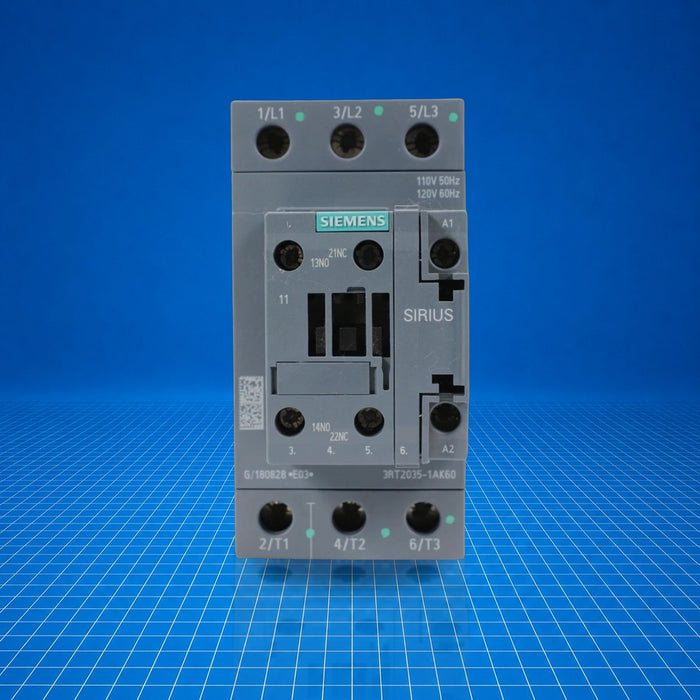

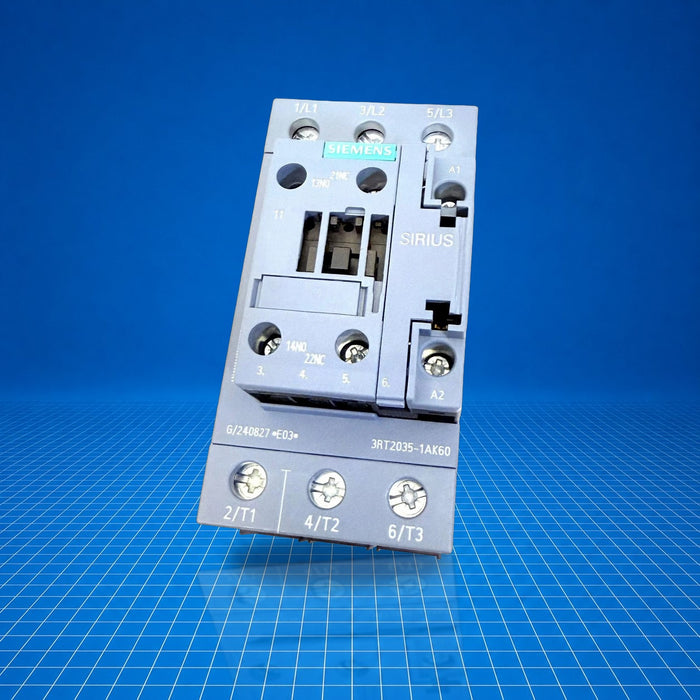

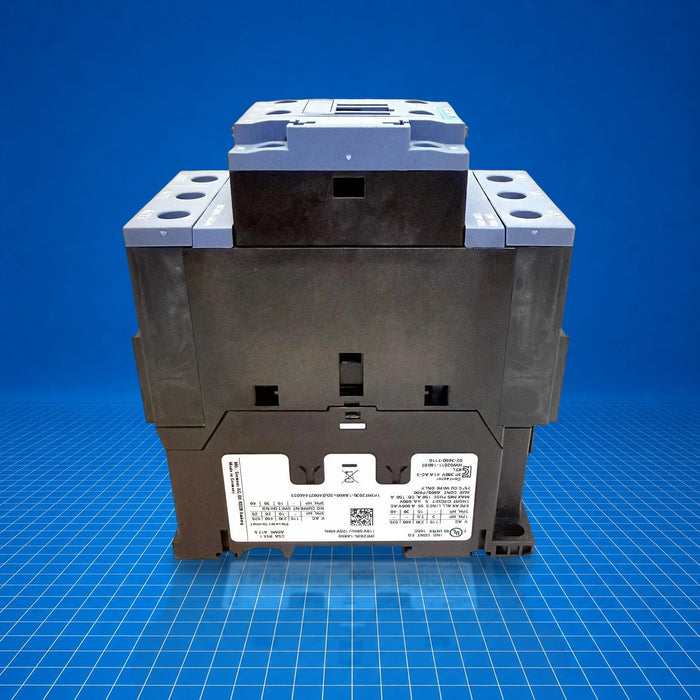

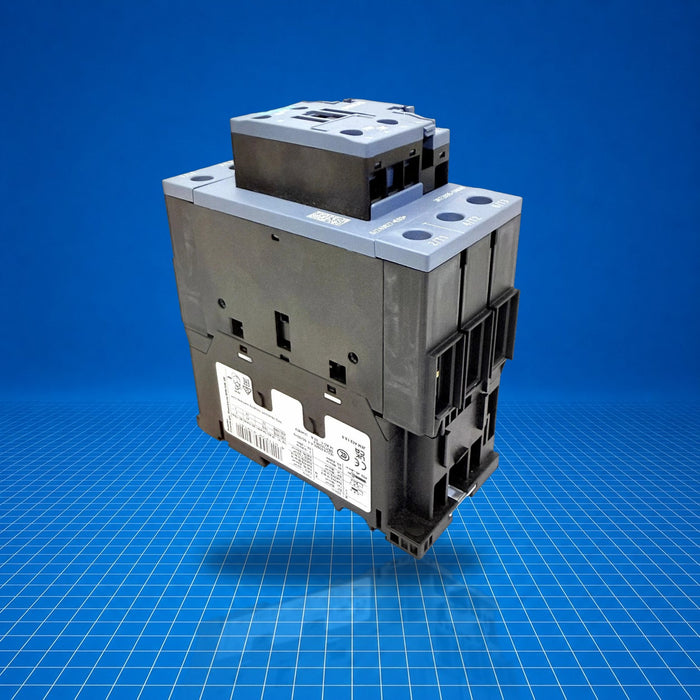

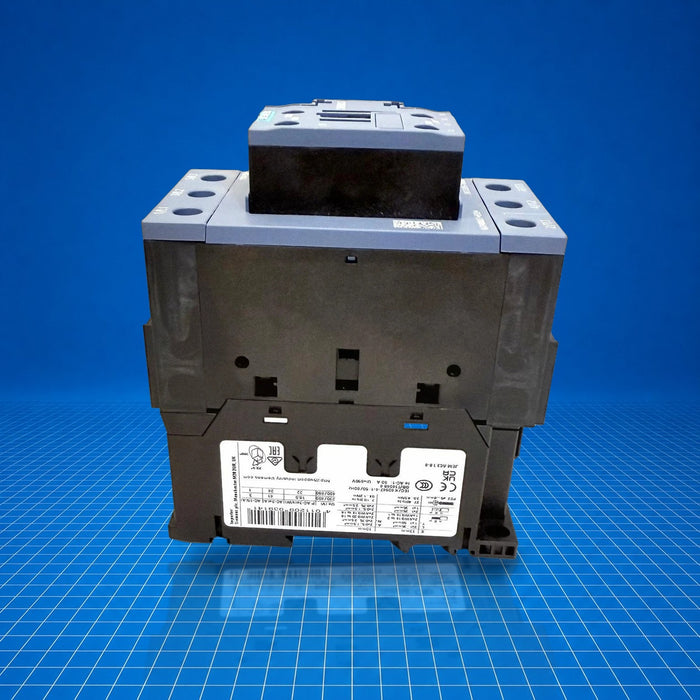

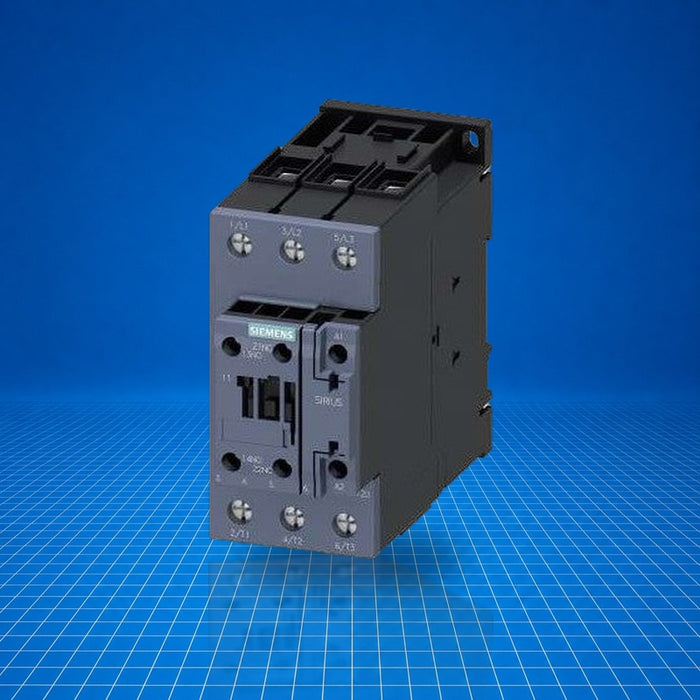

Siemens 3RT2035-1AK60 is a SIRIUS 3RT2 series three-pole AC-3/AC-3e power contactor rated for 41 A (400 V), with a 110 V AC coil (50 Hz) or 120 V AC coil (60 Hz). It includes one normally open and one normally closed auxiliary contact, and uses screw-type terminals. It is designed for motor switching and general load control in industrial automation systems, such as motor starters, conveyor controls, and pump or fan circuits. 3RT2035-1AK60 integrates into control panels following industry standards, maintaining compatibility across related components.
Best Suited For
- Motor starter applications up to 18.5 kW at 400 V AC
- Three-phase load switching in control panels
- Replacement in existing SIRIUS 3RT2 contactor installations
- Auxiliary contact signaling for PLC or control logic
Rated operational current (AC-3 / AC-3e)
41 A
Coil voltage
110 V AC (50 Hz) / 120 V AC (60 Hz)
Auxiliary contacts
1 NO + 1 NC
Power loss (hot)
6.6 W total (2.2 W per pole)
Technical Specifications
I/O & Electrical
Rated operational current (AC-3 / AC-3e)
41 A
Rated motor rating
18.5 kW / 400 V
Auxiliary contacts
1 NO + 1 NC
Insulation voltage (pollution degree 3)
690 V (main and auxiliary)
Surge voltage resistance
6 kV (main and auxiliary)
Communication & Power
Coil (control) voltage
110 V AC / 120 V AC
Power loss (hot operating)
6.6 W total (2.2 W per pole)
Physical & Environmental
Frame size
S2
Mechanical service life
10 000 000 cycles (standard)
Ambient temperature (operation)
-25 … +60 °C
Mounting altitude max
2 000 m
Weight
0.982 kg
