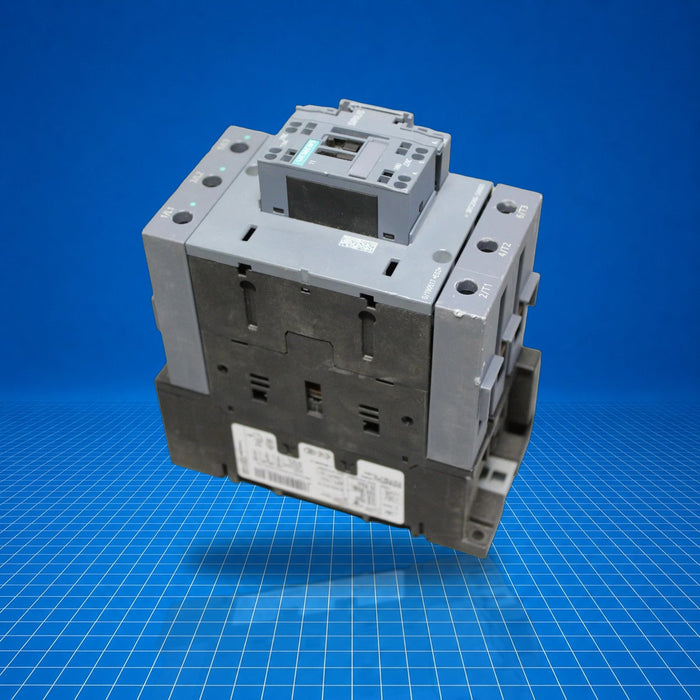

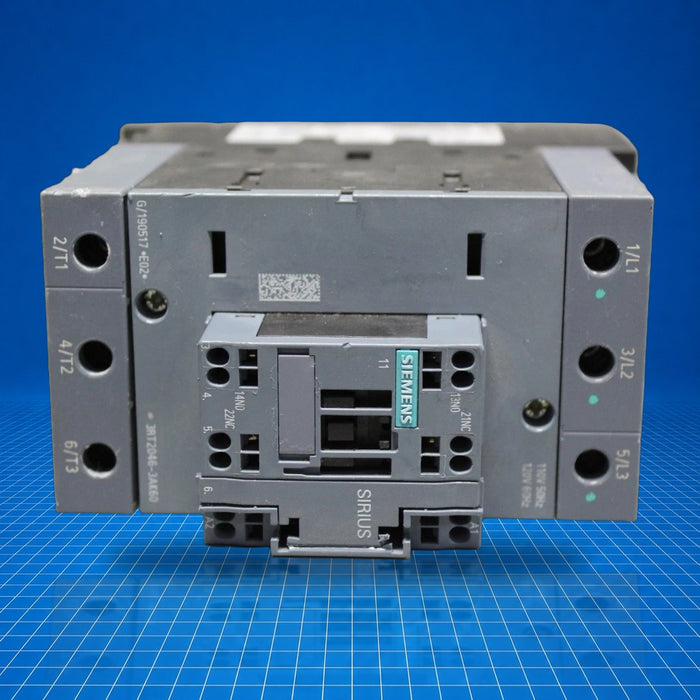

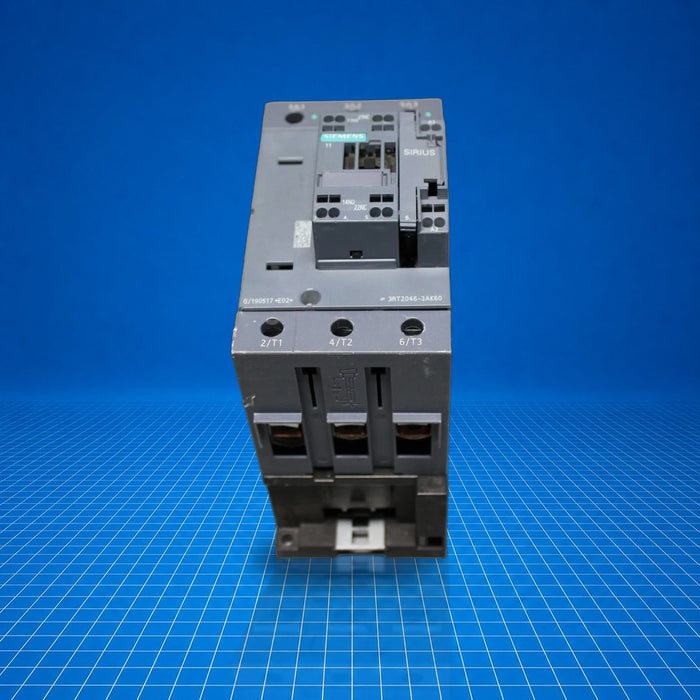

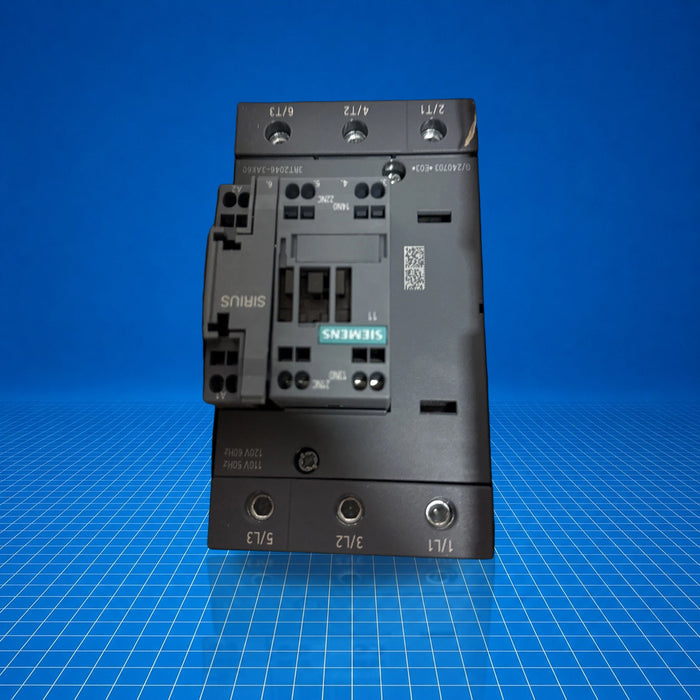

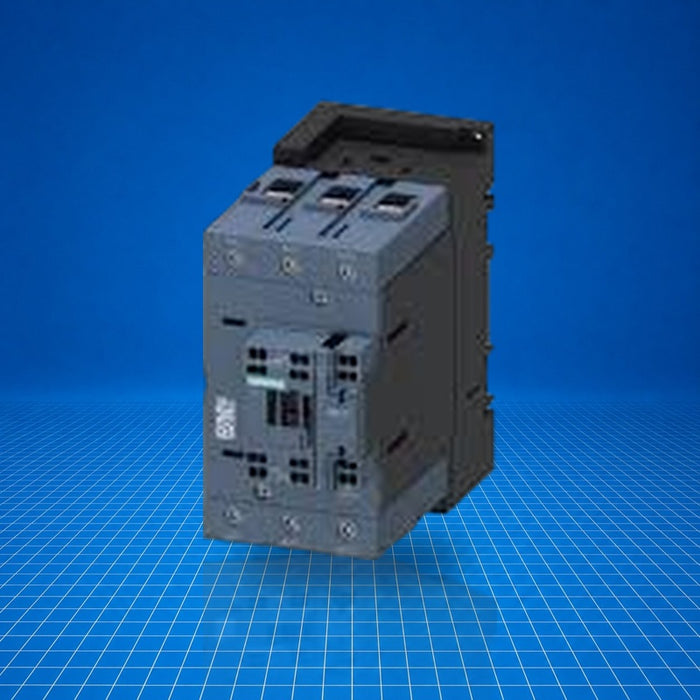

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3RT2046-3AK60 Siemens
Original price
$580.50
-
Original price
$756.22
Original price
$580.50
$580.50
-
$756.22
Current price
$580.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 3RT2046-3AK60 is a Siemens SIRIUS 3RT series power contactor (size S3), intended for AC-3e/AC-3 motor switching. It provides 95 A switching capacity and up to 45 kW (400 V AC) motor control, with 3-pole main contacts and a 110 V AC coil (50 Hz) or 120 V AC coil (60 Hz). Designed for industrial motor control panels and machine automation, it supports standard switching applications and auxiliary control circuit integration. The unit includes one NO and one NC auxiliary contact, screw terminals, and is suitable for vertical mounting. Part number 3RT2046-3AK60.
Best Suited For
- AC-3 motor switching up to 45 kW (400 V)
- Control panels using 110 V AC (50 Hz) or 120 V AC (60 Hz) coils
- Three-phase motor control
- Enclosures with screw-terminal wiring
- Maintenance and replacement in SIRIUS S3 contactor setups
Contactor Size
S3
Main Contact Poles
3
Switching Capacity AC-3 (400 V)
95 A / 45 kW
Auxiliary Contacts
1 NO + 1 NC
Coil Voltage
110 V AC (50 Hz) / 120 V AC (60 Hz)
Technical Specifications
I/O & Electrical
Operational current AC-3 (400 V)
95 A
Operational power AC-3 (400 V)
45 kW
AC-3e/AC-3 max voltage
1 000 V
Auxiliary contact configuration
1 NO + 1 NC
Communication & Power
Coil voltage
110 V AC (50 Hz) / 120 V AC (60 Hz)
Power loss (hot, AC)
19.8 W total; 6.6 W per pole
Insulation voltage, main circuit
1 000 V
Insulation voltage, auxiliary circuit
690 V
Surge voltage resistance, main
8 kV
Surge voltage resistance, auxiliary
6 kV
Physical & Environmental
Ambient operating temperature
-25 … +60 °C
Storage temperature
-55 … +80 °C
Relative humidity at 55 °C
max 95 %
Net weight
~1.709 kg
Mounting position
+/-180° vertical; ±22.5° tilt
Certifications
CEULCSA
