6EP1332-1SH71 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

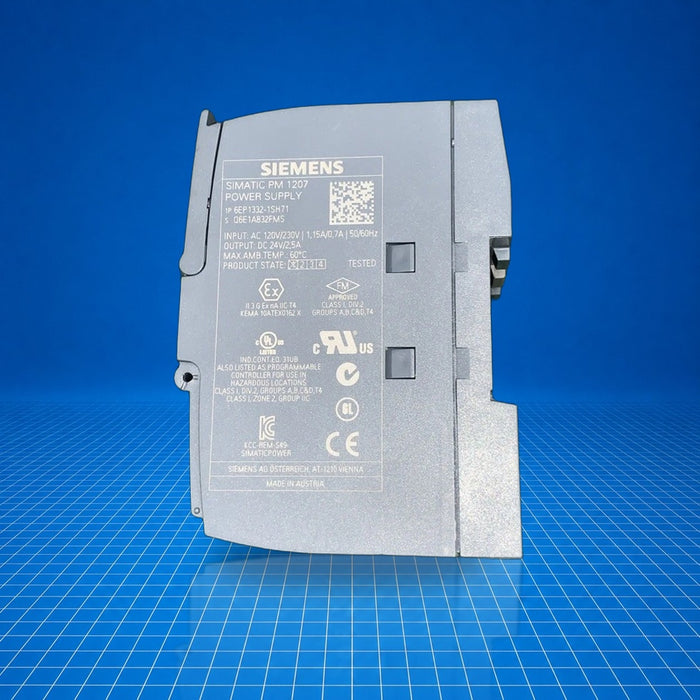

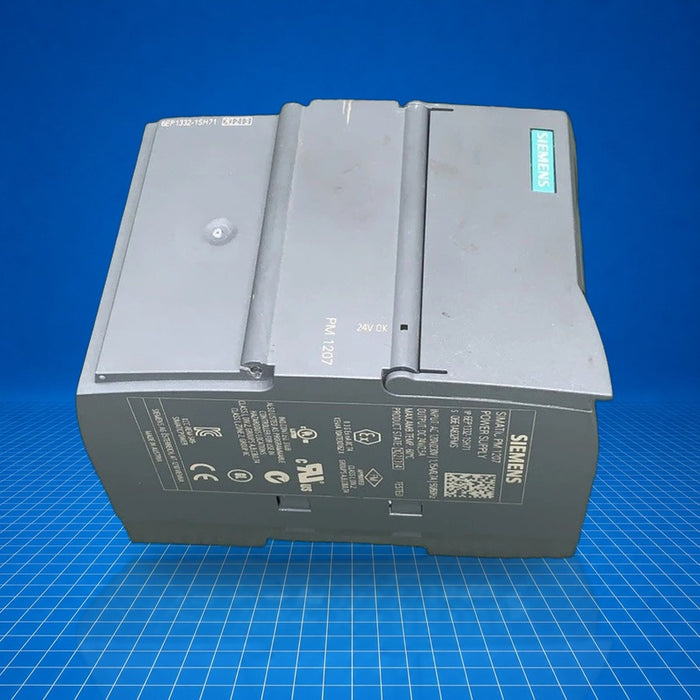

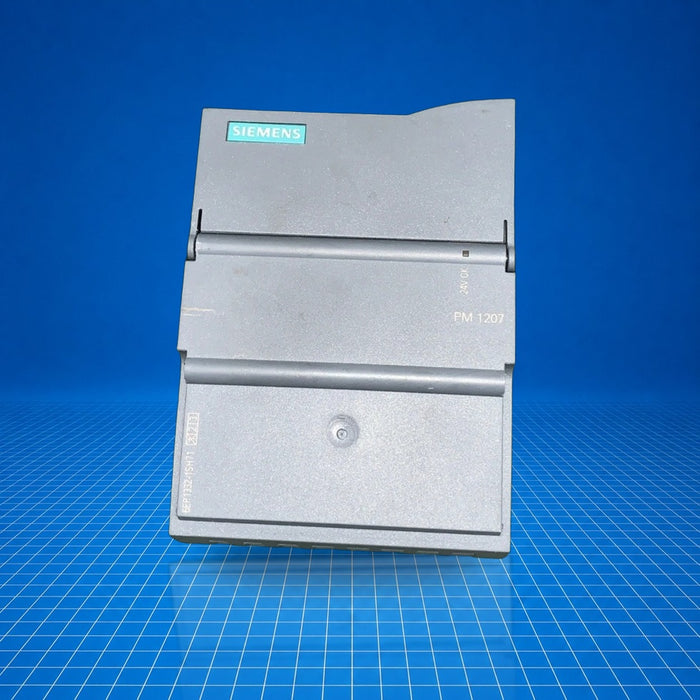

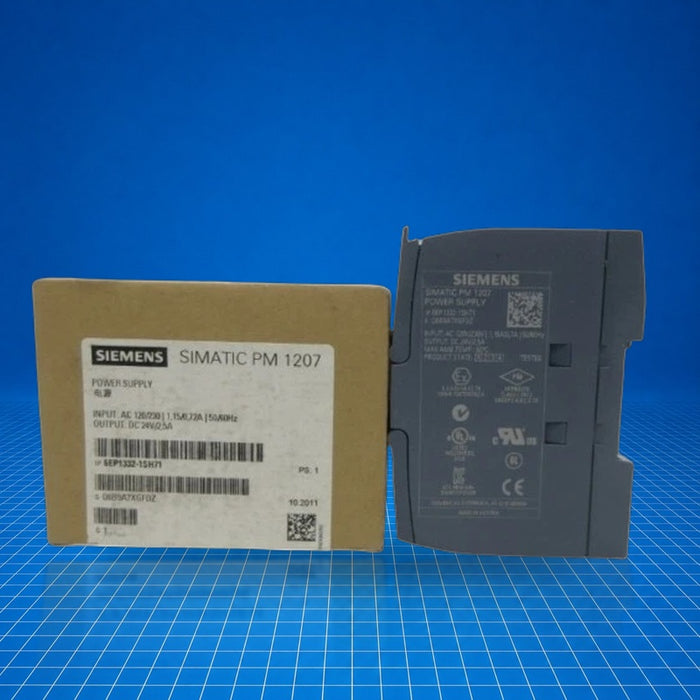

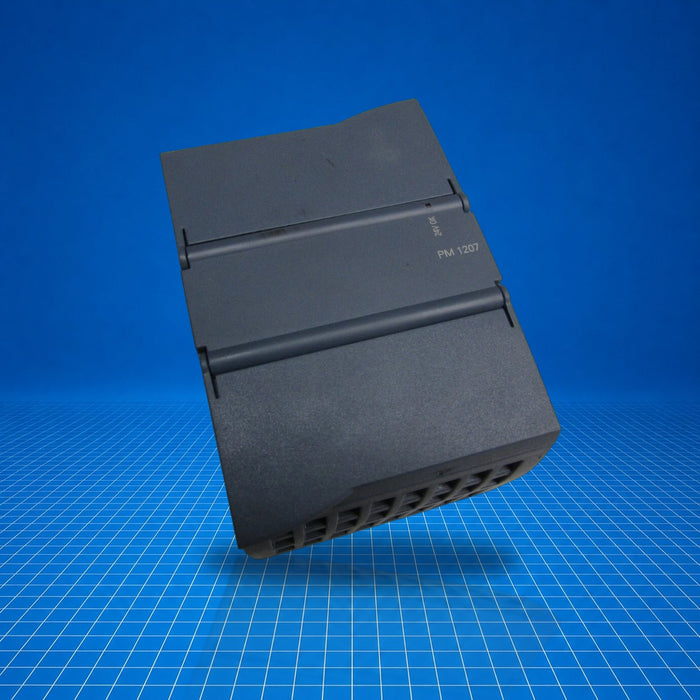

6EP1332-1SH71 is a SIMATIC S7-1200 power module designated PM1207, providing a stabilized 24 V DC output at up to 2.5 A for S7-1200 control systems. It accepts single-phase 120/230 V AC input with automatic switchover and includes buffering to maintain operation through brief mains interruptions. Designed for DIN-rail installation, it integrates within machine control panels to supply PLCs and associated modules in industrial automation environments. 6EP1332-1SH71 supports hazardous-location certifications, enabling use in demanding industrial contexts where safety and continuity are required.
Best Suited For
- SIMATIC S7-1200 PLC power supply
- DIN-rail cabinet installations
- Environments requiring hazardous-location approvals (e.g. Class I, Div. 2)
- Applications with brief mains interruptions needing >20 ms buffering
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
CE; UL (UL 508, CSA C22.2 No. 107.1), cULus-Listed; cURus-Recognized (UL 60950-1, NEC Class 2); UKCA; EAC; ATEX (II 3 G Ex ec nC IIC T4 Gc); IECEx (Ex nA nC IIC T4 Gc); FM (Class I, Div. 2, Group A-D, T4); marine approvals (ABS, BV, DNV, LRS, NK).
