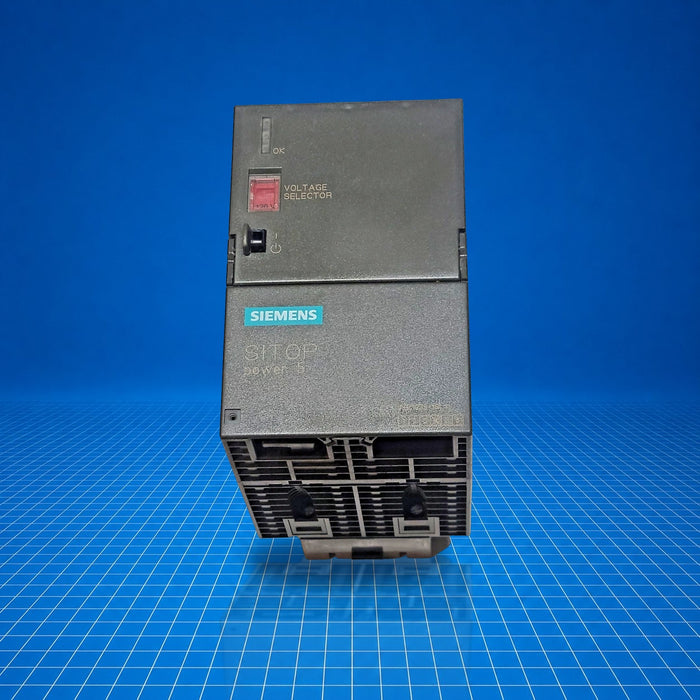

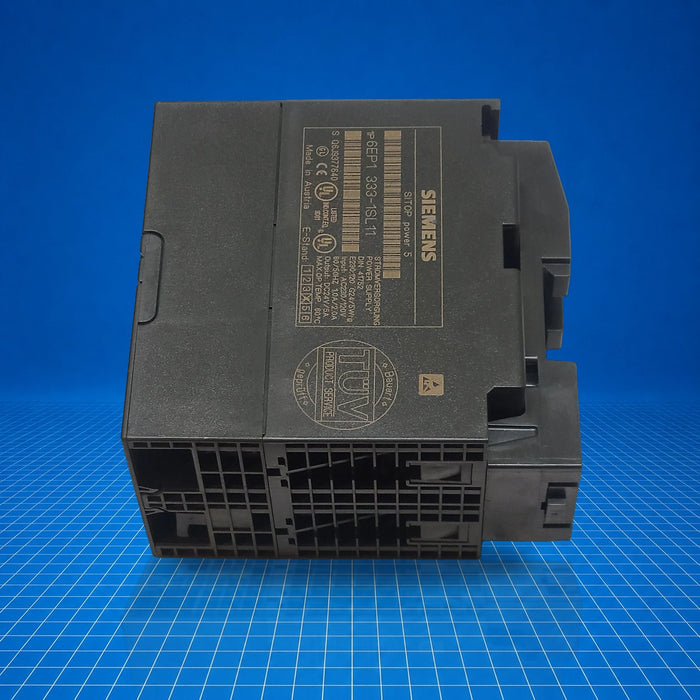

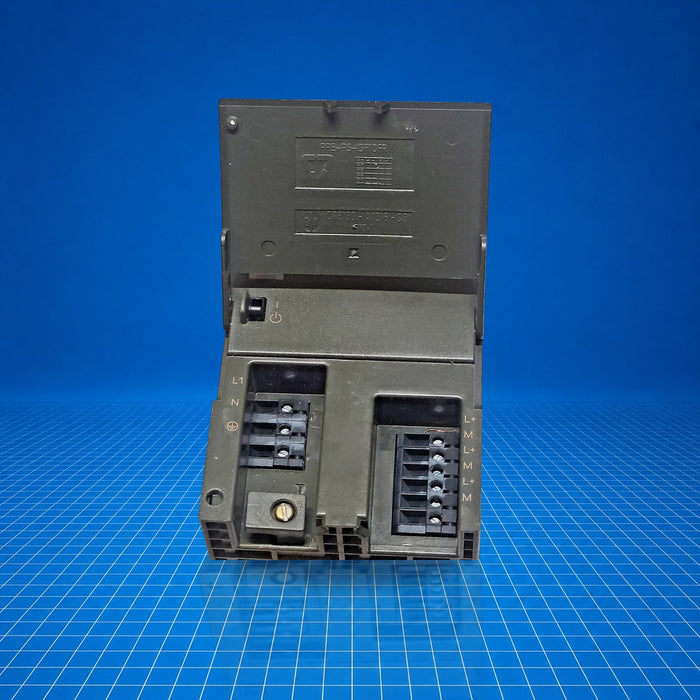

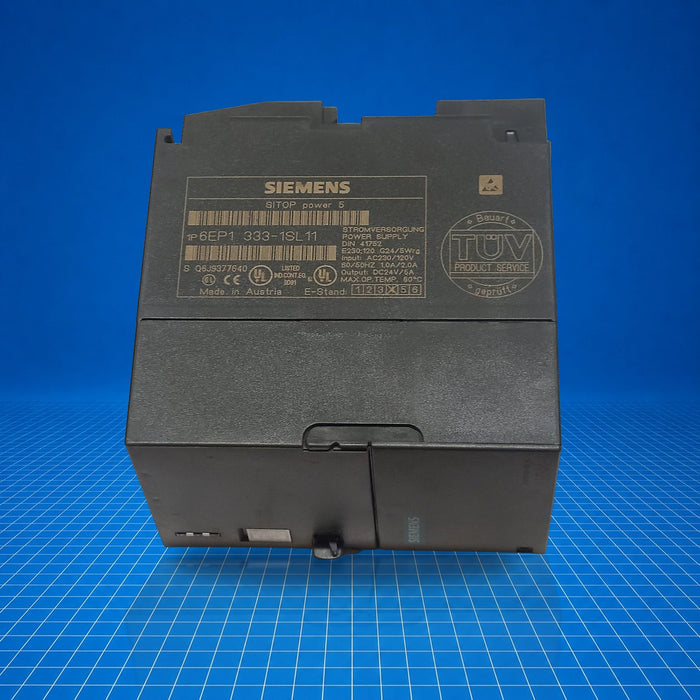

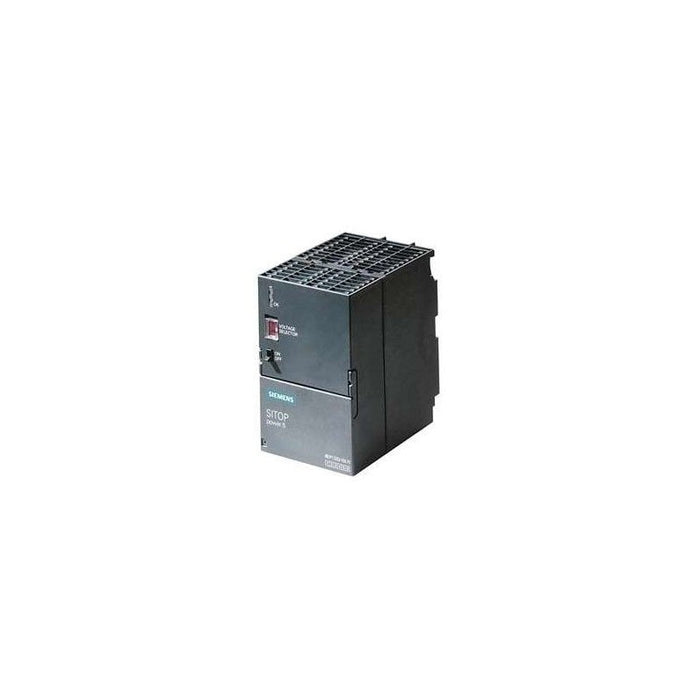

6EP1333-1SL11 Siemens
Original price
$382.38
-
Original price
$1,908.55
Original price
$382.38
$382.38
-
$1,908.55
Current price
$382.38
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part 6EP1333-1SL11 is a SITOP lite series single-phase 24 V DC power supply capable of delivering up to 5 A. It accepts standard industrial AC mains (120/230 V, 50/60 Hz) and provides stabilized low-voltage DC power for control systems. It is used to power PLCs, I/O modules, HMIs, and auxiliary devices in automation panels, machinery control enclosures, and general industrial installations. The SITOP lite platform offers protection features, mains buffering, and standard DIN-rail mounting.
Best Suited For
- Feeding PLC and I/O racks in control panels
- Machine-mounted auxiliary DC power
- Backup with buffering for short mains interruptions
- Replacement for existing SITOP lite 24 V/5 A supplies
Output current
5 A
Output voltage
24 V DC ± 3 %
AC input
120/230 V AC, 50/60 Hz
Mains buffering
> 20 ms at 93/187 V and full load
Degree of protection
IP20
Technical Specifications
I/O & Electrical
DC output voltage
24 V DC ± 3 %
DC output current
0-5 A
Communication & Power
AC input voltage
120/230 V AC
Line frequency
50/60 Hz
Mains buffering time
> 20 ms at 93/187 V line voltage and full load
Ripple content of output voltage
< 150 mV ss ripple, < 240 mV ss spikes
Physical & Environmental
Degree of protection
IP20
Inrush current limitation (25 °C)
< 20 A, 1.2 A²s
Certifications
CEcULus-Listed
Applies standards EN 61000-4-1 A.2 (overvoltage), conforms to IEC degree of protection IP20.
