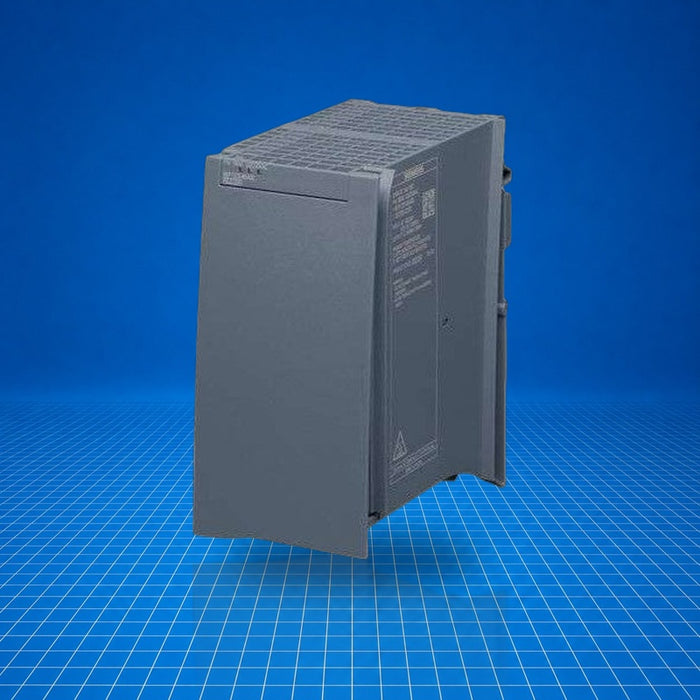

6EP1333-4BA00 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 6EP1333-4BA00 (SIMATIC PM 1507/1AC/24VDC/8A) is a stabilized load power supply module designed for DIN-rail mounting in SIMATIC S7-1500 systems. It converts 120/230 V AC (single-phase) to 24 V DC at up to 8 A, providing controlled, isolated SELV output. It supports automatic input voltage selection and offers soft-start, short-circuit protection, galvanic isolation, and LED status indicators. Commonly used in industrial control cabinets powering logic modules, I/O racks, and downstream devices.
Best Suited For
- Powering S7-1500 PLC base units and I/O modules
- Applications requiring 24 V DC distribution from 120/230 V AC supply
- Redundant or parallel-connected supplies for increased capacity
- Environments needing soft-start and fault-indication LEDs
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
CE, UL Listed / cULus-Listed (UL 508, CSA C22.2 No. 142), UKCA, EAC, RCM, BIS, CB-certificate; Marine approvals: ABS, BV, DNV; IEC 55022 Class B, EN 61000-3-2, EN 61000-6-2
