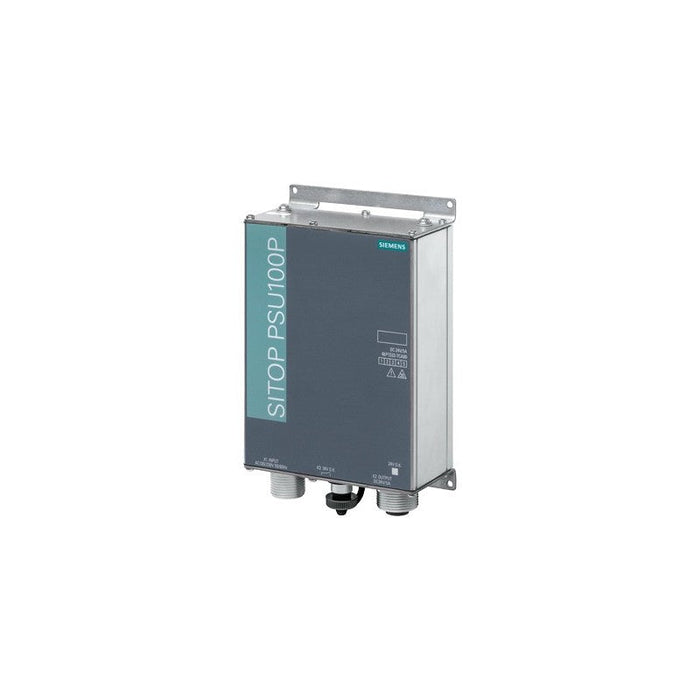

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP1333-7CA00 Siemens
Original price
$712.25
-
Original price
$1,307.50
Original price
$712.25
$712.25
-
$1,307.50
Current price
$712.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6EP1333-7CA00 is a SITOP PSU100P stabilized single-phase power supply with IP67 enclosure, providing 24 V DC at 5 A output. Designed for wall-mounting outside of control cabinets, it accepts 120/230 V AC via automatic voltage switchover. Part of the SITOP PSU100P IP67 family, it functions to deliver reliable DC power in harsh, distributed industrial environments such as conveyor zones, field-mounted assemblies, and outdoor infrastructure. 6EP1333-7CA00 is typically specified where compact, sealed power delivery is required.
Best Suited For
- Field-mounted power distribution (outside control cabinet)
- Conveyor and machine baseplate installations
- Outdoor or wash-down environments (IP67 protection)
- Replacement in legacy SITOP PSU100P installations
Output voltage
24 V DC
Maximum output current
5 A
Input voltage range
85-132 V AC / 170-264 V AC
Operating temperature range
-25 °C to +60 °C
Degree of protection
IP67
Technical Specifications
I/O & Electrical
Input voltage range (AC)
85-132 V AC; 170-264 V AC
Input frequency
47-63 Hz
Input current
2.25 A at 120 V AC; 1.24 A at 230 V AC
Output voltage
24 V DC
Output current (rated)
5 A
Residual ripple (max)
50 mV
Peak ripple (max)
100 mV
Communication & Power
Status indicator
Green LED = 24 V OK; Red LED flashing = overload/short-circuit
Signaling contact ("24 V OK")
Relay NO contact rating: 30 V AC/0.5 A; 30 V DC/1 A
Cold-start buffering time
40 ms at Vin = 120/230 V
Physical & Environmental
Degree of protection
IP67
Operating temperature range
-25 °C to +60 °C without derating
Mounting
Wall-mount (distributed applications)
Net weight
1.1 kg
Packaging dimensions
18.5 × 21.5 × 7.5 cm
Certifications
RoHSWEEEEU Declaration of Conformity
