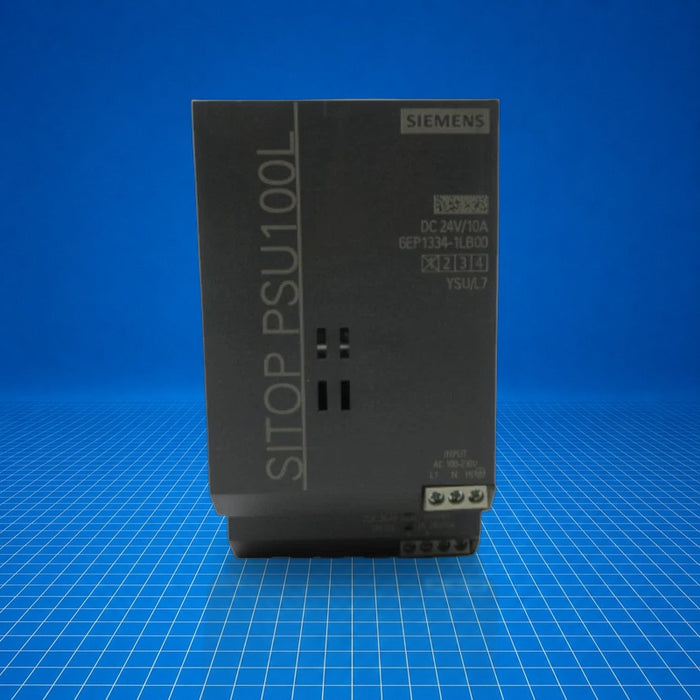

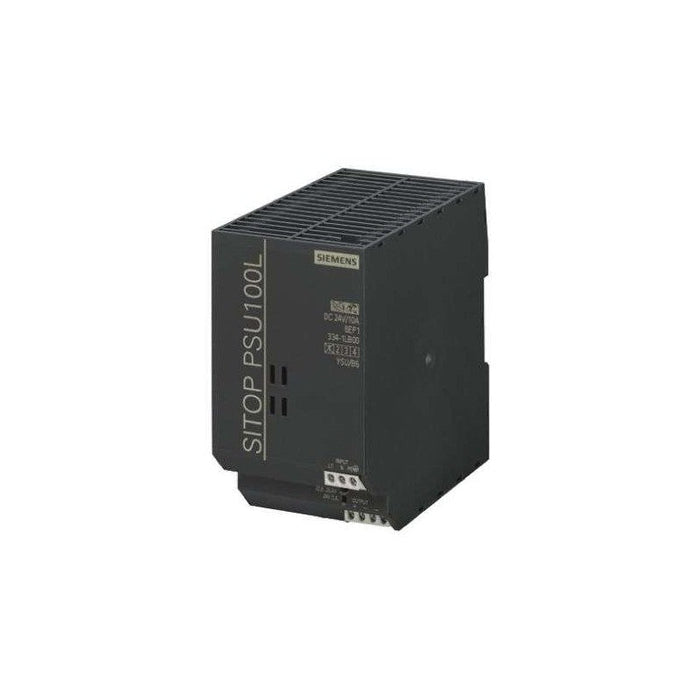

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP1334-1LB00 Siemens
Original price
$314.37
-
Original price
$356.40
Original price
$314.37
$314.37
-
$356.40
Current price
$314.37
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6EP1334-1LB00 is a SITOP PSU100L single-phase AC to 24 V DC/10 A regulated power supply. It provides buffered DC power in industrial control systems, with selectable input for 120 or 230 V AC. The device delivers reliable 24 V DC output up to 10 A and is part of the SITOP PSU100L family. It supports control panels, PLCs, and field devices, and is commonly used in machinery, automation cabinets, and standard industrial power distribution.
Best Suited For
- DIN-rail or panel-mount 24 V DC power supply for control cabinets
- Feeding PLC and sensor networks requiring up to 10 A
- Replace or retrofit SITOP PSU100L units in industrial systems
- Systems needing buffered voltage during short mains interruptions
Output voltage
24 V DC
Rated output current
10 A
Input voltage range
93…132 V AC or 187…264 V AC (selector)
Overvoltage capability
2.3 × Vin for 1.3 ms
Buffering time (on power loss)
≥20 ms
Technical Specifications
I/O & Electrical
Output voltage
24 V DC
Rated output current
10 A
Adjustable output voltage
22.8…26.4 V via potentiometer
Relative overall tolerance
3 %
Residual ripple, typical / max
50 mV / 150 mV
Voltage overshoot on start-up
≈4 %
Communication & Power
Input voltage (selector)
93…132 V AC or 187…264 V AC
Line frequency range
47…63 Hz
Input current at 120 V AC
4.1 A
Input current at 230 V AC
2 A
Inrush current (max)
65 A
Inrush duration (typical)
3 ms
I²t value (max)
3.3 A²·s
Power loss at rated load (typical)
34 W
Efficiency
89 %
Physical & Environmental
Weight
0.600 kg
Mounting
DIN-rail / panel (per SITOP family mounting)
IP rating
IP20
Operating temperature / derating
+45…+60 °C: derating 2 %/K
Certifications
CEUL ListedcULusUKCAEACCB
CE, UL Listed and cULus-Listed to UL 508 and CSA C22.2 No. 107.1 (File E197259), UKCA, EAC, CB certificate, Environmental Product Declaration available.
