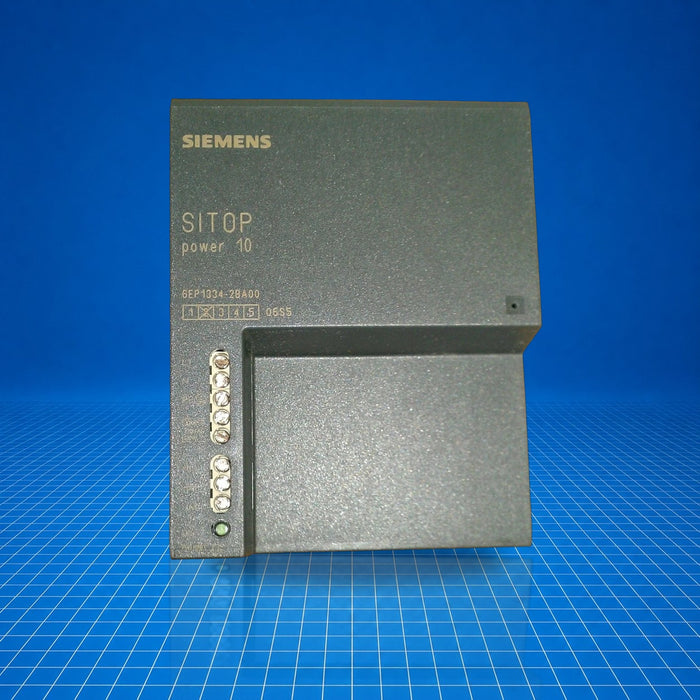

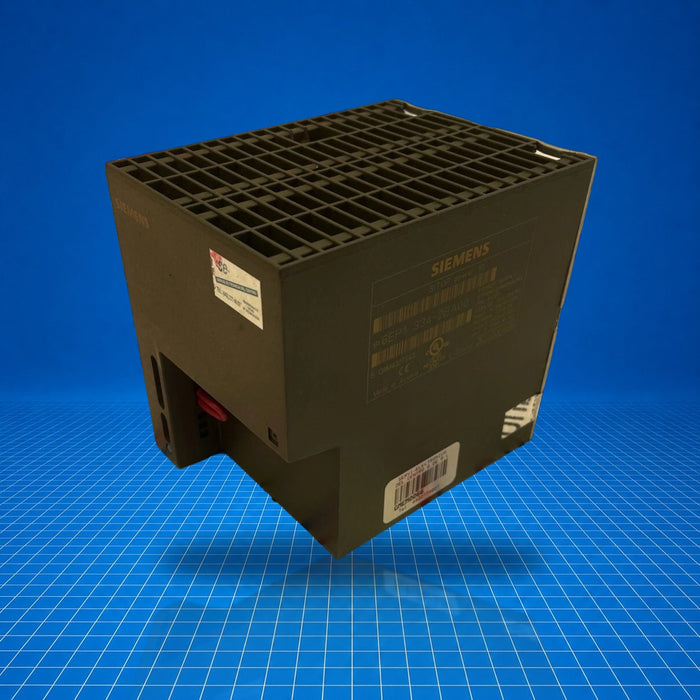

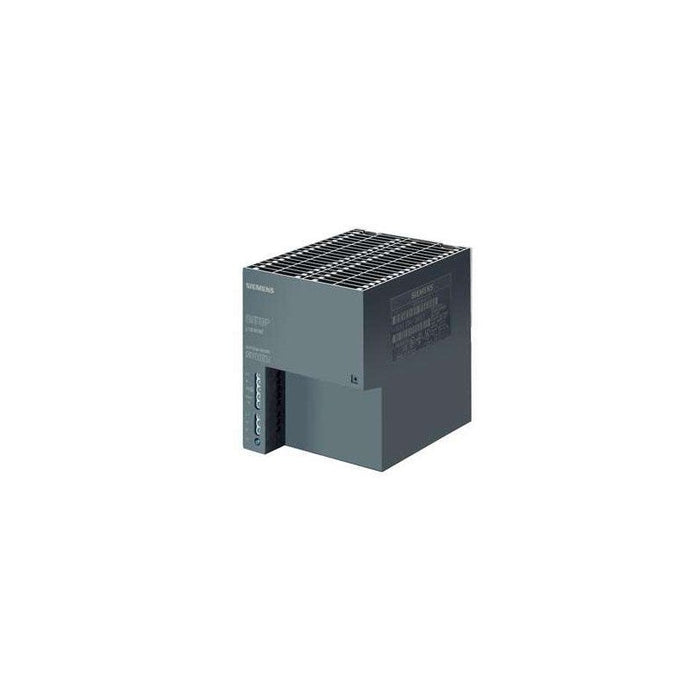

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP1334-2BA00 Siemens
Original price
$400.00
-
Original price
$1,306.25
Original price
$400.00
$400.00
-
$1,306.25
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6EP1334-2BA00 (SITOP PSU100S) is a single-phase, DIN-rail mounted, stabilized power supply delivering 24 V DC at up to 10 A. It provides continuous, isolated DC output with integrated short-circuit and open-circuit protection. This module supports control system power feeds and industrial automation applications requiring a regulated 24 V DC supply, such as PLC power, field device operation, and machine safety circuits.
Best Suited For
- Control cabinet power supply for PLCs and I/O modules
- Field device and sensor power in industrial automation
- Safe power source with relay feedback ('24 V OK') for system monitoring
- Parallel or series use for increased output current or voltage
Output voltage
24 V DC
Max output current
10 A
Input voltage range
85 … 132 V AC and 170 … 264 V AC
Buffer time at full load
≥ 20 ms at 93/187 V AC
Degree of protection
IP 20
Technical Specifications
I/O & Electrical
Input voltage (AC)
85 … 132 V AC and 170 … 264 V AC
Line frequency
47 … 63 Hz
Input current
≈ 4.49 A at 120 V; ≈ 1.91 A at 230 V
Inrush current
max 60 A, I²t 5.6 A²·s
Output voltage
24 V DC (adjustable 22.8 … 28 V)
Output current
10 A (0 … 12 A range; derating above +45 °C)
Ripple / spikes
≤ 150 mVss / ≤ 240 mVss
Power loss (typical)
25 W
Efficiency (typical)
≈ 90 %
Communication & Power
LED status
Green LED for "24 V OK"
Signaling contact
Relay (NO); 60 V DC / 0.3 A
Physical & Environmental
Mounting
DIN rail EN 60715 35×7.5/15
Dimensions (W×H×D)
70 × 125 × 120 mm
Weight
0.8 kg
Operating temperature
-25 … +70 °C
Storage/transport temperature
-40 … +85 °C
Environmental class
IEC 60721-3-3 Class 3K3, 5 … 95 % RH non-condensing
Certifications
CBCEcCSAuscULusUL
