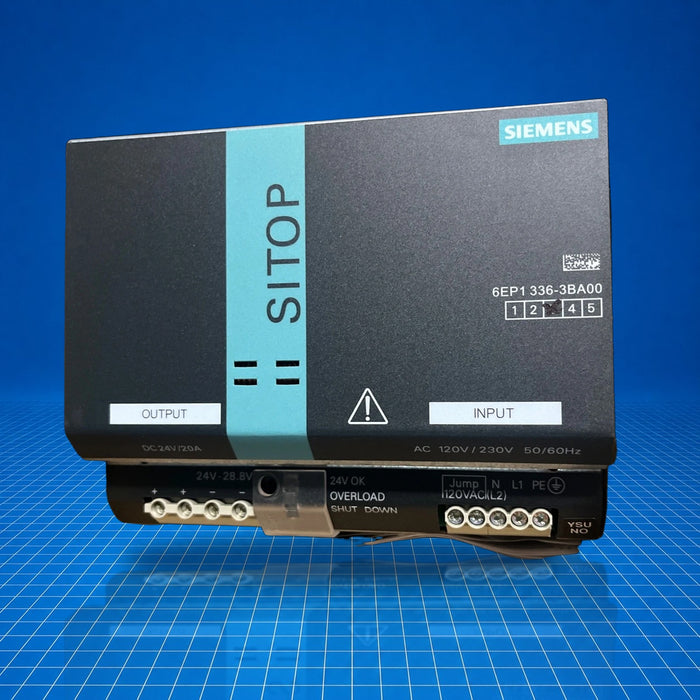

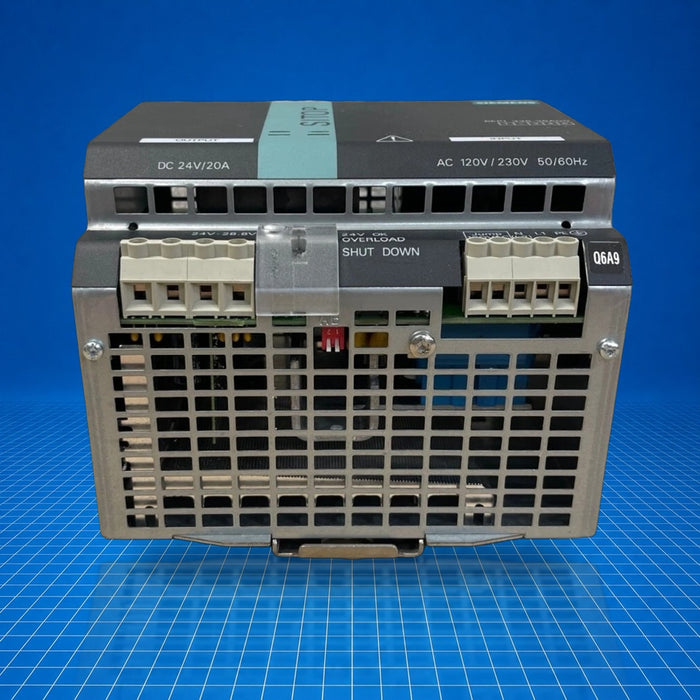

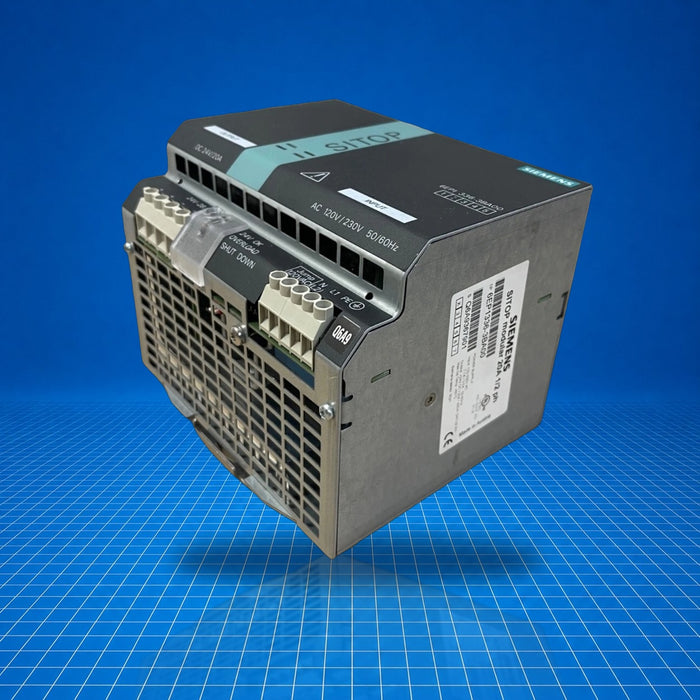

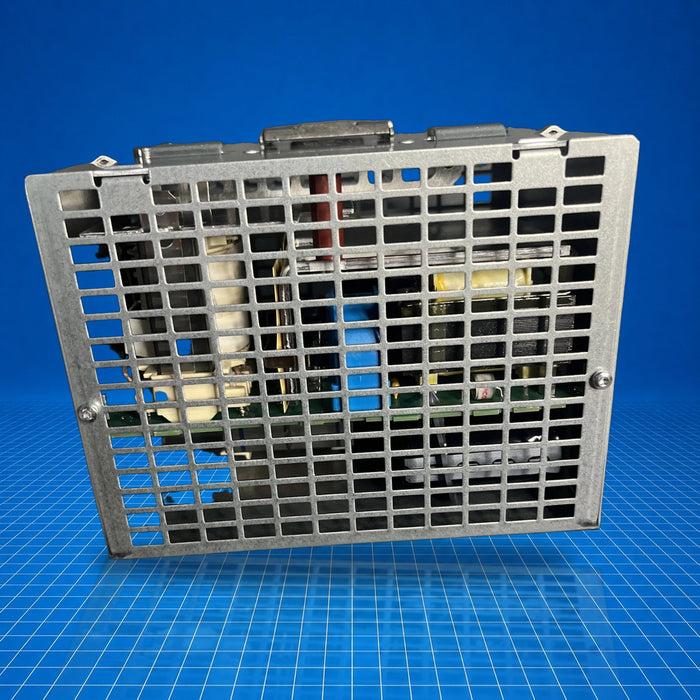

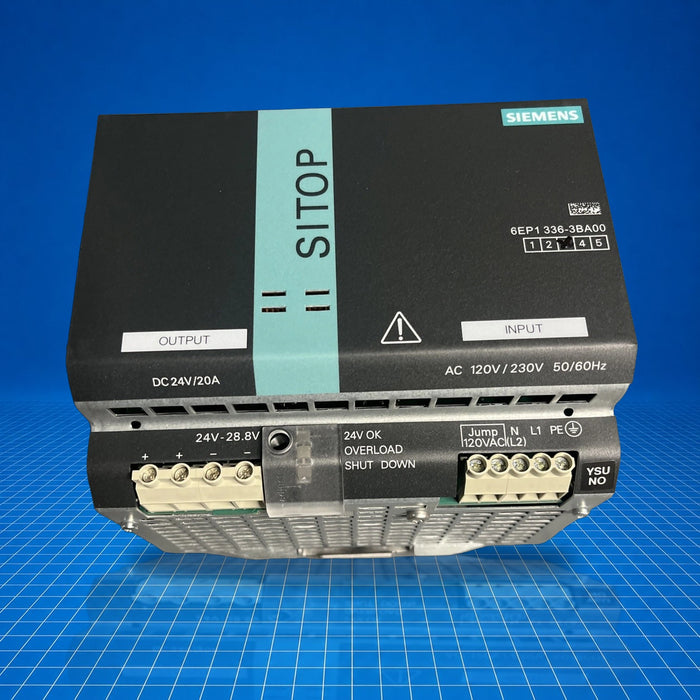

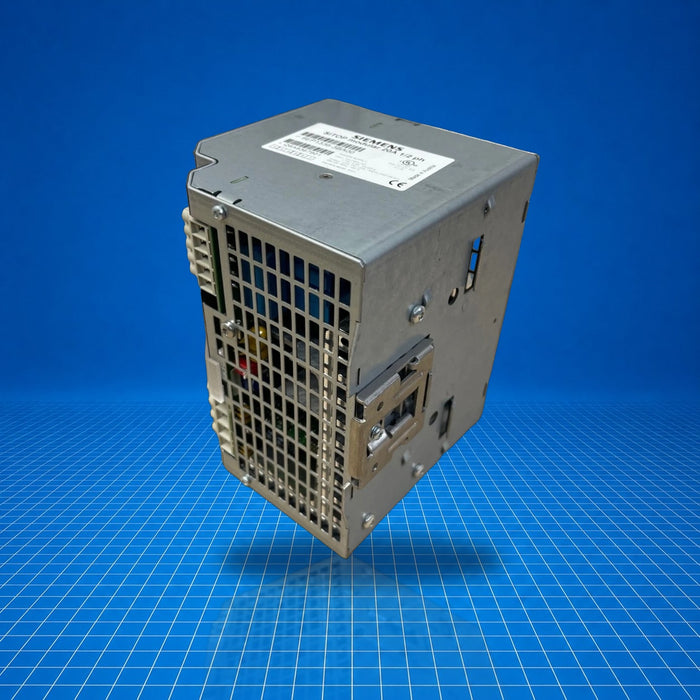

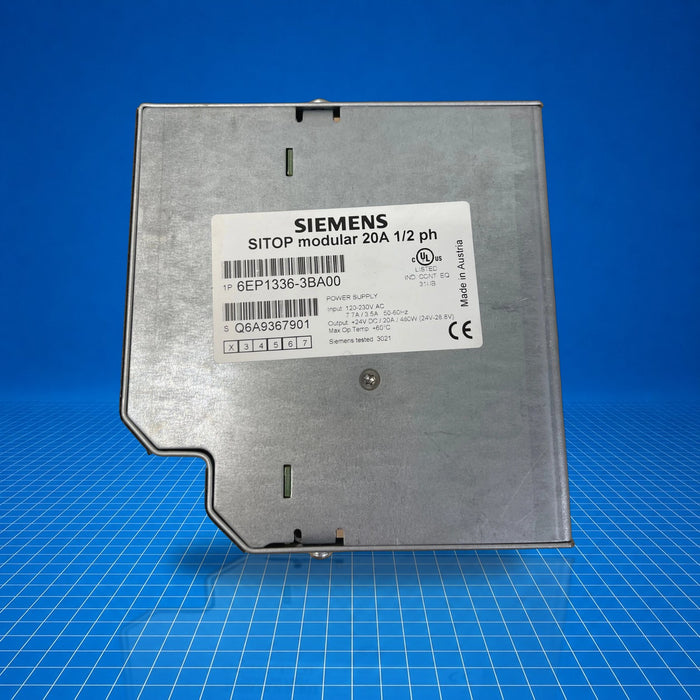

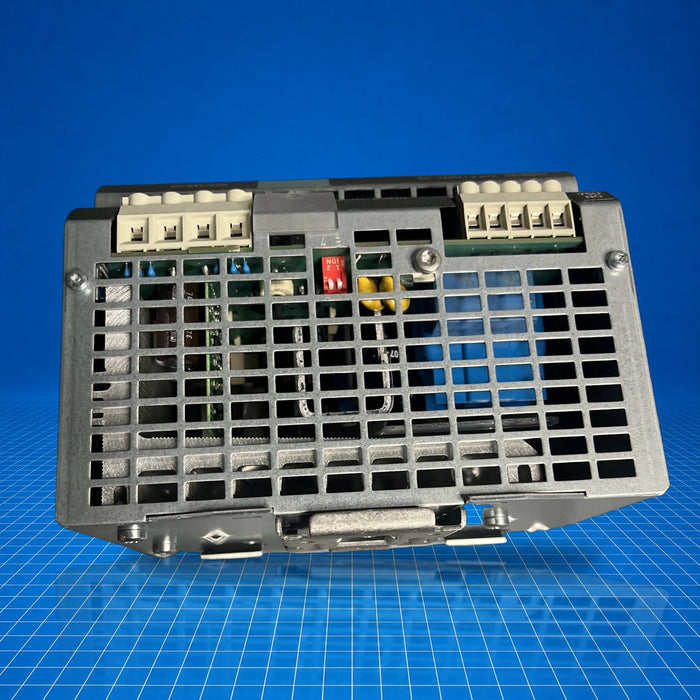

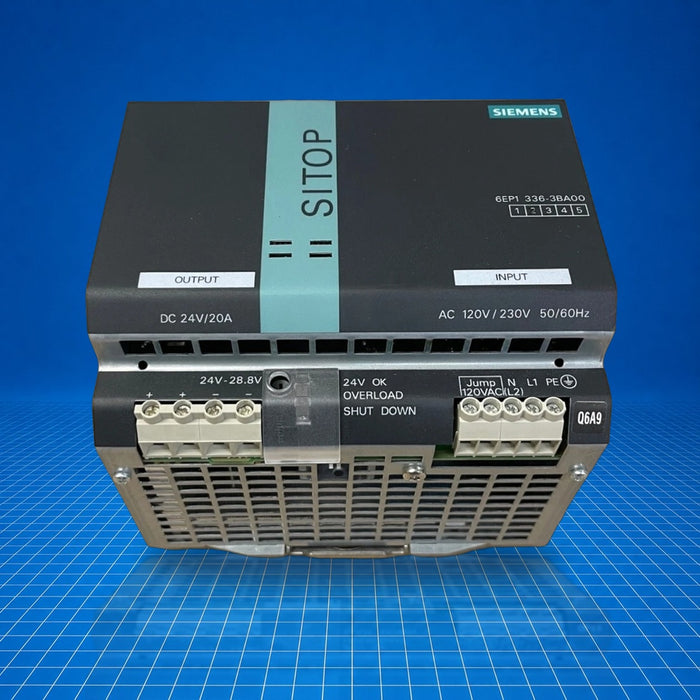

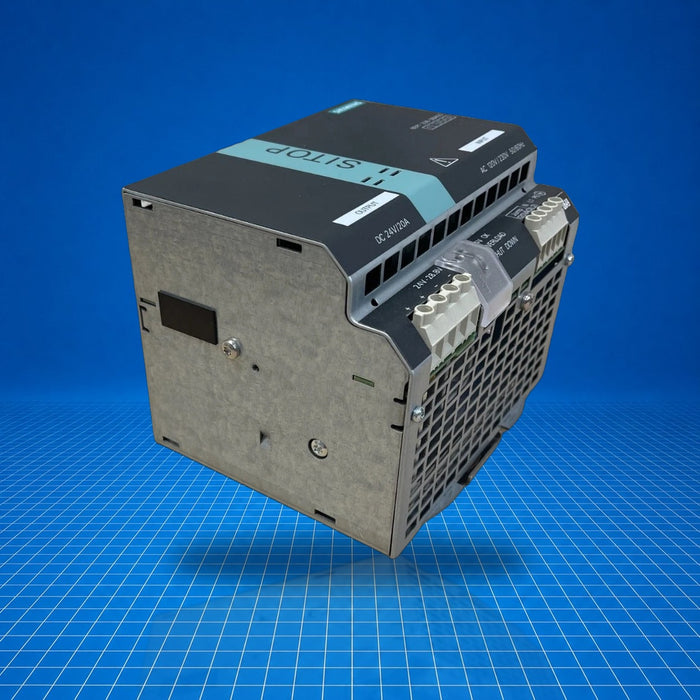

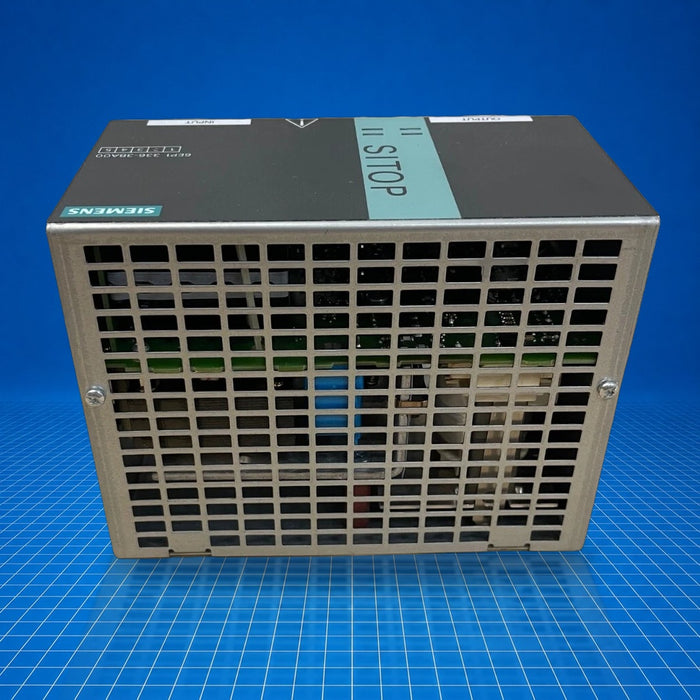

6EP1336-3BA00 Siemens

Name: 6EP1336-3BA00 Siemens
Brand: Siemens
SKU: 6EP1336-3BA00
Price: 400.0 USD
Availability: InStock

$374.97 - $400.00

$400.00

$374.97 - $400.00

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (10) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6EP1336-3BA00 is a SITOP Modular power supply module by Siemens providing a regulated 24 V DC output at up to 20 A from a single-phase AC input. It belongs to the SITOP Modular family and functions as a DIN-rail-mounted DC supply source in industrial control panels, ensuring regulated DC power for PLCs, HMI panels, relays, and general control circuits. The device supports jumper-selectable nominal AC input (120 V/230 V) and is appropriate for typical automation applications requiring stable 24 V power.

Best Suited For

Control panel DIN-rail power source
Powering 24 V DC programmable logic controllers
Supplying HMI and ancillary control devices
Critical load buffering during short mains interruption
Industrial automation maintenance replacement

Output current

20 A

Input voltage

85-132 V AC or 176-264 V AC

Output voltage adjustment

24-28.8 V via potentiometer

Buffer time at mains failure

20 ms (at Vin = 230 V)

Efficiency / power loss

89 % / 59 W typical

Technical Specifications

I/O & Electrical

Input voltage range

85-132 V AC or 176-264 V AC (jumper-selectable 120 V/230 V)

Output voltage

24 V DC nominal (adjustable 24-28.8 V via potentiometer)

Output current

20 A

Buffering time

20 ms at rated current, Vin = 230 V

Residual ripple (max/typ)

100 mV / 30 mV

Efficiency / power loss

89 % efficiency, 59 W loss typical

Communication & Power

Inrush current limit

60 A maximum at 25 °C

Overvoltage capability

2.3× Vin rated for 1.3 ms

Input current

7.7 A at 120 V, 3.5 A at 230 V

Power loss

59 W typical

Physical & Environmental

Ambient temperature (operation)

0 … 70 °C

Ambient (transport/storage)

-40 … +85 °C

Mounting

DIN-rail EN 60715 35×7.5/15

Weight

2.2 kg

Housing dimensions

160 × 125 × 125 mm

Certifications

ULUREU Declaration of ConformityUK Declaration of ConformityChina RoHSEPD Type II/III

Compliance includes UL, UR, EU and UK Declarations of Conformity, China RoHS, and EPD Type II/III environmental product declaration. ATEX, CE, RCM not explicitly listed for this variant.
