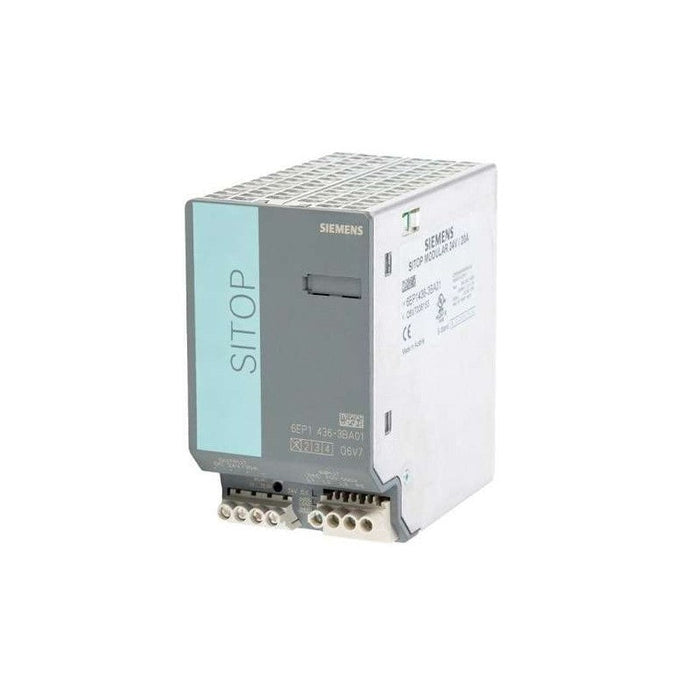

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP1436-3BA01 Siemens
Original price
$0.00
-
Original price
$871.72
Original price
$871.72
$0.00
-
$871.72
Current price
$871.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6EP1436-3BA01 is a SITOP modular 3-phase AC stabilized power supply, providing regulated 24 V DC at up to 20 A output. It integrates into SITOP modular platforms for industrial control power systems. In a control architecture, it supplies downstream 24 V logic, relay, and sensor loads. It is suitable for applications such as machine control panels, distributed automation racks, backup power buffering, and marine or industrial environments requiring parallel redundancy.
Best Suited For
- Distributed 24 VDC control rails
- Parallel-redundant power architectures
- Industrial and marine switchgear
- Control cabinet power buffering
Input voltage range
400 - 500 V AC (3-phase)
Output voltage
24 V DC (adjustable to 28.8 V)
Output current
20 A
Buffering time (power failure)
≥ 6 ms
Efficiency (typical)
90 %
Technical Specifications
I/O & Electrical
Input voltage range
min 400 V, max 500 V AC (3-phase)
Line frequency
47 - 63 Hz
Input current
1.1 A @ 400 V; 0.9 A @ 500 V
Inrush current limit
35 A (max, 25 °C)
I²t value
0.7 A²·s (max)
Output voltage
24 V DC (adjustable 24 - 28.8 V)
Output current rated
20 A
Derating above +60 °C
2 % per K
Buffering time
min 6 ms at Vin = 400 V
Communication & Power
Power loss
53 W (typical)
Efficiency
90 % (typical)
Output ripple (max)
100 mV
Output voltage overshoot
None (soft-start)
Response delay max
2.5 s
Physical & Environmental
Protection class
IP20
Galvanic isolation
Yes; SELV (IEC 62368-1)
Operating temperature
0 … 70 °C
Mounting
Control cabinet (DIN rail or screw-mounting)
Parallel operation
Up to 2 units; switchable characteristic
Certifications
CEUL ListedUKCAEACRCMABSDNV
CE, UL-Listed (UL 508, File E197259), UKCA, EAC, RCM; maritime class approvals: ABS and DNV.
