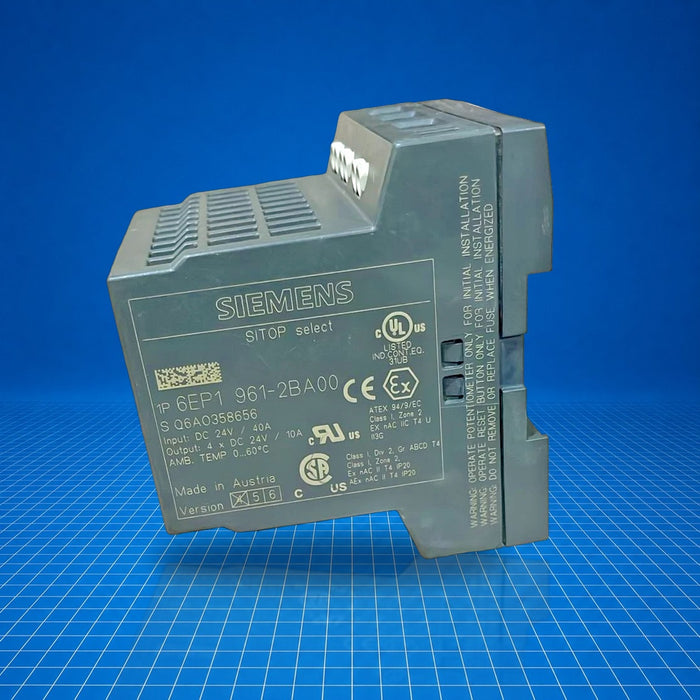

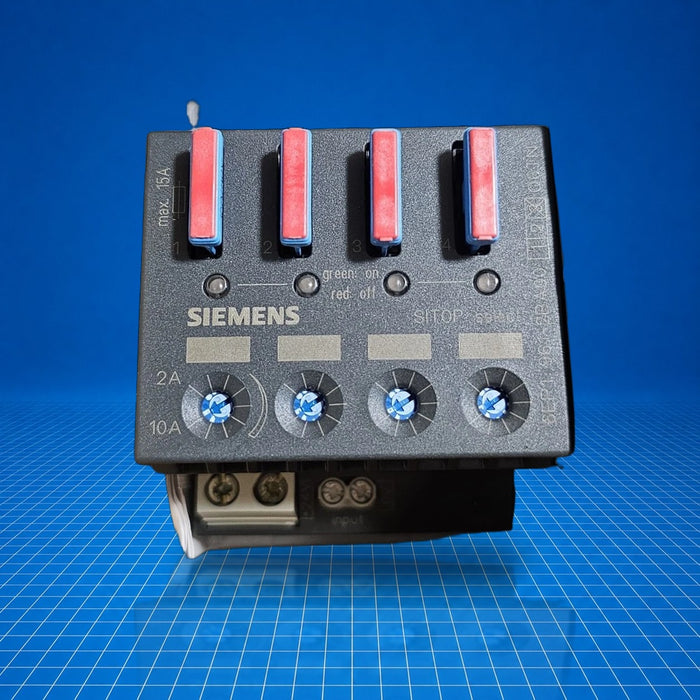

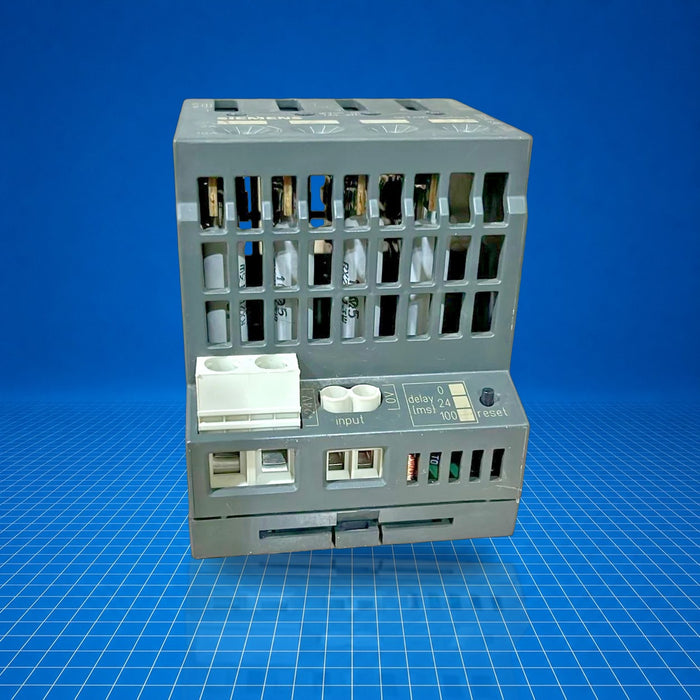

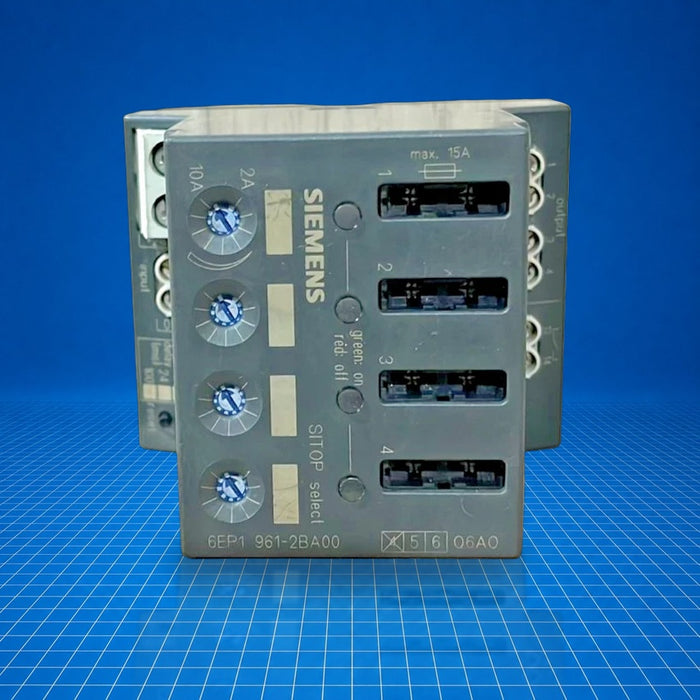

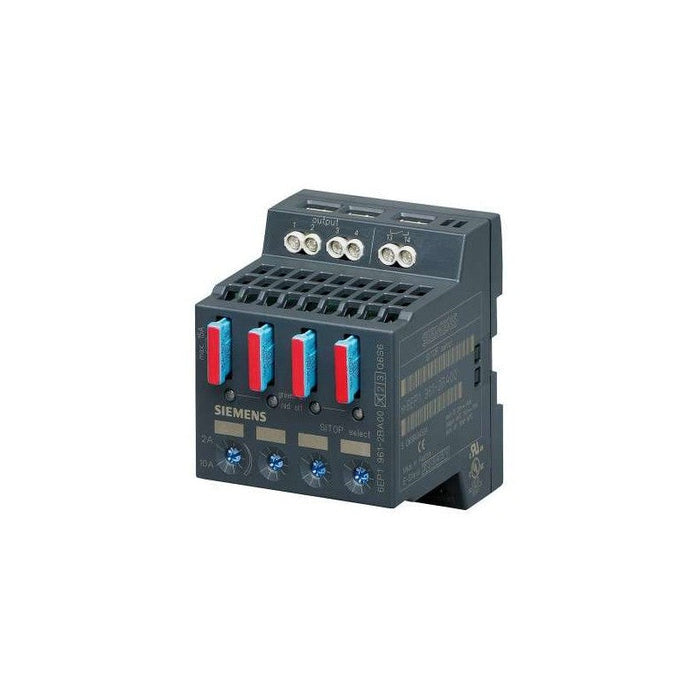

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP1961-2BA00 Siemens
Original price
$316.80
-
Original price
$359.85
Original price
$316.80
$316.80
-
$359.85
Current price
$316.80
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6EP1961-2BA00 is a SITOP SELECT diagnostics module, part of the SITOP PSE200U selectivity module family. It accepts a 24 V DC supply and distributes it across four individually monitored output channels, each adjustable between 2 A and 10 A. It integrates overcurrent diagnostic capability and delay configuration, making it suitable for managing and protecting downstream loads in modular industrial power distribution systems.
Best Suited For
- Modular 24 V DC control power distribution
- Selective overcurrent protection per channel
- Diagnostics-enabled power segmentation
- DIN-rail system installations
Input voltage range
22…30 V DC
Number of outputs
4
Max output current per channel
10 A
Efficiency (typical)
97 %
Weight
0.4 kg
Technical Specifications
I/O & Electrical
Input voltage range
22…30 V DC
Overvoltage withstand
35 V for 100 ms
Input current at rated voltage
40 A
Number of outputs
4
Max output current per channel (≤ 60 °C)
10 A
Adjustable trip threshold
2…10 A
Communication & Power
Voltage drop (typical)
Vin - approx. 0.3 V
Efficiency
97 %
Power loss (typical)
30 W
Physical & Environmental
Ambient operating temperature
0…60 °C
Storage/transport temperature
-40…+85 °C
Protection class
IP20
Dimensions (W × H × D)
72 × 90 × 90 mm
Mounting
DIN-rail EN 60715 (35×7.5/15)
Net weight
0.4 kg
Blade fuses included
4 × 15 A
Certifications
CEUL-RecognizedcULus-ListedUKCAEAC
CE; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259; UKCA; EAC. Emission immunity per EN 55022 Class B, EN 61000-6-2.
