Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

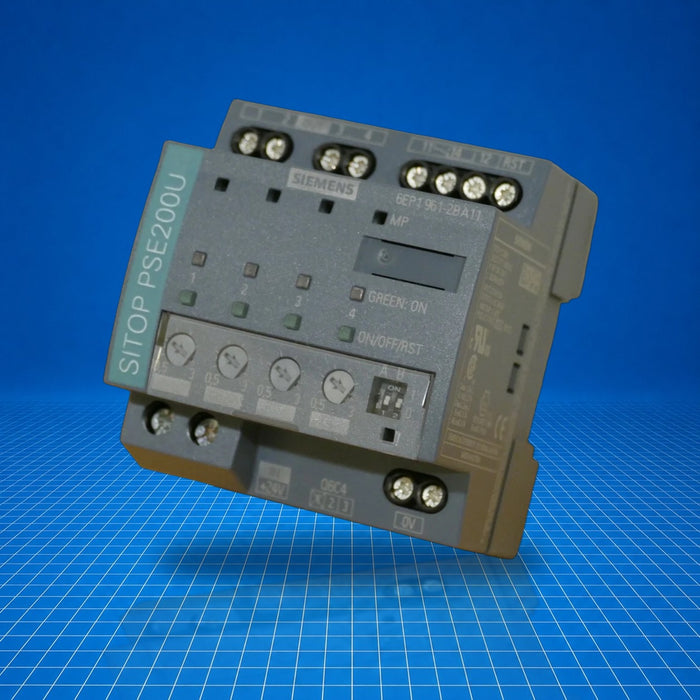

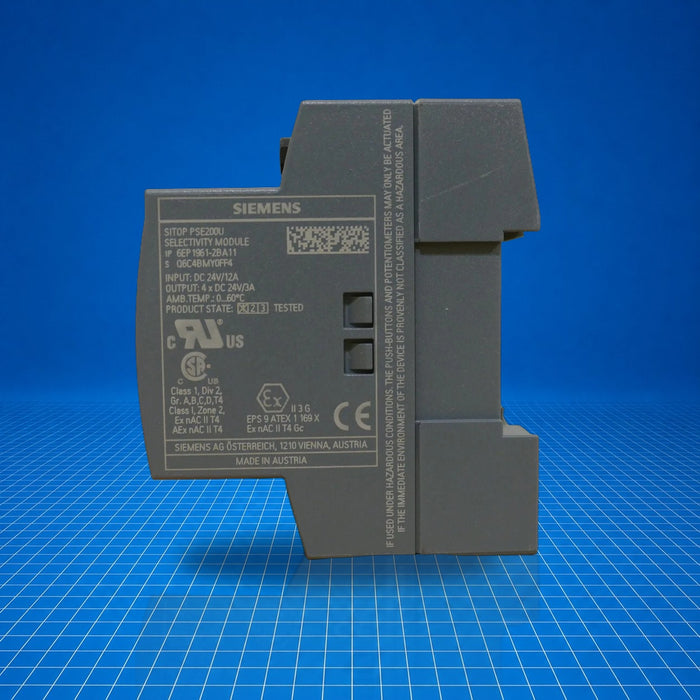

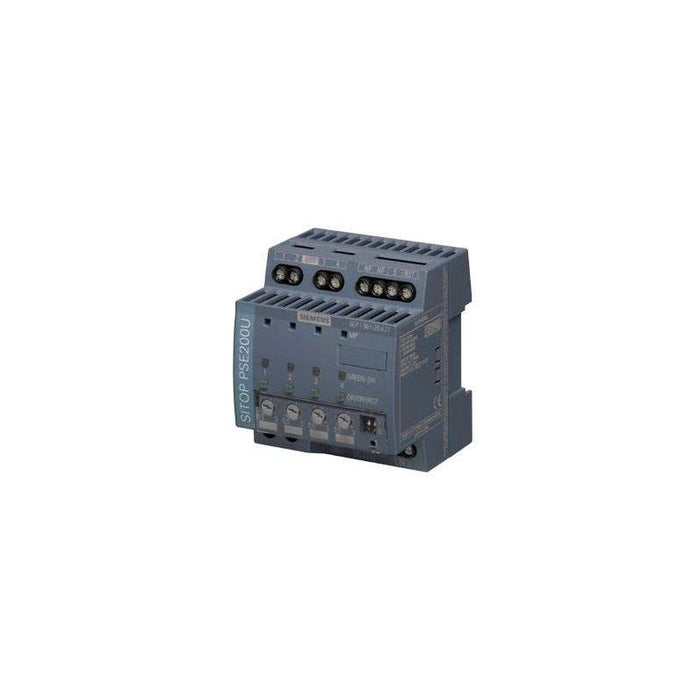

The 6EP1961-2BA31 is a Siemens SITOP PSE200U selectivity module designed for subdividing and protecting 24 V DC power rails in industrial control systems. It accepts a 24 V DC input and provides four independent output channels, each adjustable between 0.5 - 3 A, enabling selective overload protection. The module features per-channel status indication and configurable output sequencing, making it suitable for distributed power applications, machinery protection, and segmented control cabinets. The 6EP1961-2BA31 supports modular, fail-safe designs in automated environments.
Best Suited For
- Segmented 24 V DC power distribution
- On-machine control sections with overload isolation
- Applications requiring adjustable per-channel current protection
- Systems with selective power-up sequencing
Input voltage range
22 - 30 V DC
Number of outputs
4
Adjustable current per output
0.5 - 3 A
Efficiency
97 %
Weight
0.170 kg
Technical Specifications
I/O & Electrical
Input voltage range
22 - 30 V DC
Rated input voltage
24 V DC
Input current at 24 V
12 A
Overvoltage capability
35 V (100 ms)
Number of outputs
4
Output voltage
Vin - approx. 0.2 V
Adjustable output current
0.5 - 3 A per output
Efficiency
97 %
Power loss
9 W (typical at rated load)
Communication & Power
Status indicators
Three-color LED per output (green/yellow/red)
Remote reset input
Non-isolated 24 V input (>15 V high)
Physical & Environmental
Weight
0.170 kg
Packaging dimensions
8.20 × 8.80 × 7.70 cm
