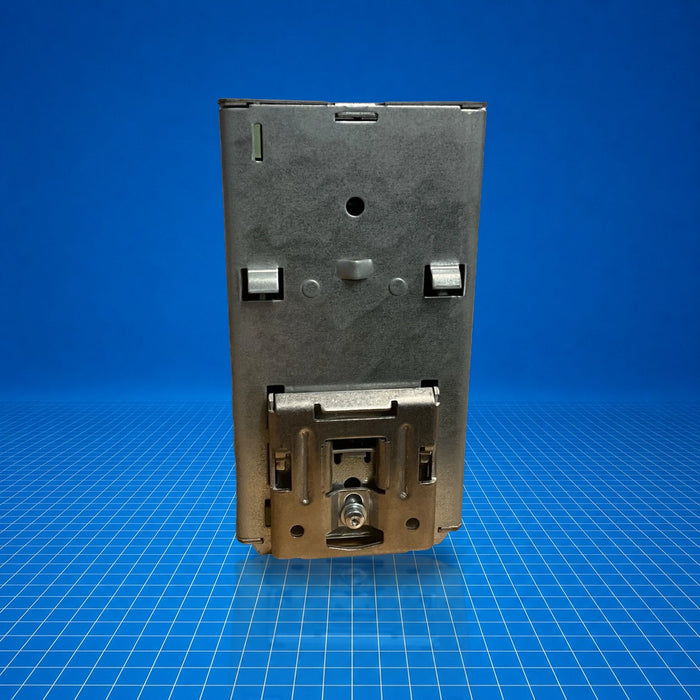

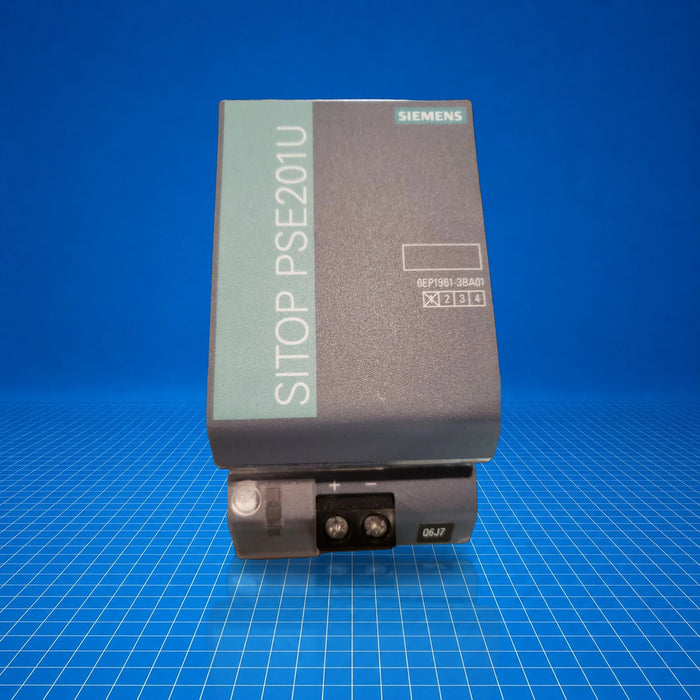

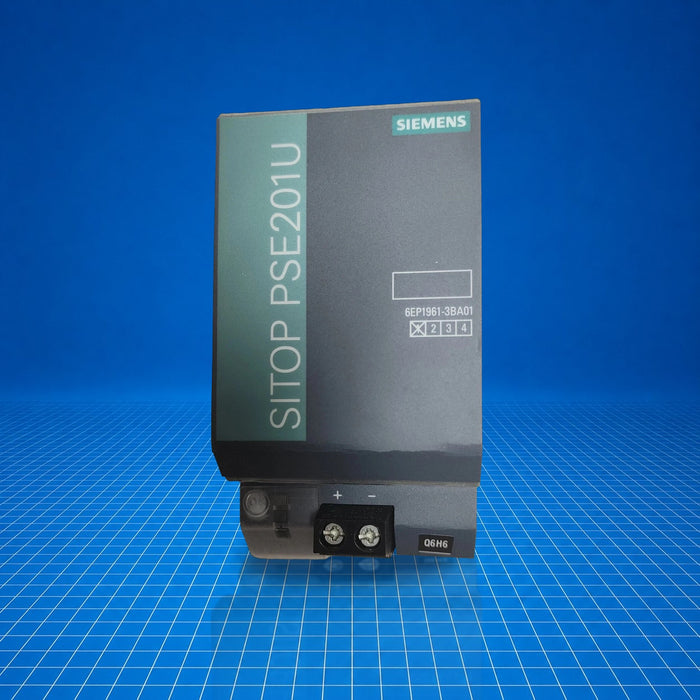

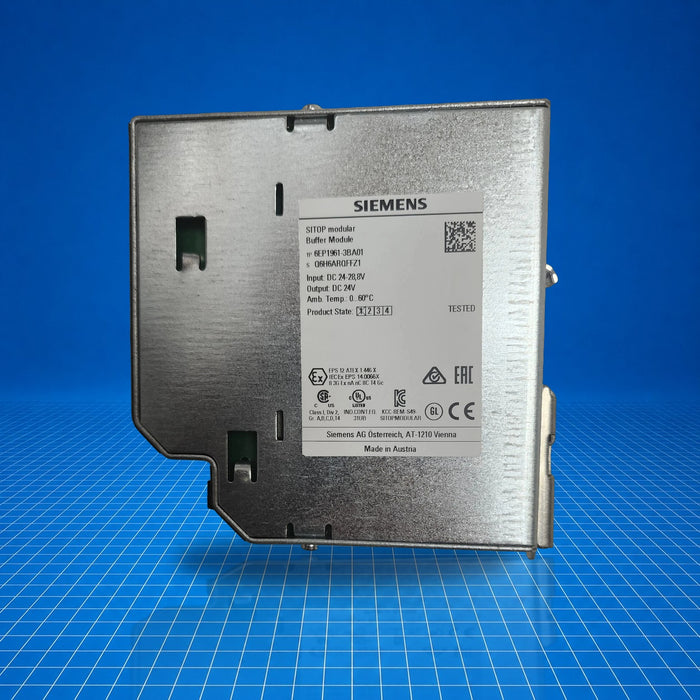

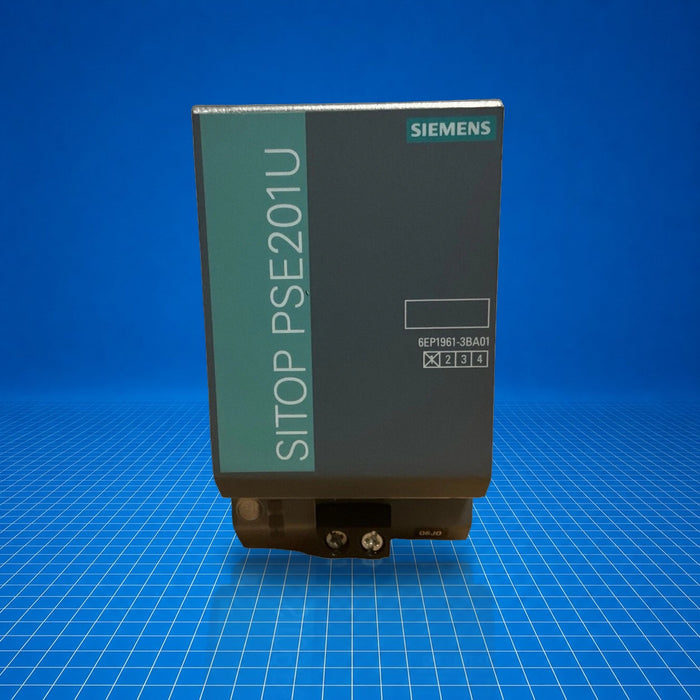

6EP1961-3BA01 Siemens
Original price
$400.00
-
Original price
$425.43
Original price
$400.00
$400.00
-
$425.43
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

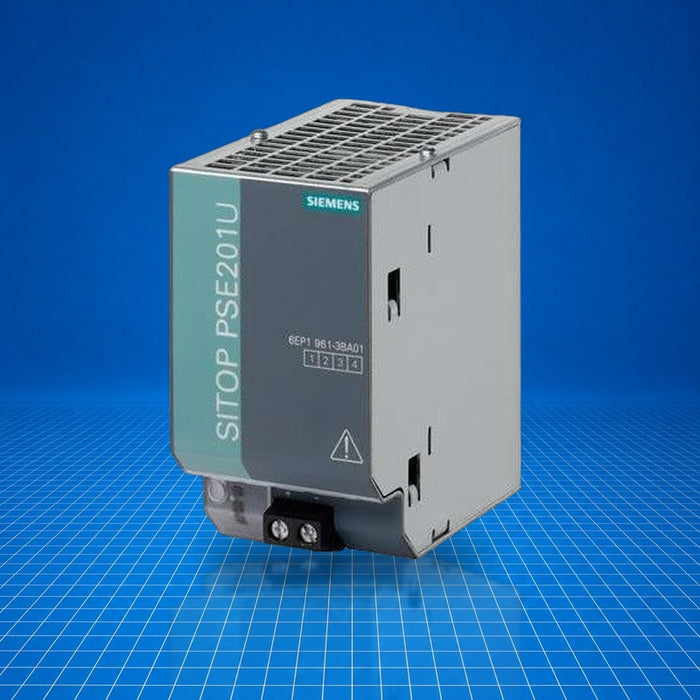

The 6EP1961-3BA01 is a DIN-rail-mount buffer module in Siemens' SITOP PSE201U family. It provides a short hold-up time (buffer) on 24 V DC power rails to maintain system voltage during brief interruptions. Supporting up to 40 A of output current, it is used to bridge short power failures in automation control systems, such as PLC racks, distributed I/O, and safety power circuits.
Best Suited For
- Bridging short power interruptions in 24 V control systems
- Maintaining PLC and I/O operation during supply faults
- Integration into SITOP smart/modular power architectures
- DIN-rail mounting in control panels
- High-current 24 V buffer for critical loads
Backup time @ 40 A
200 ms
Input voltage range
24 … 28.8 V DC
Output current (rated)
40 A
Protection class / IP rating
Class III / IP20
Operating temp.
-25 °C … +60 °C
Technical Specifications
I/O & Electrical
Input voltage range
24 … 28.8 V DC
Output current (rated)
40 A
Buffer time (at 40 A)
200 ms
Communication & Power
Status indicator
Green LED "supply voltage > 20.5 V"
Physical & Environmental
Mounting
DIN-rail EN 60715 35 × 7.5/15
Dimensions (W × H × D)
70 × 125 × 125 mm
Weight
1.2 kg
Operating temperature
-25 °C … +60 °C
Storage temperature
-40 °C … +85 °C
Humidity
≤ 95 % non-condensing
Certifications
SELV according to EN 60950-1; CE; UL-Listed (UL 508), CSA (C22.2 No. 14, No. 107.1); cCSAus (C22.2 No. 62368-1, UL 62368-1); EAC; SEMI F47; EMI EN 55022 Class B; EMS EN 61000-6-2.
