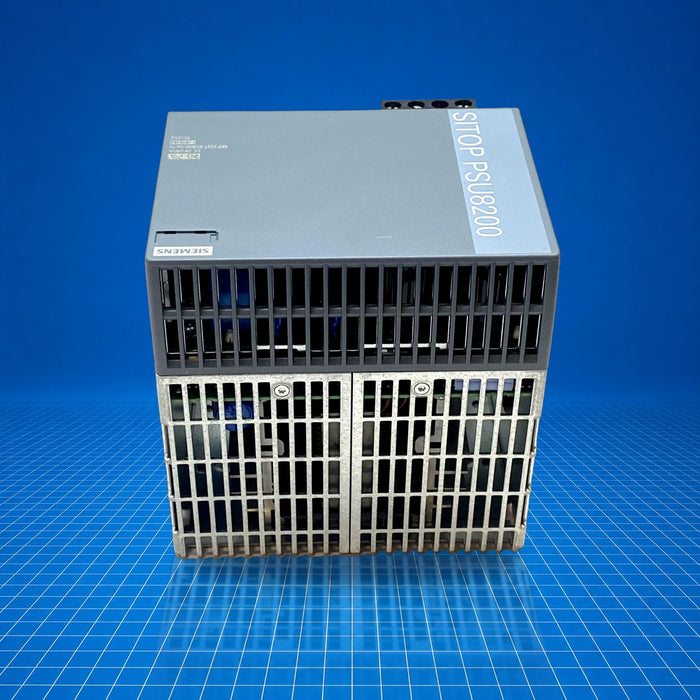

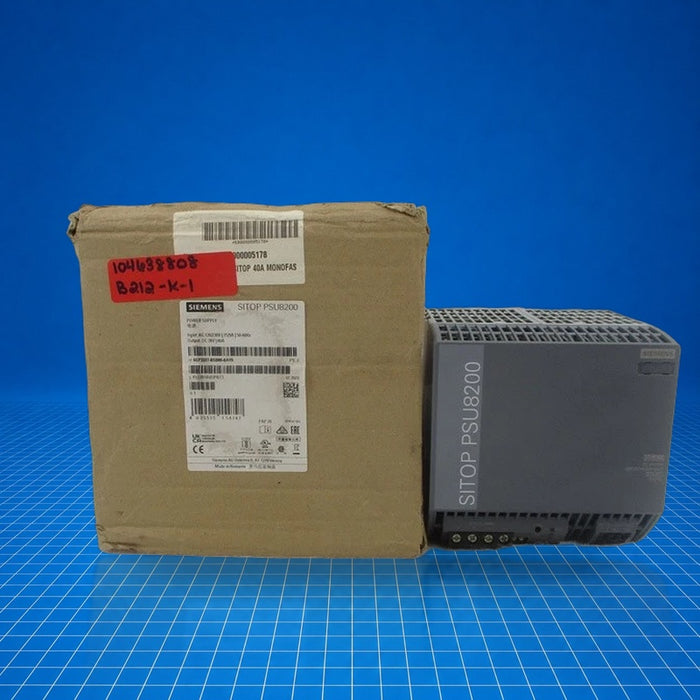

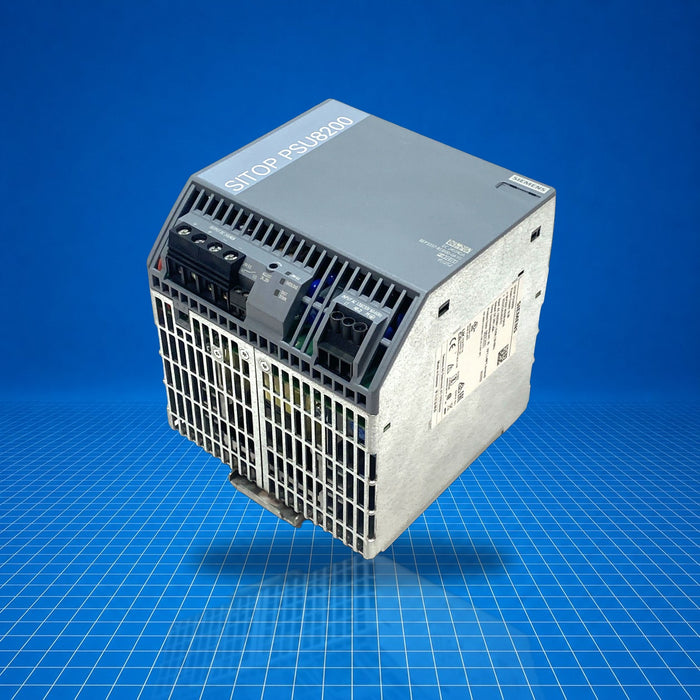

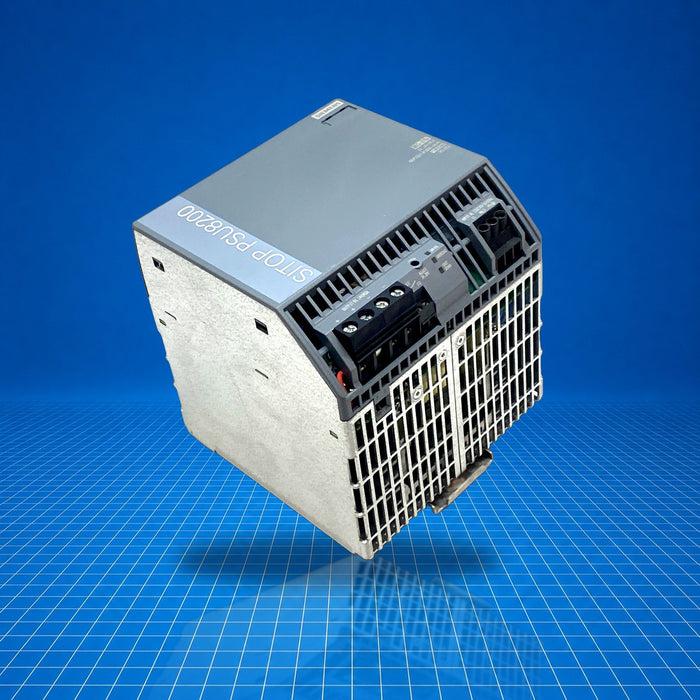

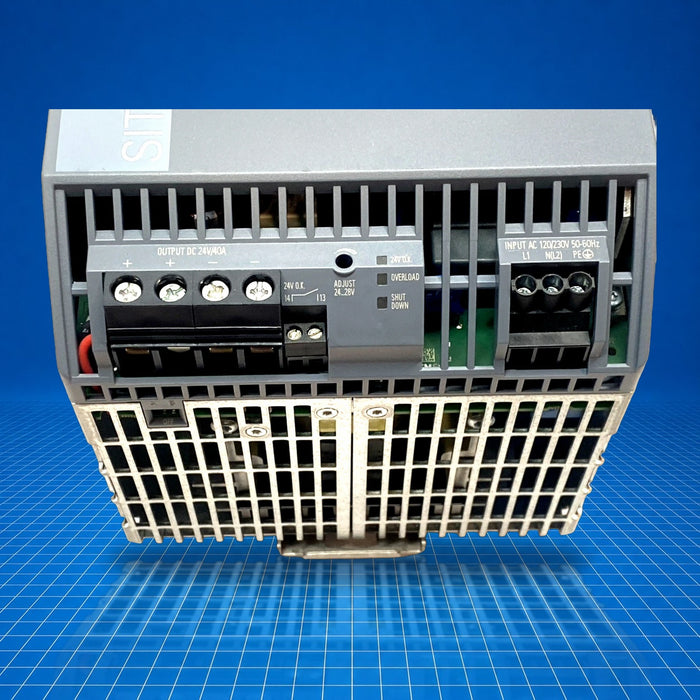

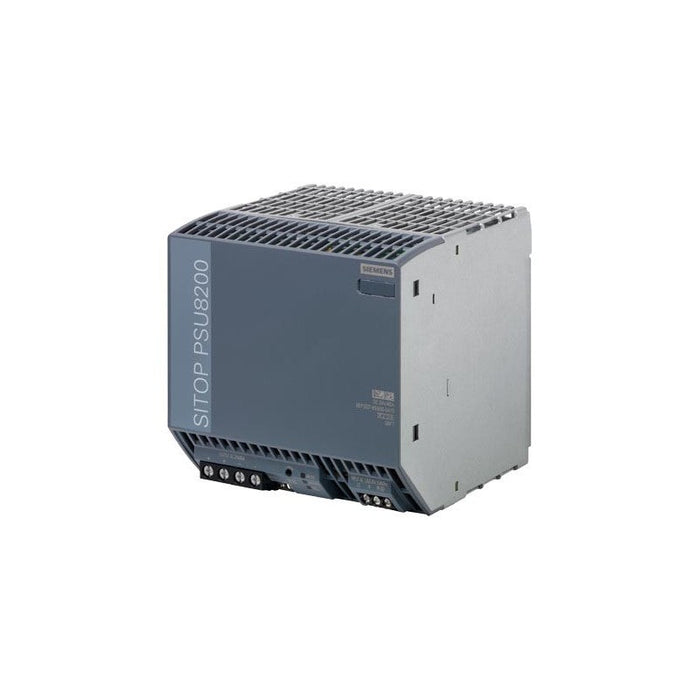

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6EP3337-8SB00-0AY0 Siemens
Original price
$824.86
-
Original price
$1,487.50
Original price
$824.86
$824.86
-
$1,487.50
Current price
$824.86
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6EP3337-8SB00-0AY0 is a SITOP PSU8200 family single-phase AC/DC stabilized power supply, providing a regulated 24 V DC output at up to 40 A. Integrated into control systems, it converts standard 120/230 V AC mains into dependable 24 V DC power for logic, sensors, actuators, or I/O modules. Its design supports buffered output, soft-start, and parallelable operation, making it suited for industrial automation panels, machine controls, and process systems.
Best Suited For
- DIN-rail installation in control cabinets
- Backup buffering during brief power interruptions
- Feeding 24 V DC PLCs, sensors, and actuators
- Parallel operation to scale current capacity
Output voltage
24 V DC
Rated current
40 A
AC input range
85…132 V or 170…264 V, automatic 120/230 V selection
Buffering time
≥ 25 ms at rated current
Soft-start and parallelable
Yes
Technical Specifications
I/O & Electrical
Output voltage
24 V DC
Rated current
40 A
Output adjustable
24…28 V via potentiometer
Residual ripple (max/typ)
100 mV / 50 mV
Inrush current max
50 A
Buffering time ≥
25 ms at Vin = 230 V
Soft-start
Yes
Parallelable
Yes (2 units)
Communication & Power
AC input voltage
85…132 V or 170…264 V (automatic selection 120/230 V)
Input current (120 V)
15 A
Input current (230 V)
9 A
Line frequency
50/60 Hz (45…65 Hz)
Physical & Environmental
Weight
3.100 kg
Packaging dimensions
22.50 × 22.00 × 18.50 cm
Certifications
ULChina RoHSRCM
UL, China RoHS, EU Declaration of Conformity, RCM compliance; RoHS and REACH substance information available.
