Product Overview

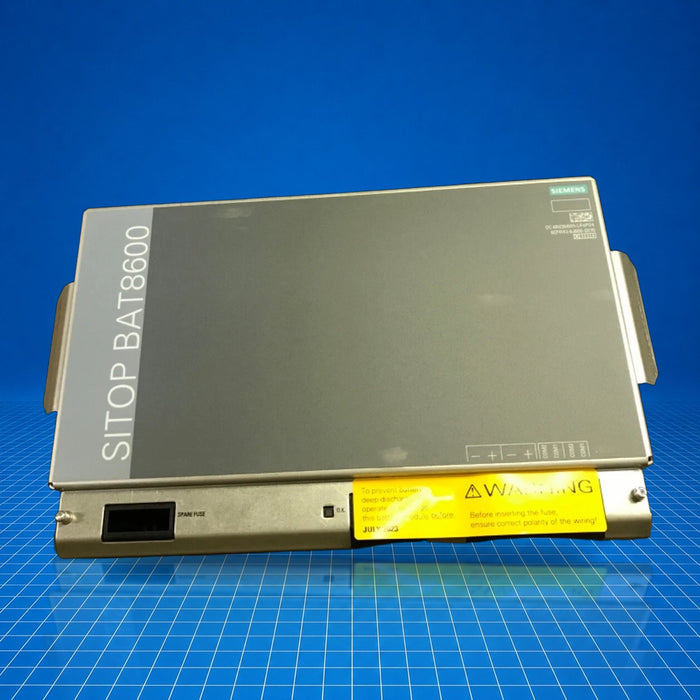

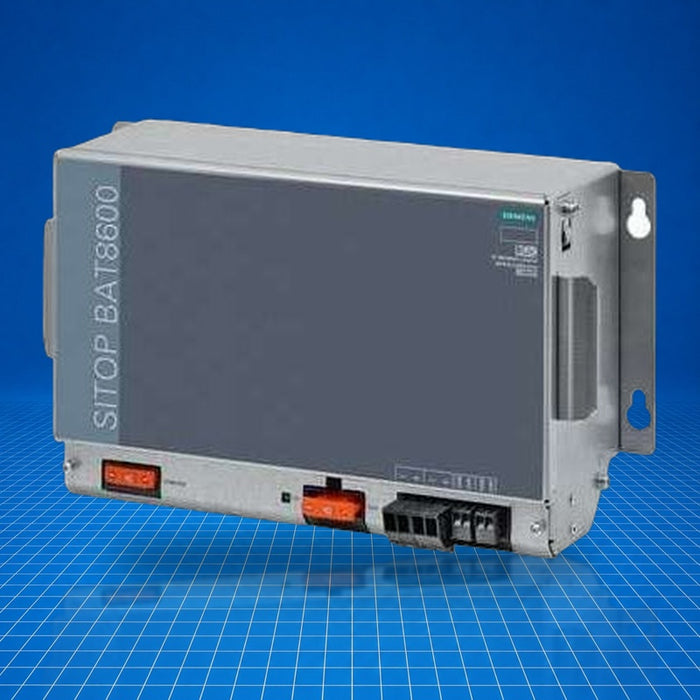

The Siemens part 6EP4143-8JB00-0XY0 is a SITOP BAT8600 LiFePO₄ battery module designed for use with the UPS8600 uninterruptible power supply system, offering energy buffering during power interruptions. As part of the UPS module family, it delivers 264 Wh of stored energy (LiFePO₄ chemistry), providing a 48 V DC output. It supports parallel operation of up to five modules and is employed in industrial control applications requiring maintained DC power during transient outages, such as automation cells and critical control panels.
Best Suited For
- Temporary backup power for UPS8600 in control cabinets
- Parallel-install buffering for extended runtime
- On-machine power hold-up in case of mains dropout
- Energy storage in distributed automation systems
Energy content
264 Wh
Rated output current
20 A
Input voltage range
42 - 58 V DC
Operating temperature
-10 … 50 °C
Technical Specifications
I/O & Electrical
Rated input voltage
48 V DC
Input voltage range
42 - 58 V DC
Rated input current
2.5 A
Rated output voltage
48 V DC
Rated output current
20 A
Flat fuse
40 A, 58 V DC, 1000 A (IR), MAXI (Littelfuse 0999040.ZXN)
Communication & Power
Energy content
264 Wh
Parallel modules max.
5
Charging voltage
56 V
Charging current limit
2.5 A
Minimum charging time
12 h
Physical & Environmental
Dimensions (W × H × D)
322 × 187.3 × 110.2 mm
Weight
6.5 kg
Operating temperature
-10 … 50 °C
Storage temperature
-40 … 35 °C
Transport temperature (≤2 weeks)
-40 … 80 °C
Pollution degree
2
Cooling
Natural convection
