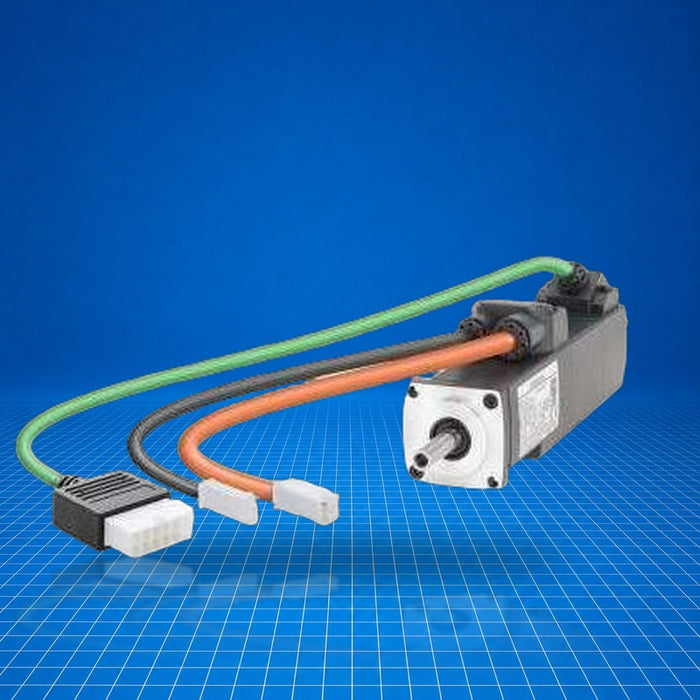

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

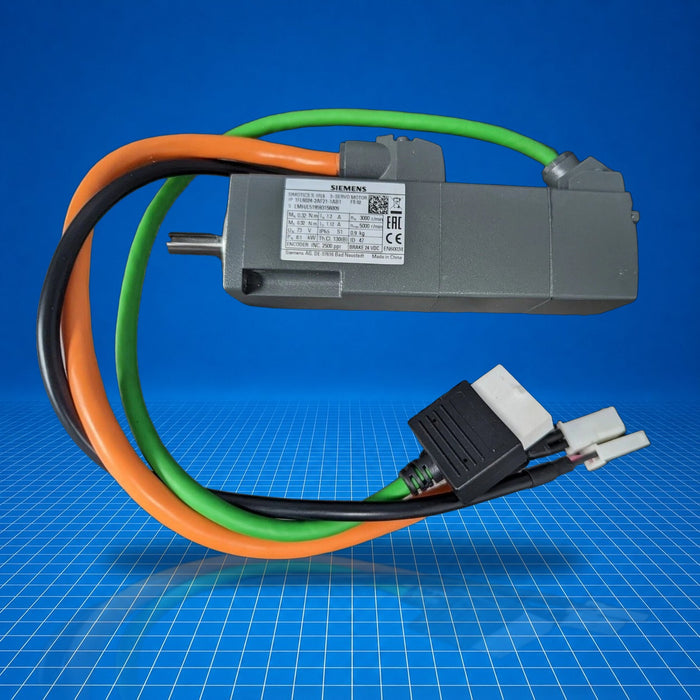

1FL6024-2AF21-1AB1 Siemens
Original price
$0.00
-
Original price
$1,210.00
Original price
$1,210.00
$0.00
-
$1,210.00
Current price
$1,210.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMOTICS S-1FL6 servomotor (Part number 1FL6024-2AF21-1AB1) is a low-inertia, permanent-magnet synchronous motor designed for closed-loop motion and torque control. It integrates an incremental encoder (TTL, 2500 S/R) for position feedback and operates in conjunction with converters such as the SINAMICS V90. Typical roles include positioning, indexing, and speed regulation in machine tools, packaging, robotics, and general motion-control environments.
Best Suited For
- Integration with SINAMICS V90 servo drives
- High-precision positioning tasks
- Compact motion applications requiring low inertia
- Industrial automation systems with IP65 protection
- Machine tool axis control
Rated power
0.10 kW
Rated torque
0.32 Nm
Maximum speed
5 000 r/min
Degree of protection
IP65
Encoder
Incremental TTL, 2 500 S/R (13 bit)
Technical Specifications
I/O & Electrical
Rated current
1.2 A
Maximum current
3.6 A
Rated power
0.10 kW
Rated torque
0.32 Nm
Maximum torque
0.96 Nm
Torque constant
0.29 Nm/A
Communication & Power
Motor type
Permanent-magnet synchronous motor
Physical & Environmental
Net weight
0.90 kg
Ambient operating temperature
0 … 40 °C
Relative humidity maximum
90 % RH at 30 °C (no condensation)
Degree of protection
IP65
Moment of inertia
0.059 kg cm²
Thermal class
B (130 °C)
Encoder resolution
2 500 S/R (13 bit)
Shaft height
20 mm
Cooling
Natural cooling
Certifications
CEEAC
Complies with standards CE and EAC.
