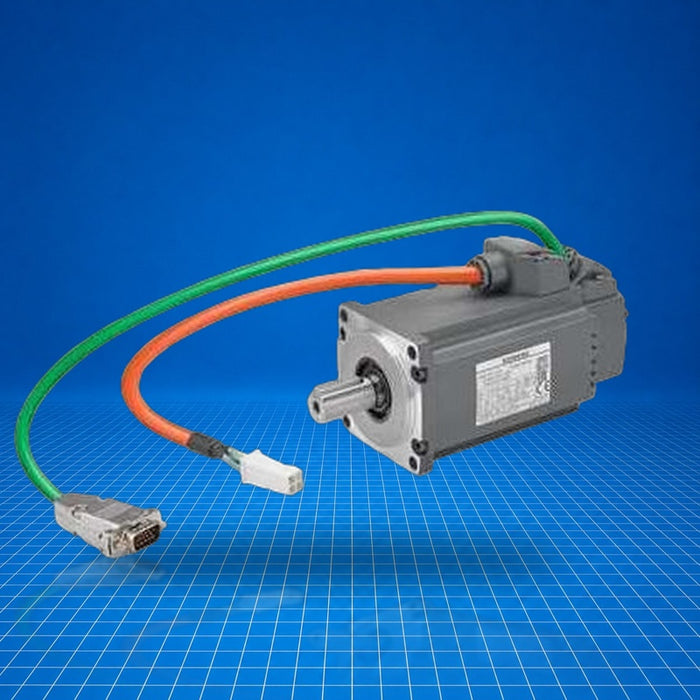

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1FL6032-2AF21-1LG1 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMOTICS S-1FL6 servomotor, part number 1FL6032-2AF21-1LG1, is a low-inertia, permanent-magnet synchronous motor intended for use with SINAMICS V90 servo drives. It delivers a rated power of 0.20 kW at 3,000 rpm and a rated torque of 0.64 Nm, and features a 20-bit absolute (12-bit multi-turn) encoder. Designed for industrial motion control, it is well suited for applications requiring precise positioning, compact form factor, and compatibility with SINAMICS V90 systems.
Best Suited For
- Sinamics V90 servo drive integration
- Compact motion control systems
- Position-sensitive automation tasks
- Low-inertia dynamic applications
Rated power
0.20 kW
Rated speed
3,000 rpm
Rated torque
0.64 Nm
Encoder
Absolute 20-bit (12-bit multi-turn)
Technical Specifications
I/O & Electrical
Rated power
0.20 kW
Rated torque
0.64 Nm
Rated speed
3,000 rpm
Rated current
1.4 A
Max. speed
5,000 rpm
Max. current
4.2 A
Communication & Power
Encoder system
Incremental encoder TTL, 2,500 S/R (13-bit)
Physical & Environmental
Moment of inertia
0.214 kg cm²
Torque constant
0.48 Nm/A
Thermal class
B (130 °C)
Ambient temperature, operation
0 … 40 °C
Relative humidity, max operation
90 % RH (no condensation at 30 °C)
Degree of protection
IP65
Net weight
1.00 kg
Certifications
CEEAC
Compliance with CE and EAC standards.
