Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

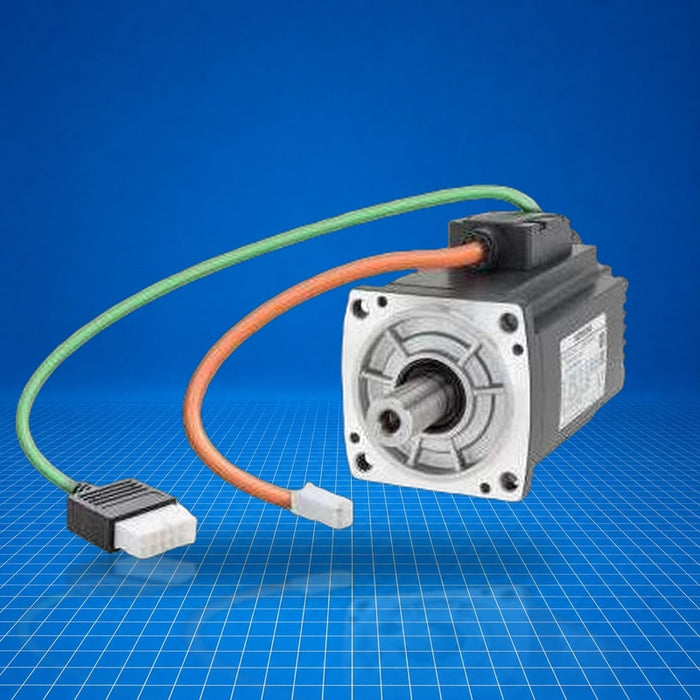

The Siemens part 1FL6044-2AF21-1AG1 is a SIMOTICS S-1FL6 low-inertia permanent-magnet synchronous servomotor, rated at 1.00 kW (1.36 hp) with a rated speed of 3 000 rpm and maximum speed of 5 000 rpm. This motor features an incremental encoder (TTL, 2 500 S/R, 13-bit), natural cooling, IP65 protection, and is compatible with SINAMICS V90 drives. It is typically deployed in industrial motion-control applications such as packaging machinery, small robot axes, and precise positioning systems. Part number 1FL6044-2AF21-1AG1.
Best Suited For
- Integration with SINAMICS V90 servo drives
- Low-inertia motion control axes
- Industrial positioning systems (e.g. Cartesian robots)
- High-dynamics packaging or assembly machines
Rated power
1.00 kW / 1.36 hp
Rated torque
3.18 Nm
Rated current
6.3 A
Max speed
5 000 rpm
Protection type
IP65
Technical Specifications
I/O & Electrical
Rated power
1.00 kW / 1.36 hp
Rated current
6.3 A
Max current
18.9 A
Rated torque
3.18 Nm
Max torque
9.54 Nm
Rated speed
3 000 rpm
Max speed
5 000 rpm
Communication & Power
Encoder system
Incremental encoder TTL, 2 500 S/R (13 bit)
Physical & Environmental
Motor type
Low-inertia permanent-magnet synchronous motor
Cooling
Natural cooling
Degree of protection
IP65
Ambient temperature (operation)
0 … 40 °C
Relative humidity
Max. 90 % RH (no condensation at 30 °C)
Net weight
3.40 kg
Certifications
CEEAC
Compliance with CE and EAC standards.
