1XP8001-1 Siemens
Original price
$2,734.20
-
Original price
$3,184.90
Original price
$3,184.90
$2,734.20
-
$3,184.90
Current price
$3,184.90
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

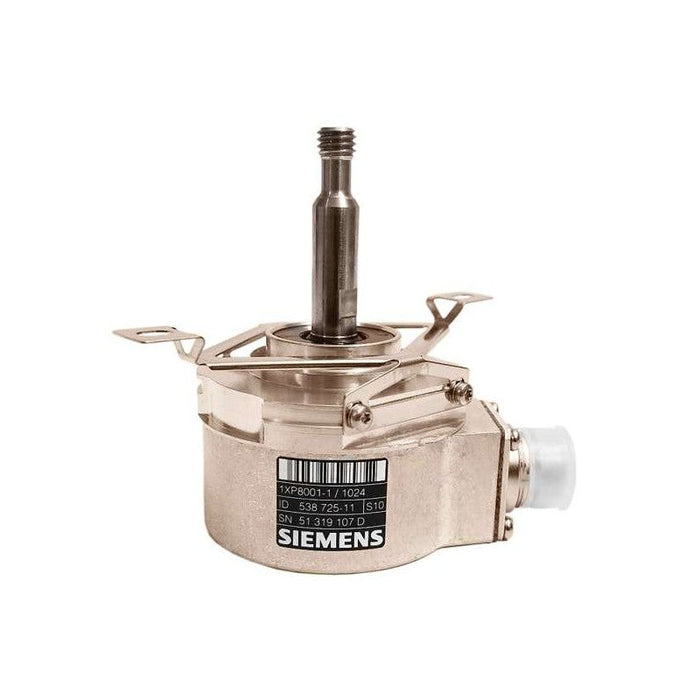

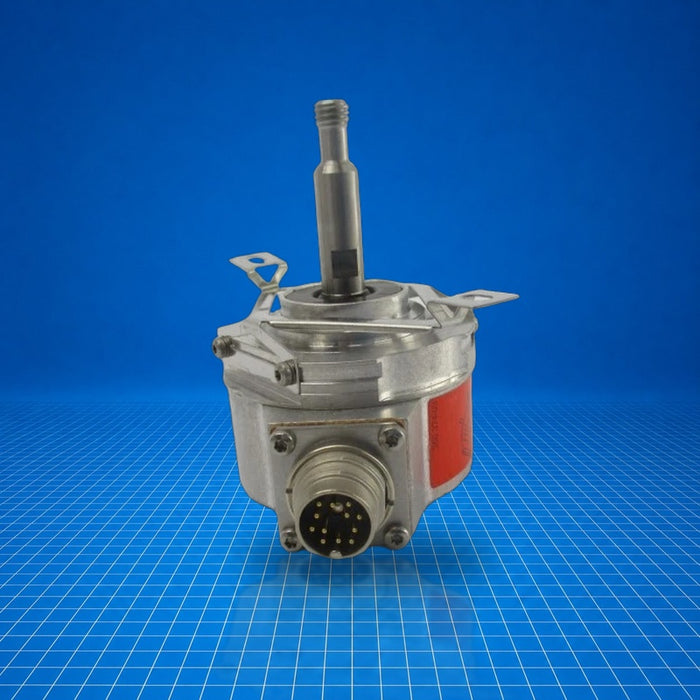

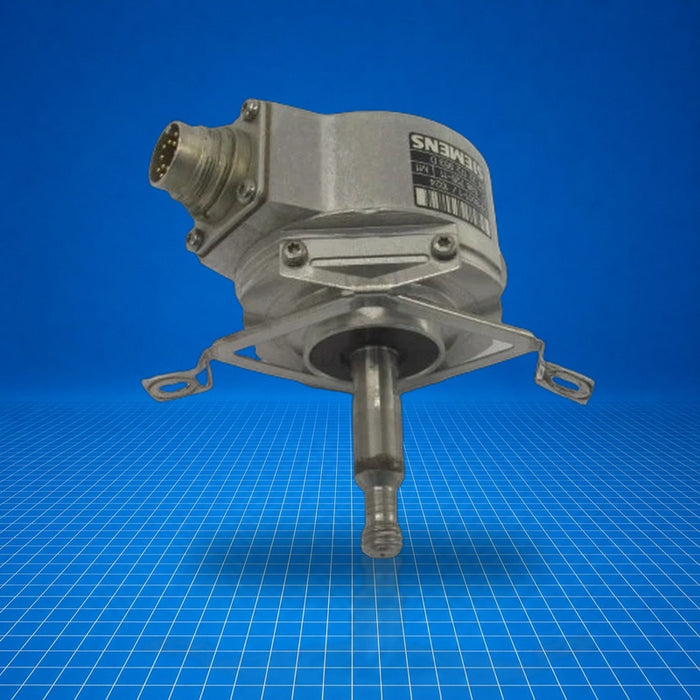

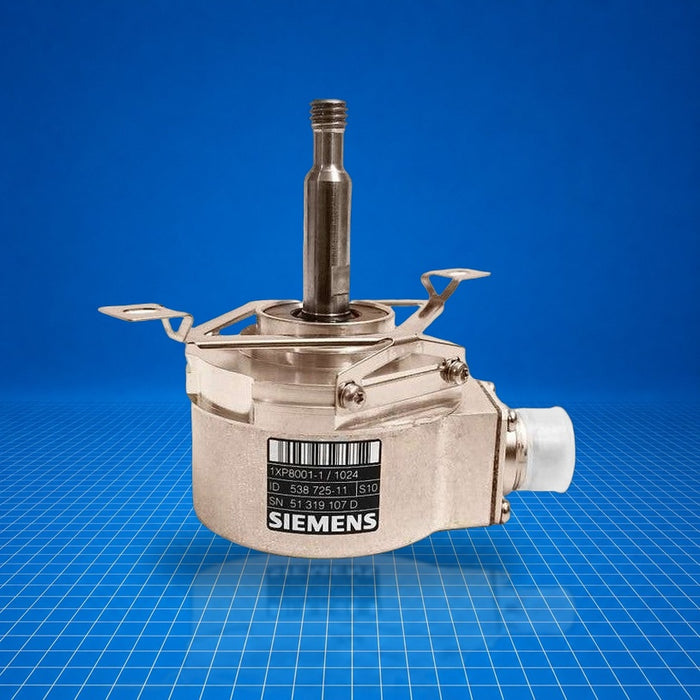

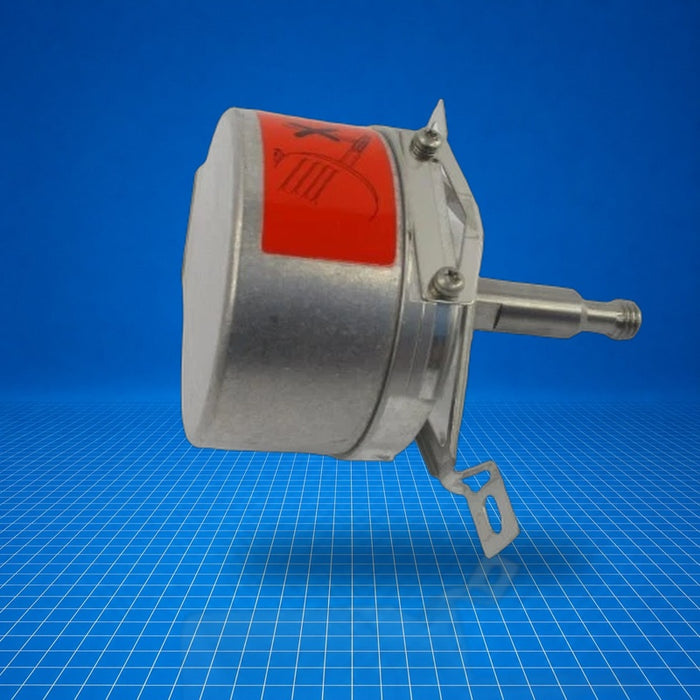

The Siemens 1XP8001-1 is an incremental pulse encoder intended for use with SIMADYN D T400 technology modules and 1LA5 series motors (frame sizes 100K to 200L). It provides two-track pulse output (phase-shifted for directional recognition) at 1024 pulses per revolution. In control systems it is used for precise speed and position feedback in drive-based closed-loop applications. Typical applications include motor shaft feedback in frequency inverter systems such as MICROMASTER and SINAMICS, and incremental position sensing in heavy-duty industrial motors. Part number 1XP8001-1 is used throughout.
Best Suited For
- Feedback on 1LA5 motors (frame 100K-200L)
- Integration with SIMADYN D T400 pulse-encoder modules
- Incremental speed/position sensing in MICROMASTER drives
- Two-quadrant directional speed control systems
Pulses per revolution
1024 P/R
Tracks
2 (phase-shifted for direction)
Supply voltage
15-24 V (15 V from T400 module, max 100 mA)
Max pulse frequency
1.5 MHz
Technical Specifications
I/O & Electrical
Supply voltage
15-24 V DC (15 V from T400 module, max 100 mA)
Pulses per revolution
1024 P/R
Channels
2 (for direction recognition)
Max pulse frequency
1.5 MHz
Communication & Power
Shielding requirement
Cable must be screened and shield connected to earth via low impedance (e.g. cable clamp)
