3NP5060-0EA86 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

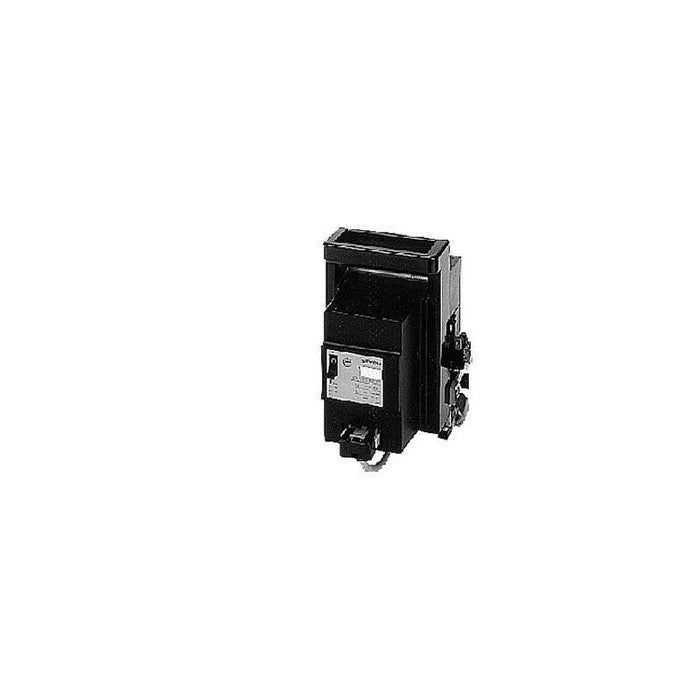

The Siemens SENTRON 3NP5060-0EA86 is a 3-pole fuse switch disconnector with electromechanical fuse monitoring, designed for rated currents up to 160 A and rated operational voltage up to 690 V AC. It belongs to the 3NP5 family of fuse switch disconnectors and integrates an auxiliary switch (1 NO + 1 NC) on both the switch-disconnector and the fuse-monitoring mechanism. Typical roles include isolation, switching, and fuse status signaling in industrial power distribution and motor control circuits. 3NP5060-0EA86 provides a compact, panel-mountable switching solution with built-in fuse-status feedback.
Best Suited For
- Panel-mounted low-voltage power isolation up to 160 A
- Systems requiring fuse status feedback via auxiliary contacts
- Industrial power distribution using NH00 fuse links
- Motor control centers or switchboards using 60 mm busbar systems
