Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

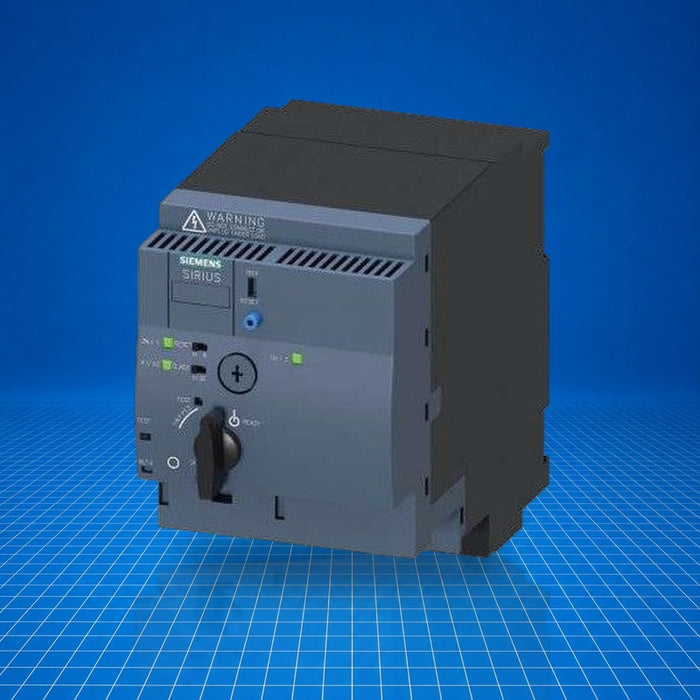

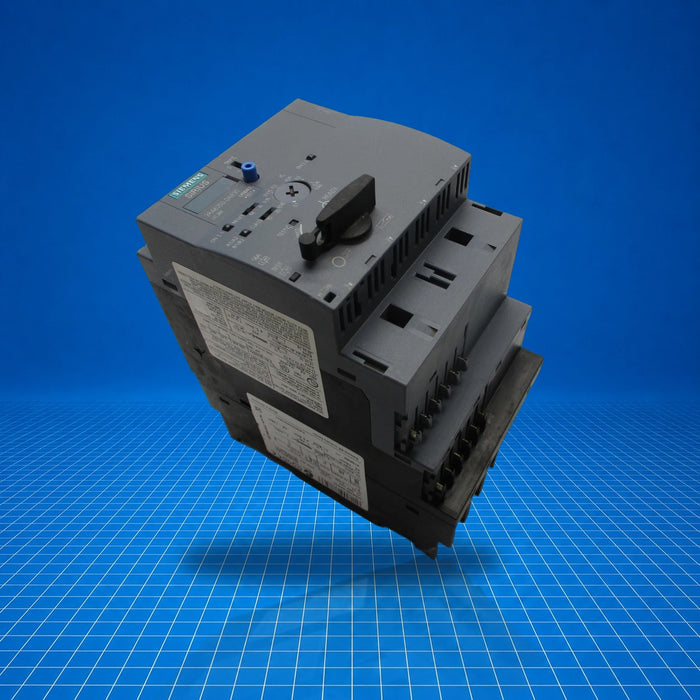

The 3RA6250-0AB30 is a SIRIUS 3RA6 compact reversing starter (load feeder) manufactured by Siemens. It handles reversing motor control within compact control cabinet installations. The device accepts a 24 V AC/DC control voltage and supports motor load feeds up to 0.4 A, suitable for low-current reversing applications. The part includes plug-in main and control circuit connections, rated for use in standard industrial control systems. It is part of the 3RA62 product range and is commonly used where small reversing starter units are required in equipment panels.
Best Suited For
- Reversing small motors or actuators (≤ 0.4 A)
- Compact control-cabinet installations
- SIRIUS 3RA6 infeed systems
- Retrofit or replacement in existing SIRIUS starter blocks
Control voltage
24 V AC/DC
Operational current range
0.1 … 0.4 A
Connection type
Plug-in main & control circuits
Protection rating
IP20
Width
90 mm
Technical Specifications
I/O & Electrical
Control voltage
24 V AC/DC
Operational current
0.1 … 0.4 A
Physical & Environmental
Connection type
Plug-in, without terminals
Protection rating
IP20
Width
90 mm
Weight
2.417 kg
