Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

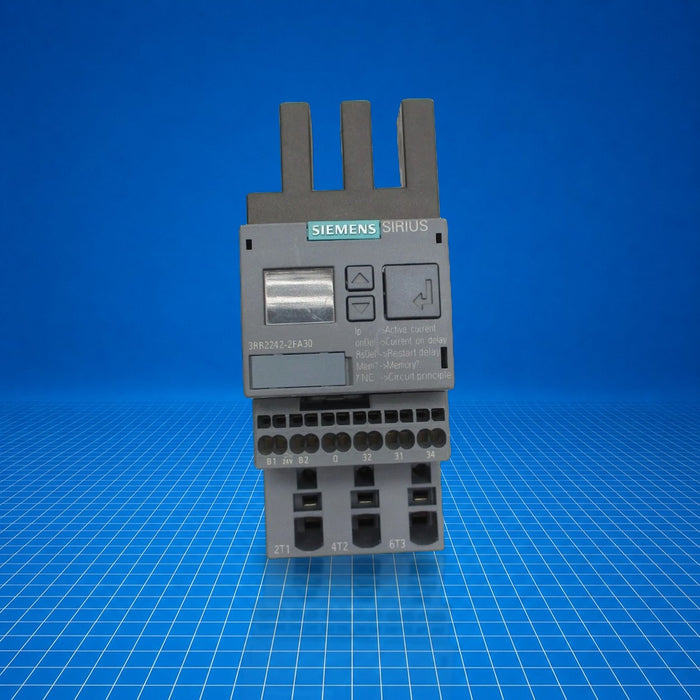

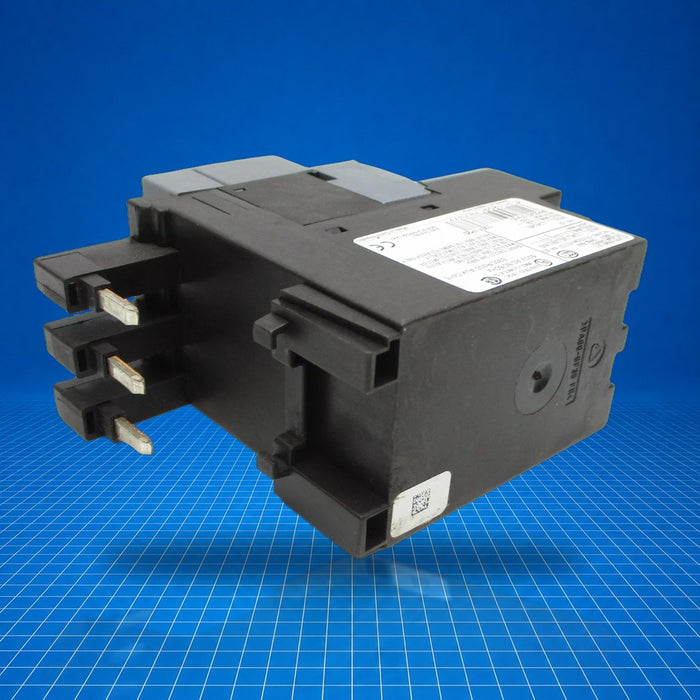

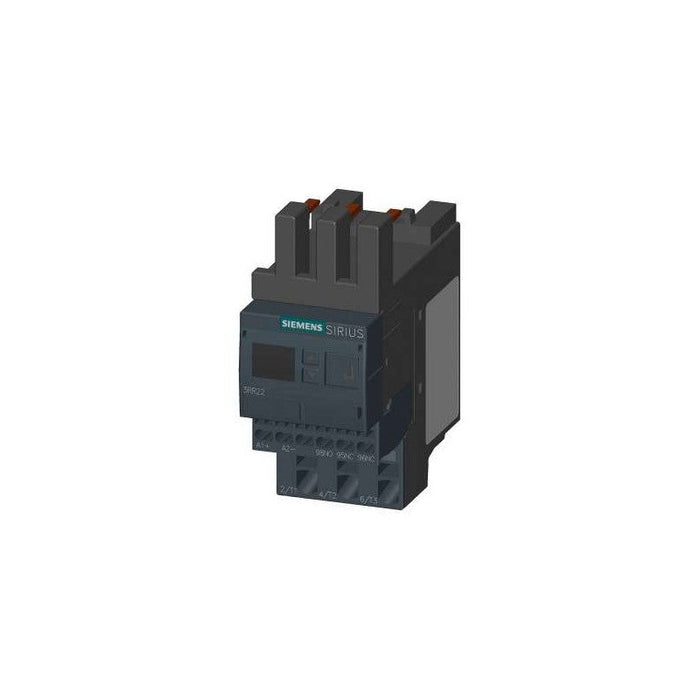

The Siemens 3RR2242-2FA30 is a member of the SIRIUS 3RR22 series of digitally adjustable three-phase current monitoring relays. It is designed to monitor active or apparent current within a defined range and provide both a change-over contact output and a semiconductor warning output. Used for protective and alerting functions, it integrates into motor control and contactor systems (e.g., with 3RT2 contactors) and finds applications in phase-sequence protection, residual current detection and threshold-based alarm systems.
Best Suited For
- Monitoring three-phase motor current using 3RT2 contactors
- Detecting phase sequence and phase loss conditions
- Setting separate warning and alarm thresholds
- Providing both relay and semiconductor alarm outputs
- Delay-based fault recovery and reclosing via timer settings
Output types
1 change-over contact; 1 semiconductor output
Adjustable current range
4…40 A (S0 size)
Supply voltage
24 V AC/DC (24…240 V AC/DC allowed)
Timing functions
ON-delay 0…99 s; reclosing pause 0…300 min
Technical Specifications
I/O & Electrical
Monitoring current range
4…40 A (active or apparent)
Supply voltage
24 V AC/DC; up to 240 V AC/DC allowed
Communication & Power
Outputs
1 CO contact; 1 semiconductor output
Adjustments
Digital via LC display
Physical & Environmental
Mounting
Mountable on SIRIUS 3RT2 contactor (S0 size)
Digital display
LC display
