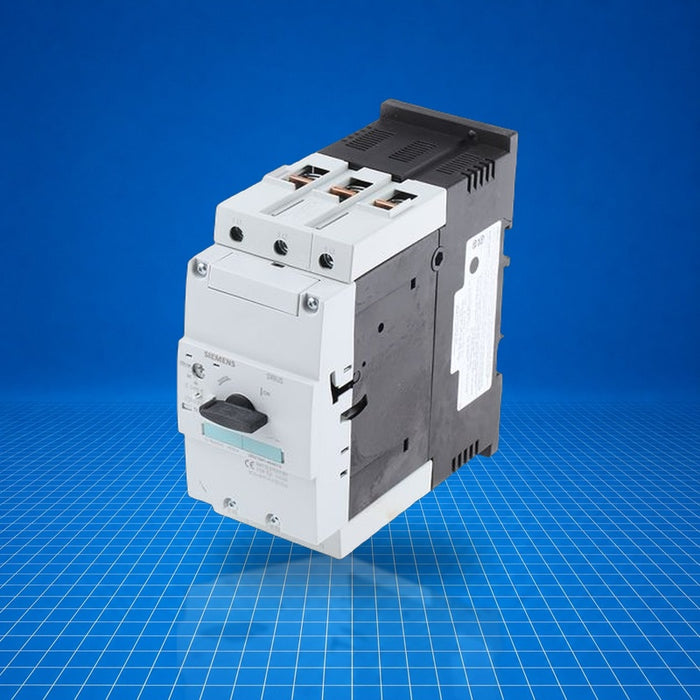

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3RV1041-4MA10 Siemens
Original price
$842.05
-
Original price
$1,485.00
Original price
$842.05
$842.05
-
$1,485.00
Current price
$842.05
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 3RV1041-4MA10 is a SIRIUS S3-size three-pole circuit breaker designed for motor protection with Class 10 overload trip and adjustable current range of 80…100 A. It functions within low-voltage motor control systems to interrupt current under overload or short-circuit conditions. Typical use cases include protection of three-phase motors and integration into motor starter assemblies. This part is now phased-out with the successor 3RV2041-4MA10 suggested for replacement.
Best Suited For
- Three-phase motor overload protection
- Upgrading or replacing SIRIUS S3 size units
- Industrial control panels in non-condensing environments
- Applications requiring adjustable current setting (80…100 A)
- Replacement of discontinued units where direct upgrade to 3RV2041-4MA10 is planned
Trip class
Class 10
Adjustable current range
80…100 A
Rated operating current
100 A
Rated voltage
20…690 V AC
Short-circuit breaking capacity at 400 V
65 kA
Technical Specifications
I/O & Electrical
Adjustable overload current
80…100 A
Rated operating current
100 A
Rated voltage range
20…690 V AC
Operating frequency
50…60 Hz
Short-circuit breaking capacity Icu at 400 V
65 kA
Operating short-circuit breaking capacity Ics at 400 V
30 kA
Communication & Power
Power loss (estimated from similar S3 family)
44 W (at rated current)
Physical & Environmental
Ambient operating temperature
-20…+60 °C
Storage temperature
-50…+80 °C
Short-circuit protection upstream recommendation
NH gL/gG 3 NA 3; 315 A fusible link
Certifications
IP20RoHSWEEE
Protection front: IP20 finger-safe per IEC 60529. Phased-out; RoHS and WEEE compliant. No auxiliary contacts included.
