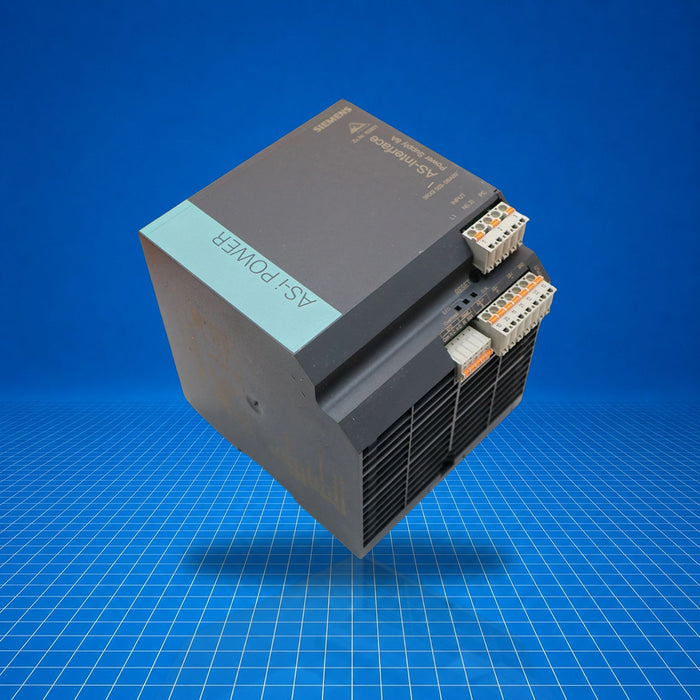

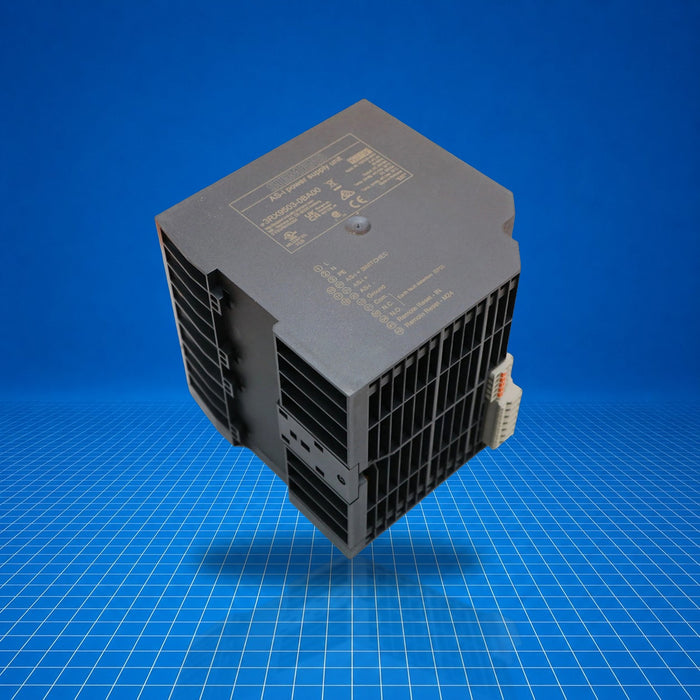

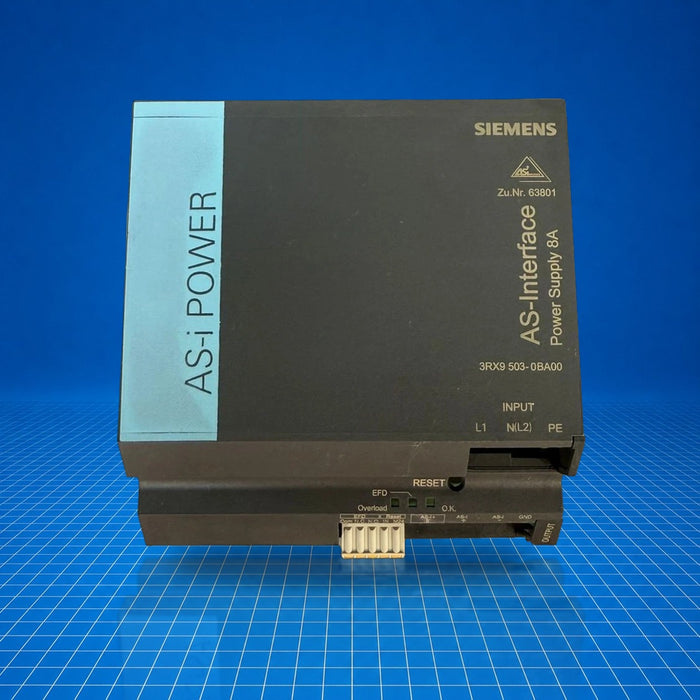

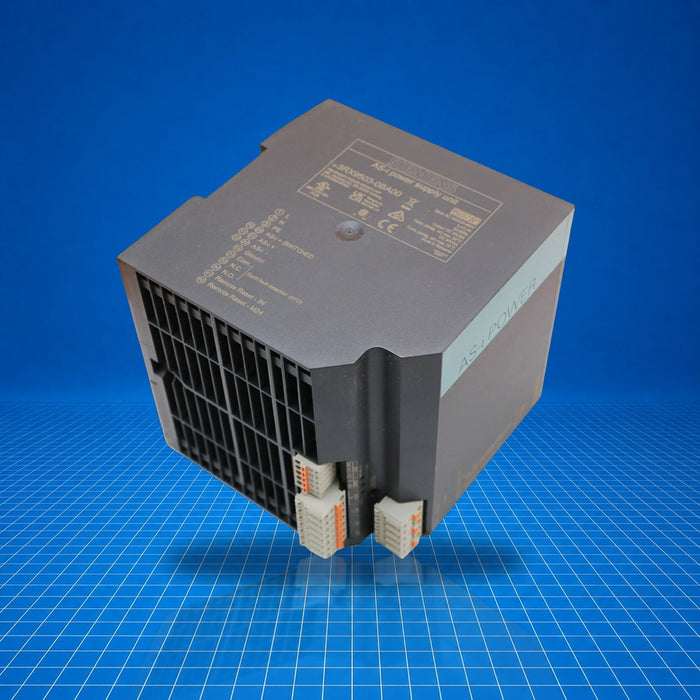

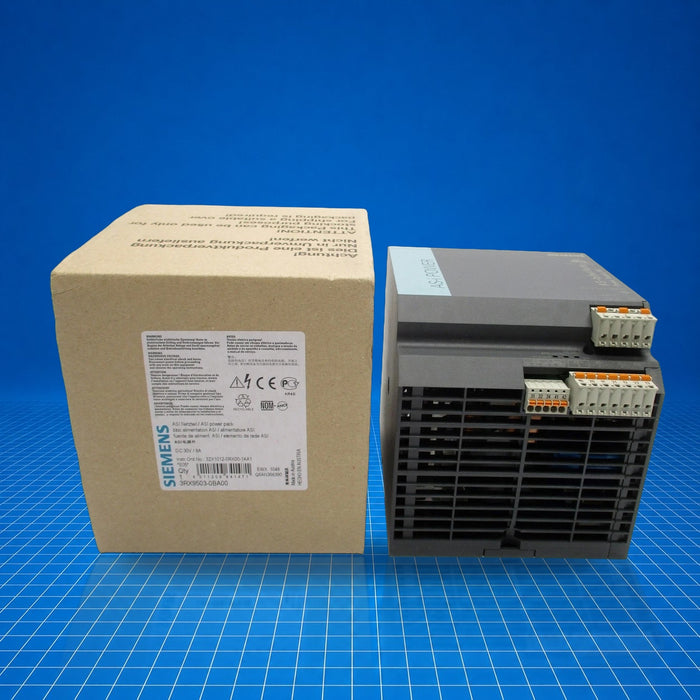

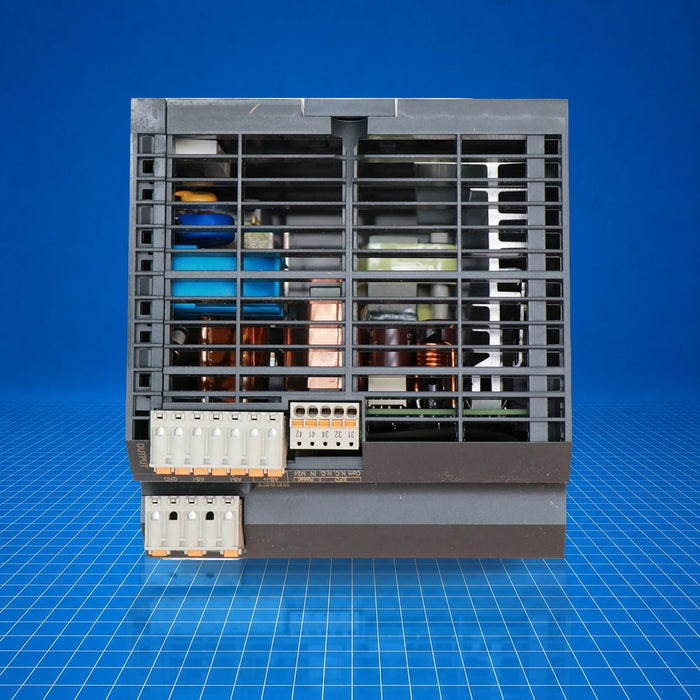

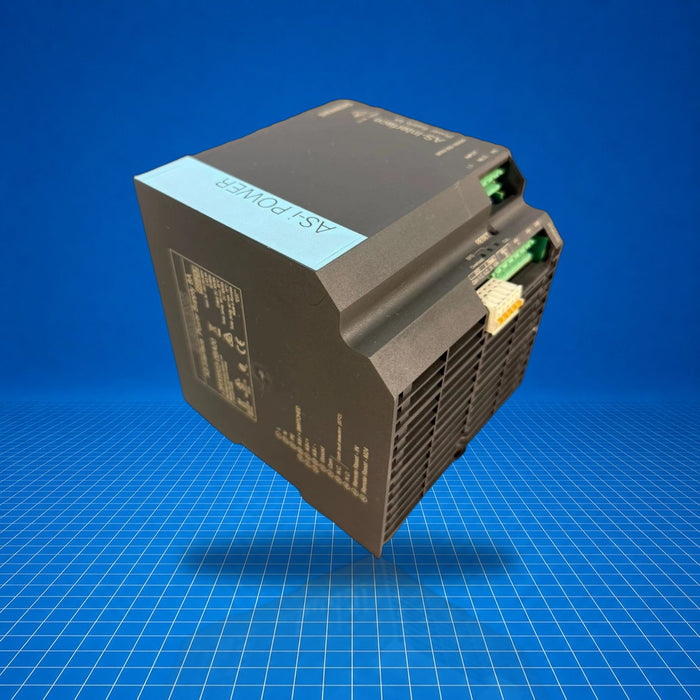

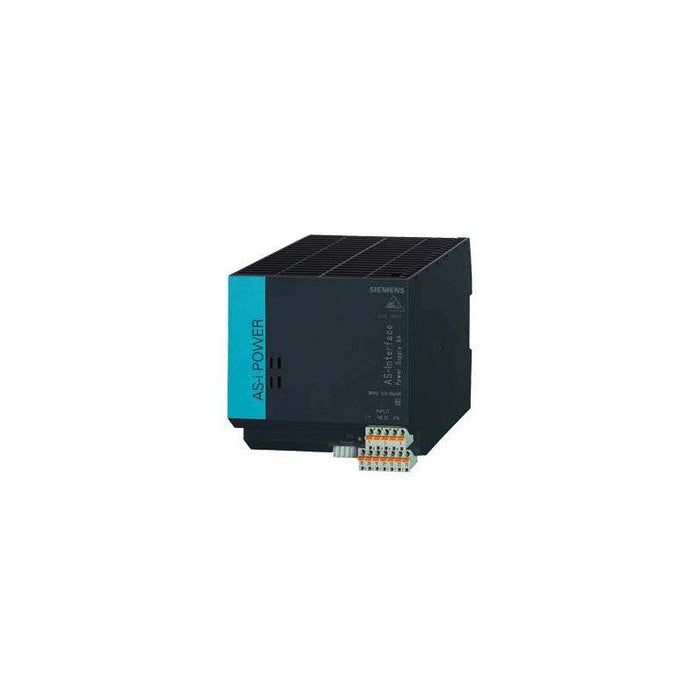

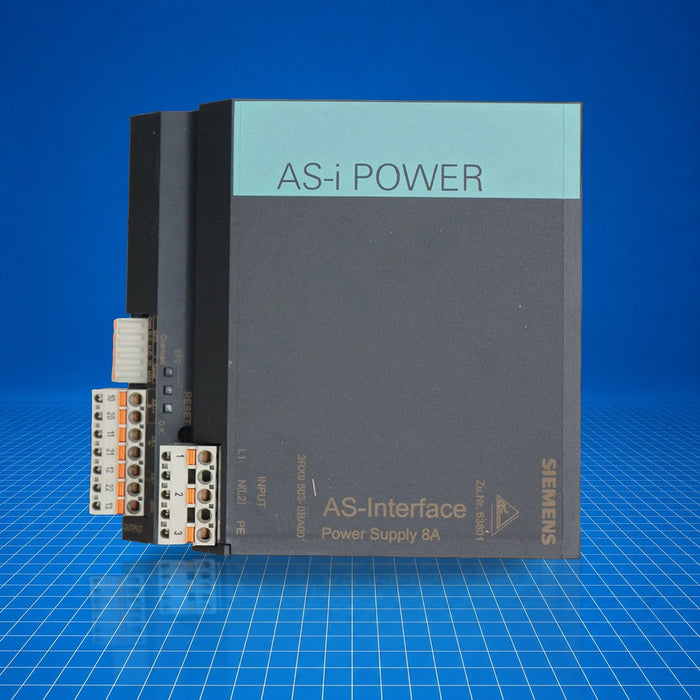

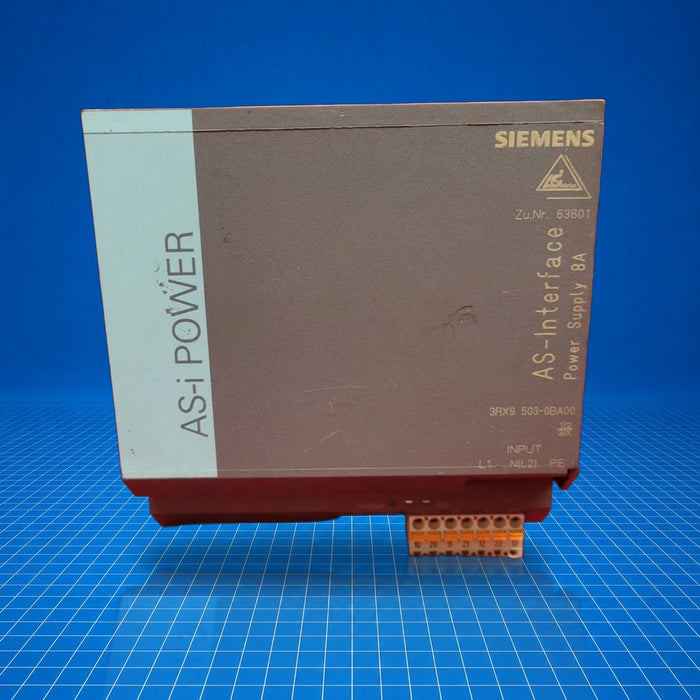

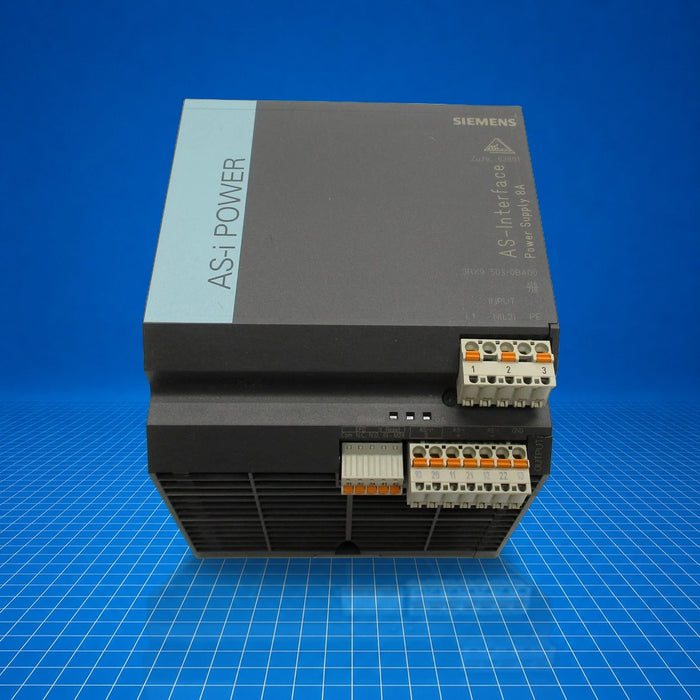

3RX9503-0BA00 Siemens
Original price
$450.00
-
Original price
$2,992.00
Original price
$450.00
$450.00
-
$2,992.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part 3RX9503-0BA00 is an AS-Interface power supply unit from Siemens' AS-Interface power supply family. It converts an AC input voltage of 120 V or a wide range of 230-500 V AC into a regulated 30 V DC supply (8 A) for AS-Interface networks. The unit includes integrated ground-fault and overload detection and data decoupling for AS-i, and carries an IP20 rating. It is used in industrial control systems to reliably power AS-Interface bus segments in distributed automation applications. 3RX9503-0BA00 plugs into DIN-rail environments and supports typical machine-level power distribution.
Best Suited For
- AS-Interface bus segments in distributed I/O systems
- Retrofit or on-machine control panel installations
- Systems requiring voltage tolerance from 120 V or 230-500 V AC
- Applications needing built-in ground-fault and overload protection
- Environments using compact DIN-rail power supplies
Output current
8 A
Output voltage
30 V DC
Input voltage range
120 V or 230-500 V AC
Protection features
Ground-fault and overload detection
Enclosure rating
IP20
Technical Specifications
I/O & Electrical
Input voltage range
120 V or 230-500 V AC
Network frequency range
47…63 Hz
Mains buffering time
> 20 ms
Primary rated current
4.4 A / 2.4 A
Output voltage
30 V DC
Rated output current
8 A
Residual ripple
< 50 mV pp (10…500 kHz)
Communication & Power
Data decoupling
AS-i data decoupling included
Physical & Environmental
Mounting
DIN-rail
Enclosure rating
IP20
Width × Height × Depth
120 mm × 125 mm × 125 mm
Weight
≈ 1.27 kg
Certifications
CEUKCAULEACRoHSWEEE
