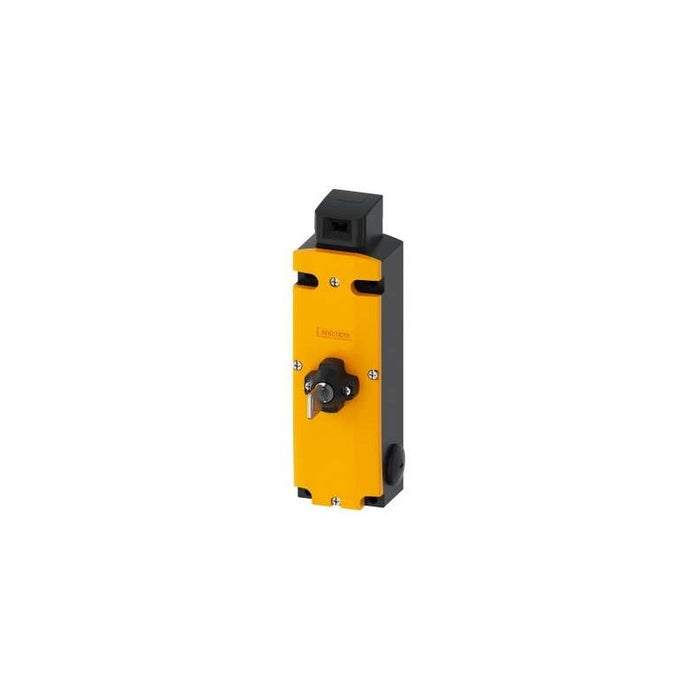

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3SE5312-0SE11 Siemens
Original price
$0.00
-
Original price
$990.00
Original price
$990.00
$0.00
-
$990.00
Current price
$990.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 3SE5312-0SE11 is a SIRIUS 3SE5 mechanical safety position switch with guard-locking function, designed for use in safety control systems adhering to EN ISO 14119. It features spring-locked auxiliary release with 24 V DC lock magnet and provides monitoring contacts for both actuator and magnet (2 NC / 1 NO each). Installed with a separately ordered actuator, it is applied in machine guarding and interlock safety circuits where forced-opening actuation is required.
Best Suited For
- Guarding and interlock safety circuits
- Applications requiring positive-opening safety switches
- Machinery with guard doors or covers
- Systems requiring 24 V DC solenoid-locked safety position detection
Locking force
2 600 N
Monitoring contacts actuator
2 NC / 1 NO
Monitoring contacts magnet
2 NC / 1 NO
Protection class
IP66/IP67
Thermal current
10 A
Technical Specifications
I/O & Electrical
Lock magnet voltage
24 V DC
Insulation voltage (rated)
250 V
Thermal current
10 A
Continuous current (MCB C-char.)
1 A (for I<400 A)
Continuous current (quick DIAZED fuse)
10 A (for I<400 A)
Continuous current (DIAZED fuse gG)
6 A (for I<400 A)
Physical & Environmental
Degree of pollution
class 3
Surge voltage resistance
4 kV
Shock resistance
30 g / 11 ms
Vibration resistance
0.35 mm / 5 g
Mechanical service life
1 000 000 cycles (typical)
Repeat accuracy
0.05 mm
Operating temperature
-25 … +60 °C
Material, enclosure
metal
Weight
1.26 kg
Dimensions (L × W)
185 mm × 54 mm
Minimum actuating force
30 N
Protection class
IP66/IP67
