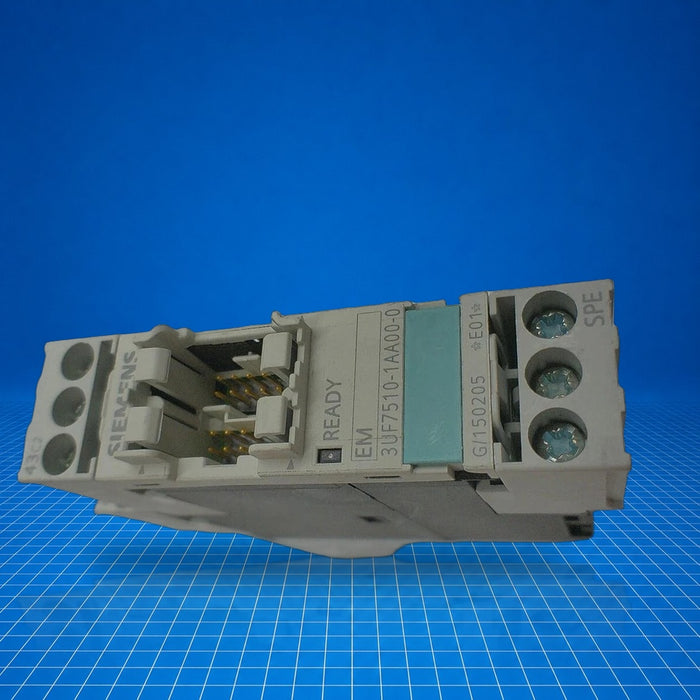

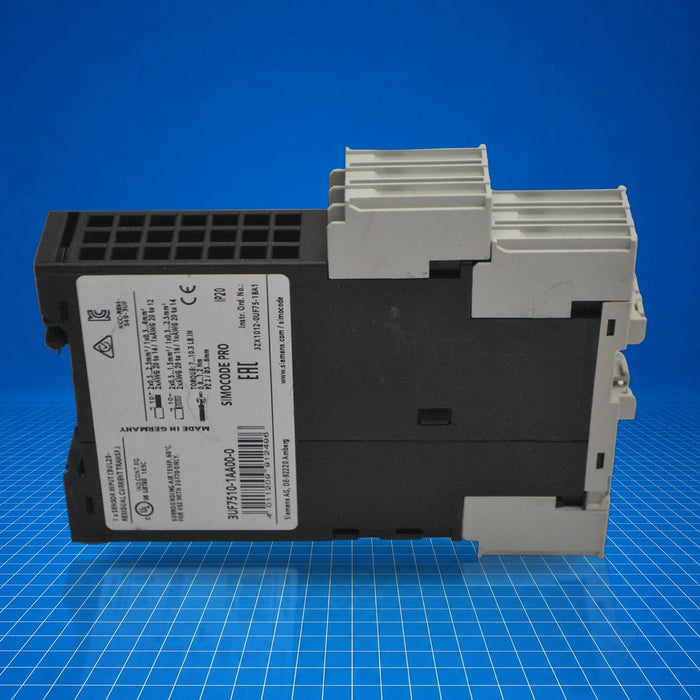

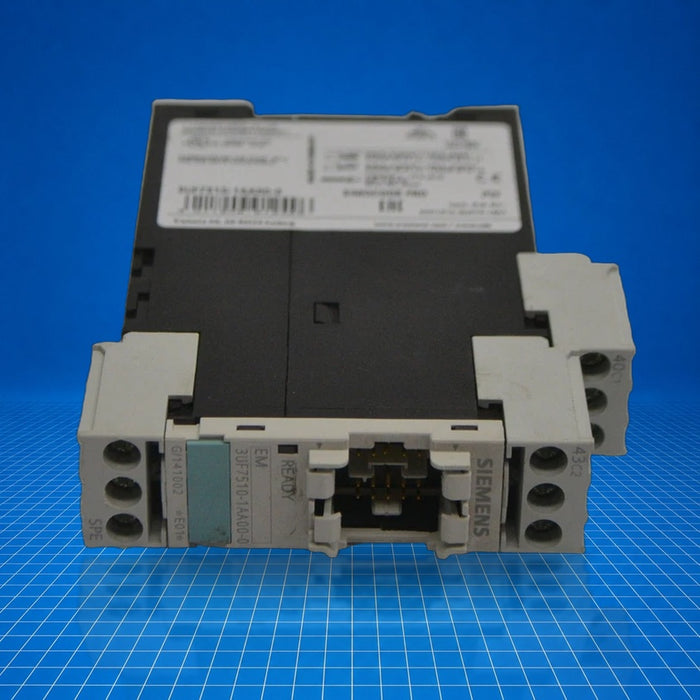

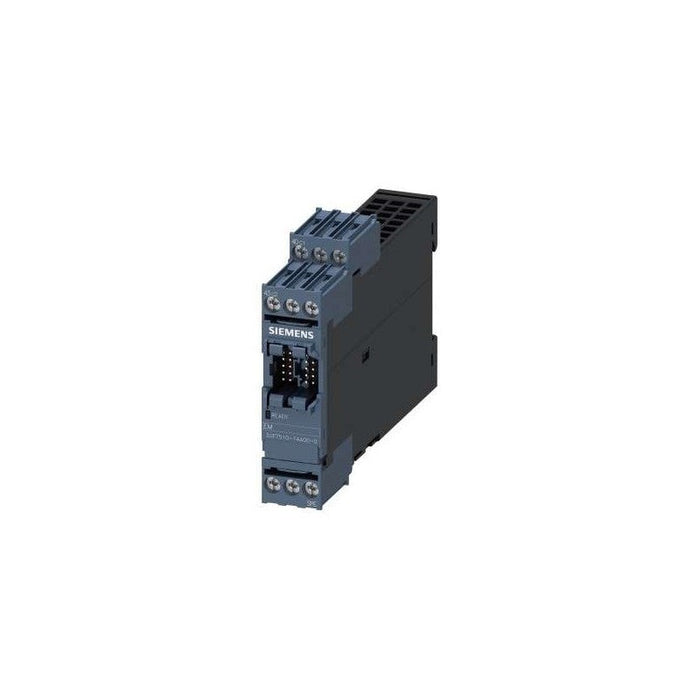

3UF7510-1AA00-0 Siemens
Original price
$627.00
-
Original price
$629.75
Original price
$627.00
$627.00
-
$629.75
Current price
$627.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
3UF7510-1AA00-0 is a Siemens SIMOCODE pro V ground fault module designed to monitor residual currents via connection to a 3UL23 residual-current transformer. It integrates into SIMOCODE pro V basic units to provide precise analog detection of ground faults, typically in motor control and critical safety applications. It supports accurate measurement of fault current and allows setting of warning and trip thresholds within a wide current range.
Best Suited For
- SIMOCODE pro V motor control systems
- Applications requiring precise residual-current measurement
- Ground-fault detection in high-impedance grounded systems
- Integration with 3UL23 residual-current transformers
Compatible Transformer
3UL23 type
Active Power Consumption
0.1 W
Mounting Width
22.5 mm
Input Type
1 analog ground-fault input
Support Modules per Basic Unit
Max. 1 ground-fault module
Technical Specifications
I/O & Electrical
Number of inputs (analog ground-fault)
1
Number of digital inputs
0
Number of outputs
0
Active power consumption
0.1 W
Type of current monitored
AC and pulse-shaped DC (type A)
Response time, max
100 ms
Residual-current transformer measurement deviation
2.5 %
Communication & Power
Electrical connection
Screw-type terminals
Connectable conductor cross-section, solid
1× (0.5…4.0 mm²), 2× (0.5…2.5 mm²)
Connectable conductor cross-section, stranded
1× (0.5…2.5 mm²), 2× (0.5…1.5 mm²)
Tightening torque
0.8…1.2 N·m
Tightening torque [lbf·in]
7…10.3 lbf·in
Physical & Environmental
Height
92 mm
Width
22.5 mm
Depth
124 mm
Mounting position
Any
Fastening method
Screw and snap-on
Ambient temperature, operation
-25…+60 °C
Storage/transport temperature
-40…+80 °C
Installation altitude
Up to 2000 m (standard), 3000 m up to +50 °C, 4000 m up to +40 °C
EMC immunity
Class A; immunity severity 3
Certifications
CCCUK DoCEU DoCULEACRCMKCABSDNVRMRS
Approvals: CCC, UK Declaration of Conformity, EU Declaration of Conformity, UL, EAC, RCM, KC; Maritime: ABS, DNV, RMRS.
