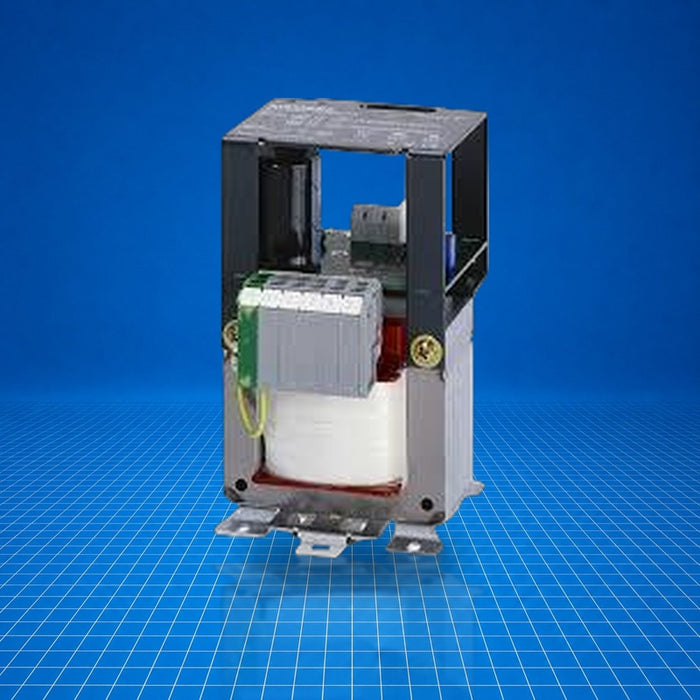

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
4AV2000-2EB00-0A Siemens
Sold out
Original price
$0.00
-
Original price
$932.25
Original price
$932.25
$0.00
-
$932.25
Current price
$932.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 4AV2000-2EB00-0A is a single-phase safety isolating transformer in the SIRIUS non-stabilized power supply family. It converts a primary voltage of 400-230 V ±15 % (AC, 50-60 Hz) to a stabilized 24 V DC secondary supply at 2.5 A (60 % load) / 3 A (40 % load). It is used for isolating and supplying safety circuit applications in control panels, machinery installations, and industrial automation systems. Part number 4AV2000-2EB00-0A.
Best Suited For
- Safety-related control circuits
- Isolation of low-voltage control supplies
- DIN-rail installation in control panels
- Retrofit replacement in SIRIUS power modules
Primary voltage range
400-230 V AC ±15 %
Secondary output
24 V DC at 2.5 A (60 %) / 3 A (40 %)
Mounting
Screws / DIN-rail
Protection class & IP rating
Class I, IP00
Technical Specifications
I/O & Electrical
Primary voltage
400-230 V AC ±15 %
Frequency
50-60 Hz
Secondary voltage
24 V DC
Secondary current
2.5 A (60 % load) / 3 A (40 % load)
Communication & Power
Protection class
Class I
Power dissipation ratio
5 %
Physical & Environmental
Temperature rise / Insulation class
60 / B
IP rating
IP00
Connection type
Screw connection
Mounting
Screws / DIN-rail
Net weight
2.415 kg
Packaging dimensions
180 × 180 × 150 mm
Certifications
EN 61558-2-6EN 61131-2
Conforms to EN 61558-2-6 and EN 61131-2; SIRIUS safety isolating transformer.
