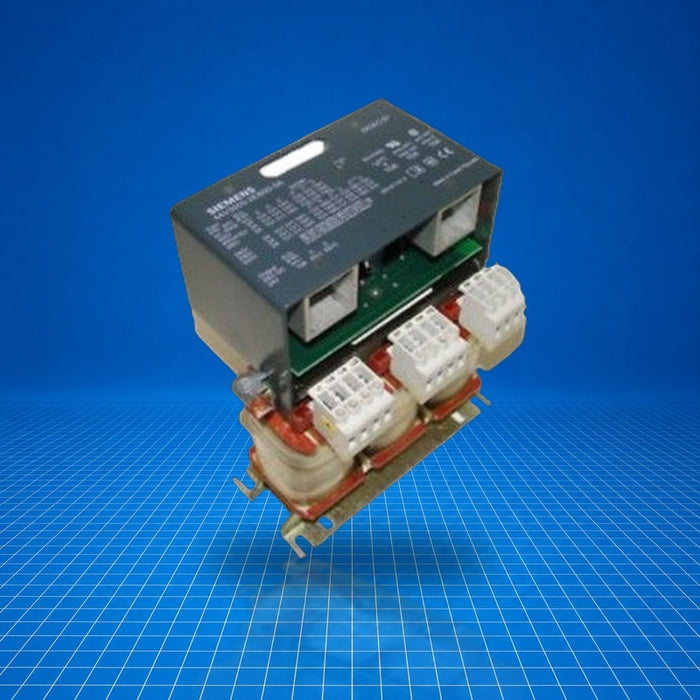

4AV3000-2EB00-0A Siemens
Original price
$0.00
-
Original price
$718.76
Original price
$718.76
$0.00
-
$718.76
Current price
$718.76
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

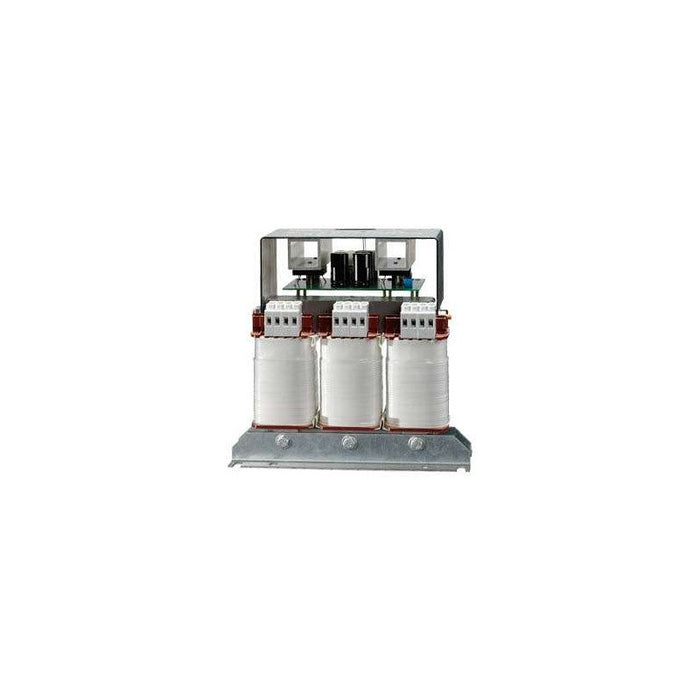

The 4AV3000-2EB00-0A is a three-phase, non-regulated SIRIUS power supply transformer for industrial control applications. Designed to convert three-phase AC input to a 24 V DC output, it supplies up to 12 A (at 40 °C, 60 % load) for control power systems. The unit is applied in control cabinets for PLCs, contactor coils, and auxiliary circuits where a basic safety transformer is required. 4AV3000-2EB00-0A integrates directly into equipment racks to support system power requirements.
Best Suited For
- Three-phase AC control power in panel-mounted cabinets
- Non-regulated 24 V DC supply for PLCs and contactors
- Applications requiring UL/CSA-recognized safety transformer
- Integration into SIRIUS non-stabilized power systems
Phases
3
Secondary voltage
24 V DC
Secondary current
10 / 12 A (60 / 40 °C)
Input voltage
400 V ±20 % AC
Technical Specifications
I/O & Electrical
Input voltage
400 V AC (±20 %)
Output voltage
24 V DC
Output current
10 / 12 A DC (60 / 40 °C CEL)
Communication & Power
Power rating
Pn 0.24 kW
Physical & Environmental
Protection class
I
Insulation class / temperature rise
60 °C / B
Degree of protection
IP00
Mounting
Screws
Connection
Screw connection
Weight
4.930 kg
Packaging dimensions
233 × 250 × 187 mm
Certifications
UL-RecognizedCSA-Recognized
UL/CSA-recognized safety transformer per EN 61558-2-6, meets EN 61131-2.
