Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

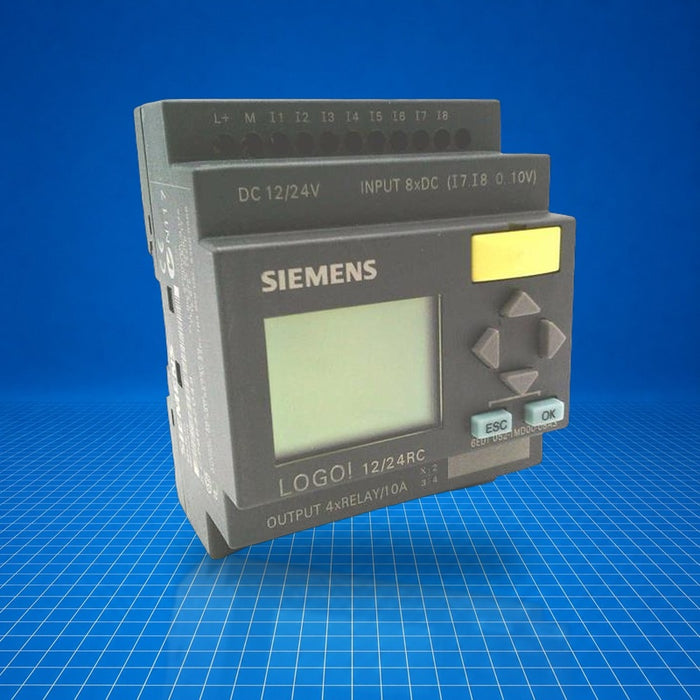

6ED1052-1MD00-0BA3 Siemens
Original price
$795.56
-
Original price
$1,407.50
Original price
$795.56
$795.56
-
$1,407.50
Current price
$795.56
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens LOGO! logic module, 6ED1052-1MD00-0BA3, is part of the LOGO! 12/24 RC platform. It serves as a compact programmable logic controller suited for small automation tasks. In a control system, it performs logic functions, timing, and simple automation routines. It is typically applied in building management, machine control, and process automation where small-scale logic execution is required. 6ED1052-1MD00-0BA3 is functionally equivalent to other 12/24 RC variants in this family.
Best Suited For
- Small cabinet or machine-level logic control
- Basic automation tasks such as lighting, pumps, and simple interlocks
- Standalone timer-based control applications
- Energy or HVAC control in small installations
Digital inputs
8 (4 analog configurable)
Digital outputs
4 (relay, up to 10 A)
Power supply
12 / 24 V DC
Operating temperature
-20 °C to 55 °C
Technical Specifications
I/O & Electrical
Digital inputs
8 (4 can be used as analog 0-10 V)
Digital outputs
4 relay outputs, max 10 A (inductive max 3 A)
Input voltage
12 V / 24 V DC
Physical & Environmental
Operating temperature
-20 °C to 55 °C (no condensation)
Dimensions (WxHxD)
71.5 mm × 90 mm × 58 mm
Protection class
IP20
Certifications
CEcULuscFMusRCMKCUKCAEAC
Certified to standards EN 61131-2, EN 61010-2-201, EN 61000-6-1/-2/-3/-4; Approvals: CE, cULus, cFMus, RCM, KC, UKCA, EAC.
