6ED1055-1FB10-0BA0 Siemens

Name: 6ED1055-1FB10-0BA0 Siemens
Brand: Siemens
SKU: 6ED1055-1FB10-0BA0
Price: 676.0 USD
Availability: InStock

$580.00 - $676.00

$676.00

$580.00 - $676.00

$676.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

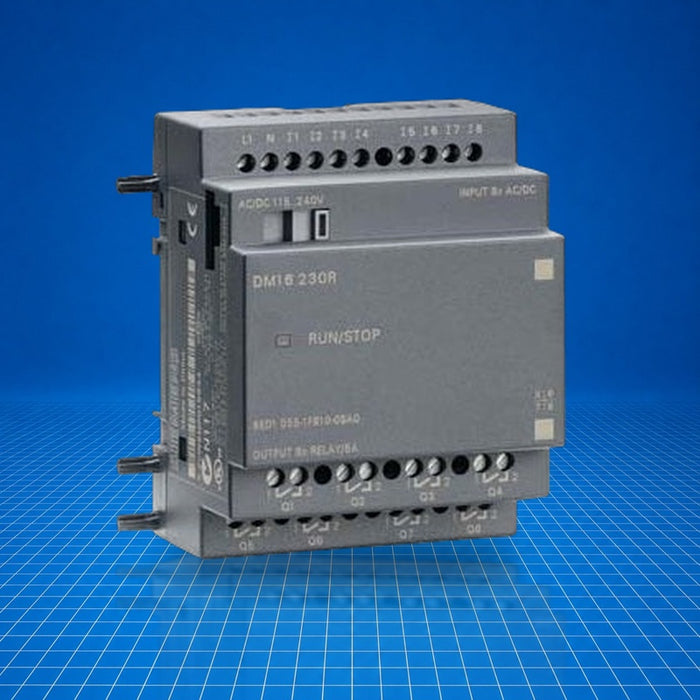

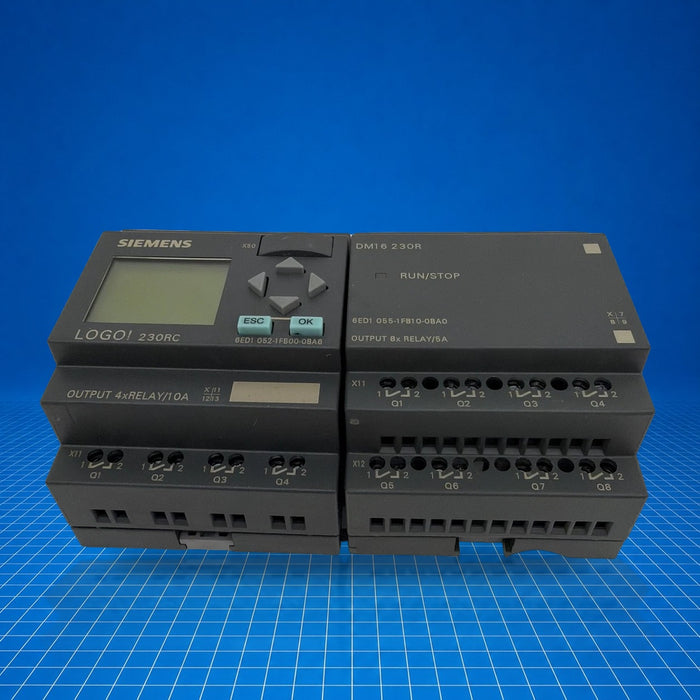

The Siemens LOGO! DM16 230R expansion module 6ED1055-1FB10-0BA0 is an I/O expansion unit for the LOGO! 8 logic modular system. It provides eight relay-type digital outputs and eight digital inputs, enabling scalable control functionality on DIN-rail installations. In an automation system, it extends the LOGO! controller's I/O capacity for applications such as machine control, building automation, and elevator systems. 6ED1055-1FB10-0BA0 integrates seamlessly with LOGO! logic modules and shares identical form, footprint, and power domains.

Best Suited For

Logic extension of LOGO! 8 in compact installations
Machine sequence control in small automation cells
Building management systems (lighting, HVAC)
Elevator or door control requiring relay outputs

Digital inputs

8

Digital outputs (relay)

8

Supply voltage range

115/230 V AC/DC

Output switching capacity (lamp load)

1 000 W; 500 W at 115 V AC

Protection / rating

IP20 enclosure

Technical Specifications

I/O & Electrical

Digital inputs

8

Digital input voltage type

AC/DC

Digital input '0' threshold

< 40 V AC, < 30 V DC

Digital input '1' threshold

> 79 V AC, > 79 V DC

Digital outputs (relay)

8

Output switching capacity (lamp load)

1 000 W; 500 W at 115 V AC

Load current (relay)

5 A (resistive)

Communication & Power

Supply voltage

115 V or 230 V AC/DC

Permissible supply range

100 … 253 V DC; 47 … 63 Hz (AC)

Physical & Environmental

Mounting

35 mm DIN-rail, 4 units wide

Operating temperature

0 °C to 55 °C (ES03 and higher: -20 °C min)

Degree of protection

IP20

Dimensions (W × H × D)

71.5 mm × 90 mm × 58 mm

Certifications

CEULCSAFMIEC 61131
