6FC5203-0AF01-0AA0 Siemens
Original price
$0.00
-
Original price
$13,499.99
Original price
$13,499.99
$0.00
-
$13,499.99
Current price
$13,499.99
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

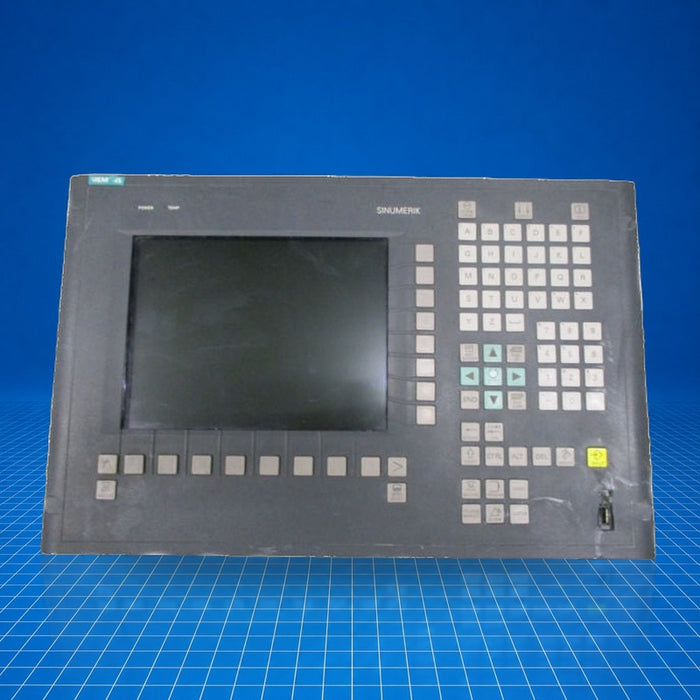

The Siemens part number 6FC5203-0AF01-0AA0 is the SINUMERIK OP 010C operator panel front, featuring a 10.4-inch VGA-resolution color TFT display with mechanical keys. It belongs to the SINUMERIK operator panel front family and provides the human-machine interface surface for CNC systems (e.g., SINUMERIK 840D sl). It serves as the operator entry interface in machining centers and industrial CNC applications, enabling control, status display, and input via tactile keys. 6FC5203-0AF01-0AA0 integrates with SINUMERIK PCUs or TCU units.
Best Suited For
- SINUMERIK 840D sl systems
- Integration with SINUMERIK PCU or TCU thin-client architecture
- Retrofit or spare for OP 010C interfaces in CNC machines
- Operator input in machining or tool-making environments
Display size
10.4 in
Display resolution
640 × 480 pixels
Display type
TFT color
Power consumption (typ./max.)
10 W / 16 W
Front protection rating
IP54
Technical Specifications
I/O & Electrical
Supply voltage
5 V (via PCU or TCU)
Communication & Power
Power consumption (typical)
10 W
Power consumption (maximum)
16 W
Physical & Environmental
Front protection class
IP54
Rear protection class
IP00
Operating ambient temperature (front)
0 … 45 °C
Operating ambient temperature (rear)
0 … 55 °C
Storage / transport temperature
-20 … +55 °C
Relative humidity (storage / transport / operation)
5 … 95 %
Dimensions (W × H × D)
483 mm × 310 mm × 30 mm
Panel cutout (W × H)
450 mm × 290 mm
Weight
5 kg
Certifications
CEcULus
CE, cULus
