6FC5211-0BA01-0AA4 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

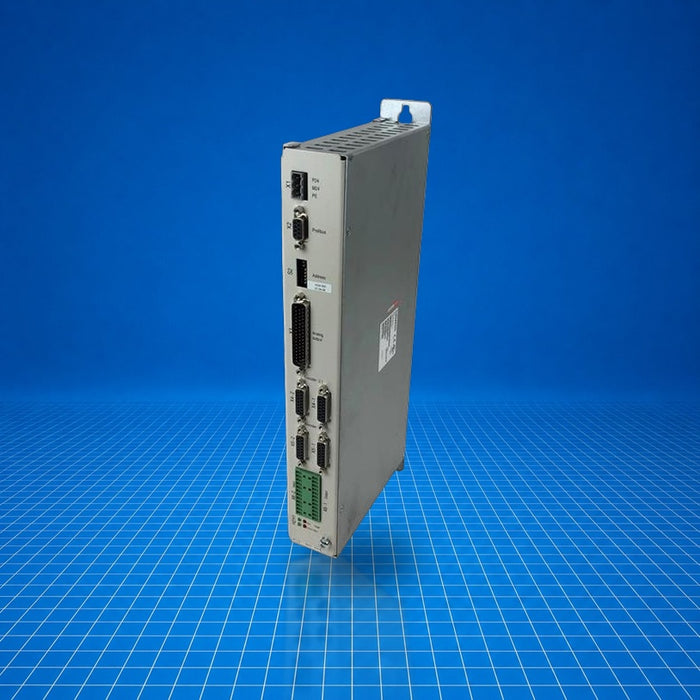

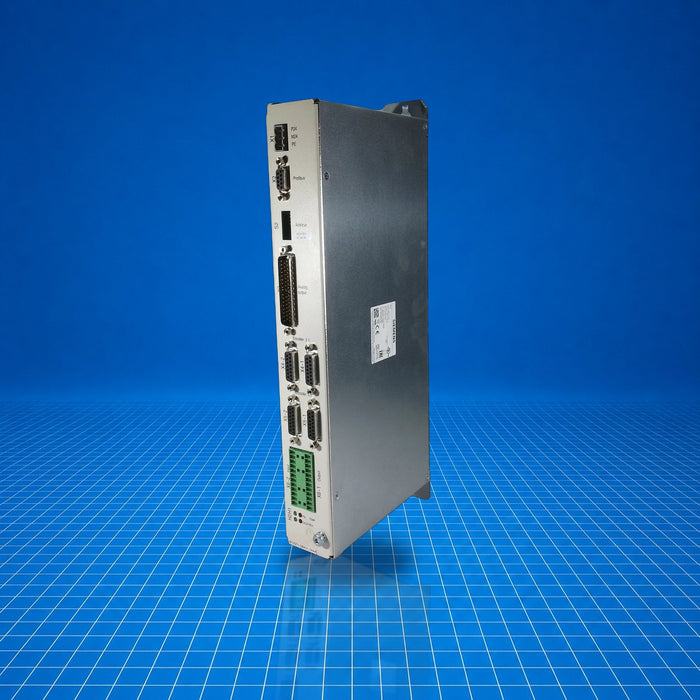

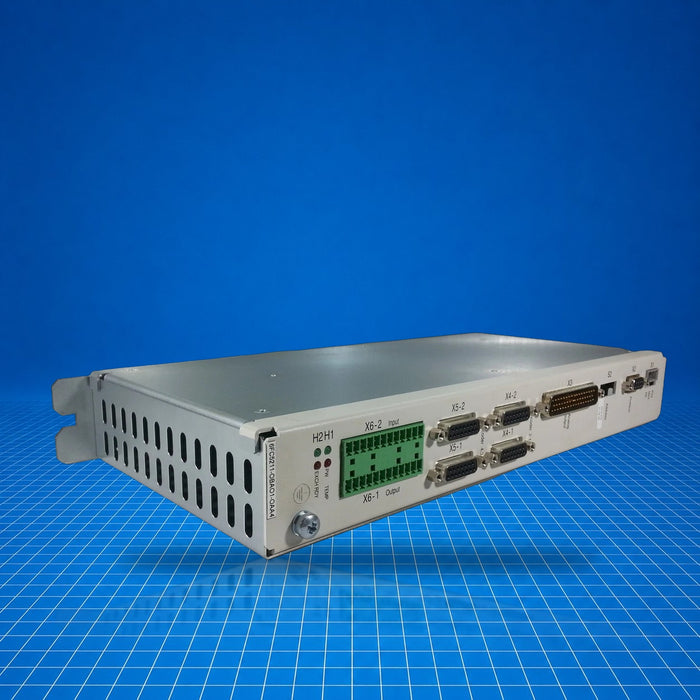

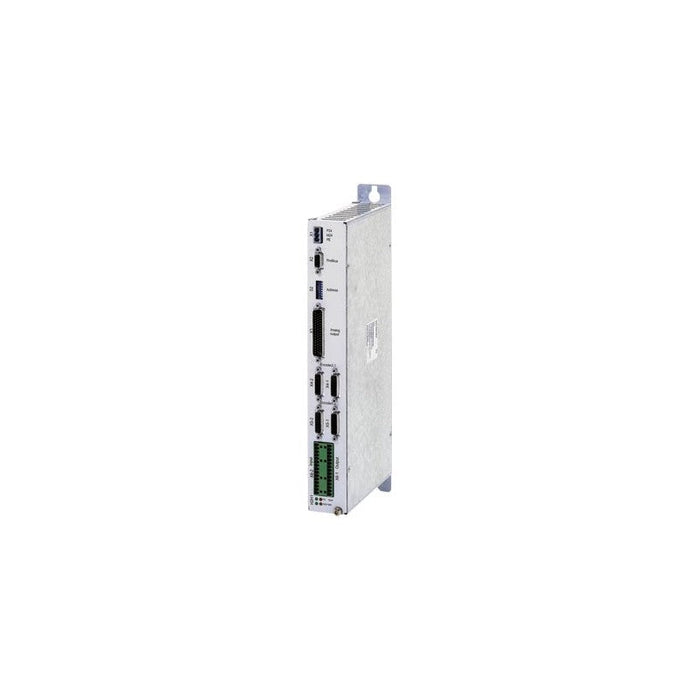

The 6FC5211-0BA01-0AA4 is the SINUMERIK Analog Drive Interface for 4 axes (ADI 4) manufactured by Siemens. It functions as an interface module within CNC systems, providing analog velocity setpoints (±10 V) and encoder feedback (TTL/SSI) to up to four drives via PROFIBUS DP communication. It is typically employed in machine tool control, motion control integration, CNC drive extension modules, and retrofit applications within SINUMERIK environments. The module facilitates bidirectional control between CNC controller and drives, using module-specific PROFIBUS messaging.
Best Suited For
- SINUMERIK CNC systems needing up to four analog drive interfaces
- Retrofit or expansion of motion control systems via PROFIBUS DP
- Analog setpoint distribution and encoder feedback consolidation
- Machine tool integration where TTL/SSI encoders and ±10 V interface drives are used
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Certified to CE, UL, CSA standards.
