Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6FC5371-0AA30-0AB0 Siemens
Original price
$5,134.56
-
Original price
$7,500.00
Original price
$5,134.56
$5,134.56
-
$7,500.00
Current price
$5,134.56
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

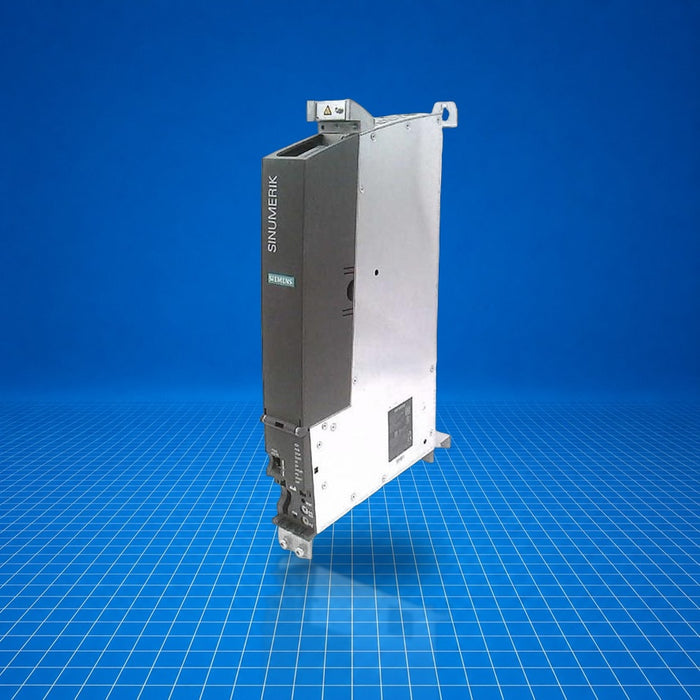

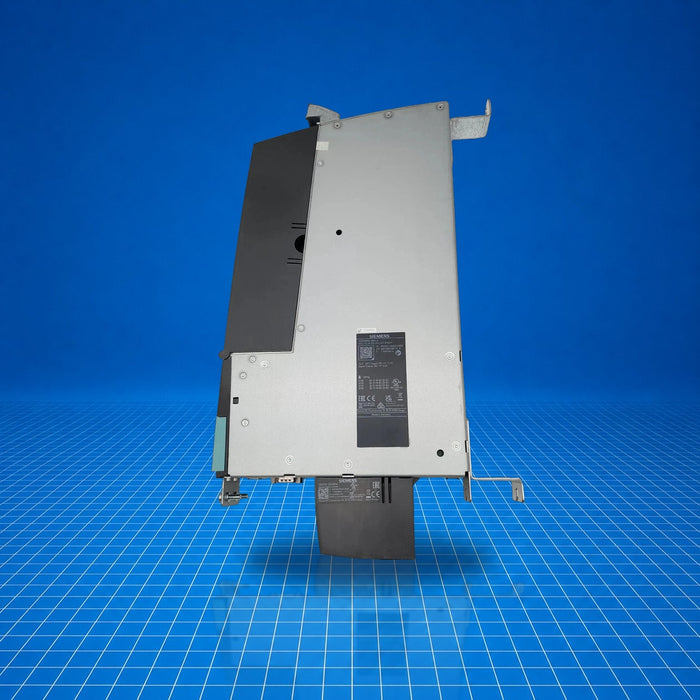

The 6FC5371-0AA30-0AB0 is a Siemens SINUMERIK 840D sl NCU 710.3B PN numerically controlled unit incorporating an integrated SIMATIC S7-317-3 PN/DP PLC. It serves as both CNC control and PLC in machining and manufacturing systems, handling CNC logic and PLC tasks within one module. Its compact form factor and combined control functions make it suited for machine tool OEM applications, retrofit systems, and centralized control panels. Siemens designates this unit as a spare-part offering for the 840D sl series.
Best Suited For
- SINUMERIK 840D sl CNC systems
- Machine tool retrofit platforms
- Compact integration of CNC and PLC functions
- OEM control module replacements
Supply voltage
24 V DC
Main memory (DRAM)
2 Gbyte
Non-volatile memory (NVM)
1 Mbyte
Max active power consumption
281 W
Protection class
IP20 / UL open type; IPXXB with cover for option slot
Technical Specifications
I/O & Electrical
Supply voltage
24 V DC
Communication & Power
Integrated PLC
SIMATIC S7 PLC 317-3 PN/DP
Max power consumption
281 W
Typical power loss
21 W
Physical & Environmental
Dimensions (W × H × D)
50 mm × 455 mm × 272 mm
Net weight
3.7 kg (3.8 kg per some sources)
Operating temperature
0 … 55 °C
Storage/transport temperature
-25 … 55 °C
Relative humidity
5 … 95 %
Protection class
IP20; IPXXB with cover for option slot
Certifications
CEcULus
