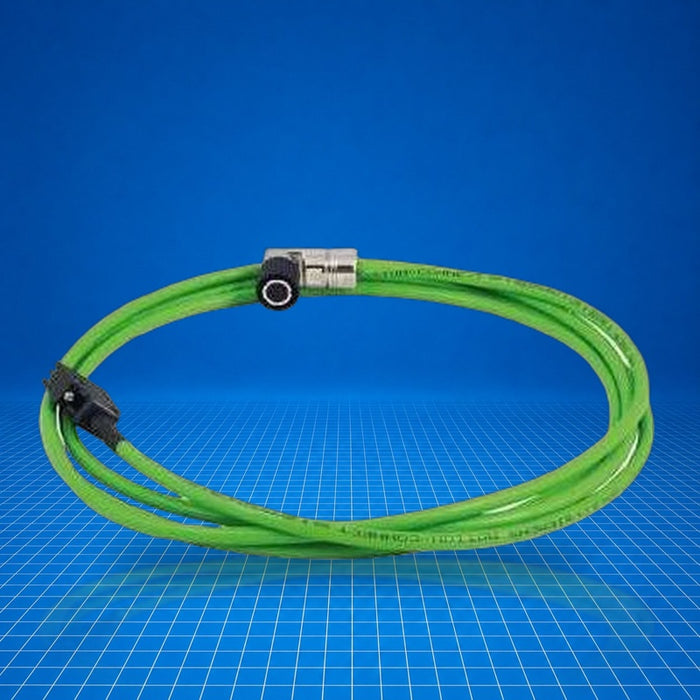

6FX3002-2DB10-1CA0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6FX3002-2DB10-1CA0 is a Siemens MOTION-CONNECT 300 pre-assembled signal cable designed to connect the SINAMICS V70 servo drive to an absolute encoder in a SIMOTICS S-1FL6 motor. This 20 m cable is part of the Motion-Connect 300 family within Siemens' servo drive connection solutions and is used to transmit encoder feedback signals in motion control systems. It is deployed in industrial automation setups requiring encoder signal integrity over extended cable lengths, such as machine tools, robotics, and CNC axes.
Best Suited For
- Encoder feedback link in SINAMICS V70 - SIMOTICS S-1FL6 systems
- Cable runs in drag-chain or moving-axis applications
- 20 m installations requiring IP65 protection
- Applications with exposure to mineral oil environments
Length
20 m
Cores × cross-section
3 × 2 × 0.22 + 2 × 2 × 0.25 mm²
Degree of protection
IP65
Rated voltage U₀/U
30 V / 30 V
Test voltage (rms)
500 V
Technical Specifications
I/O & Electrical
Cores × cross-section
3 × 2 × 0.22 mm² + 2 × 2 × 0.25 mm²
Rated voltage
30 V / 30 V
Test voltage (rms)
500 V
Physical & Environmental
Length
20 m
Degree of protection
IP65
Operating temperature (fixed)
-25 … +80 °C
Smallest bending radius (fixed)
6 × diameter
Smallest bending radius (flexible)
155 mm
Tensile stress, max (fixed)
50 N/mm²
Tensile stress, max (flexible)
20 N/mm²
Torsional stress
Absolute 30°/m
Number of bends, max
1,000,000
Cable sheath material
PVC
Oil resistance
EN 60811-2-1 (mineral oil only)
Flame-resistance
EN 60332-1-1 to -1-3
Certifications
RoHS
RoHS compliant; CE marking not required; UL approval not provided.
