6GT2801-1BA10 Siemens

Original price $720.00 - Original price $825.00
Original price
$720.00
$720.00 - $825.00
Current price $720.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$720.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$825.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

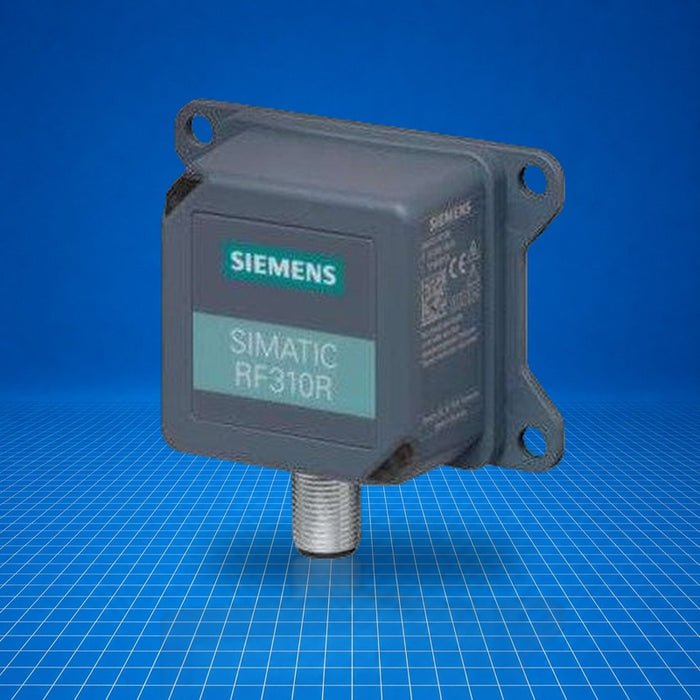

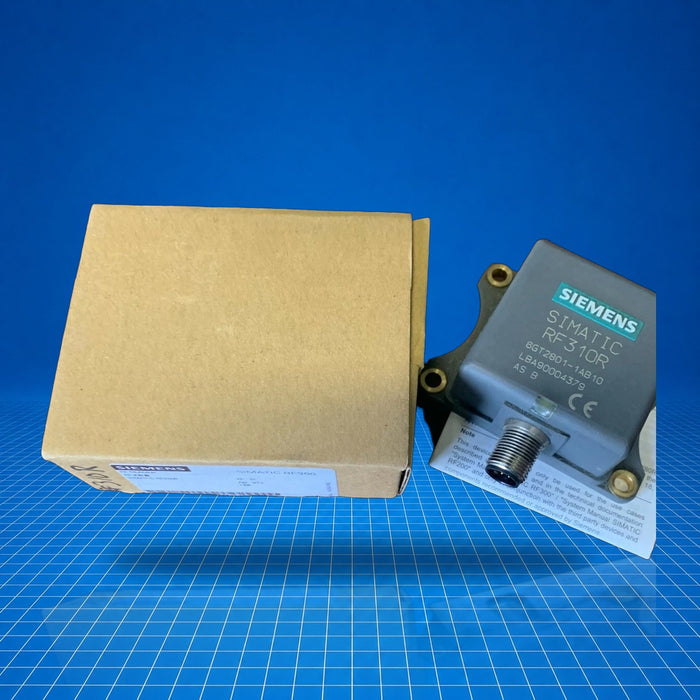

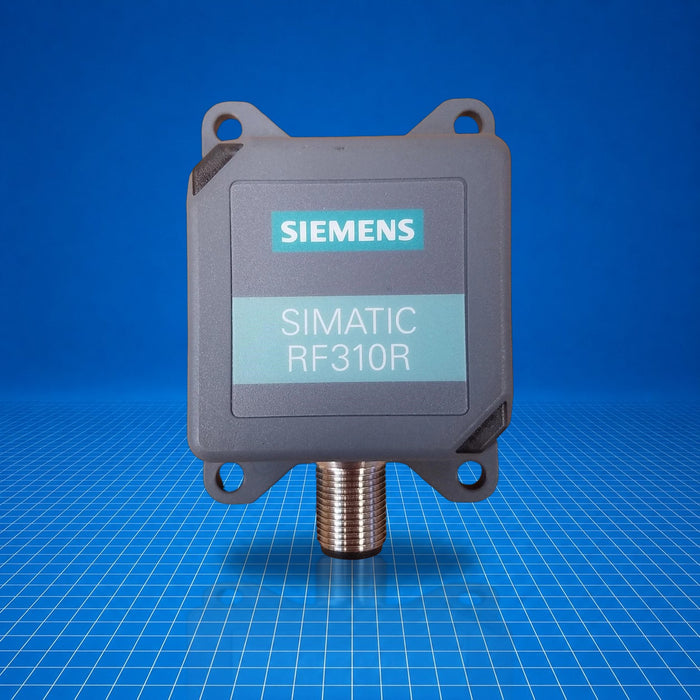

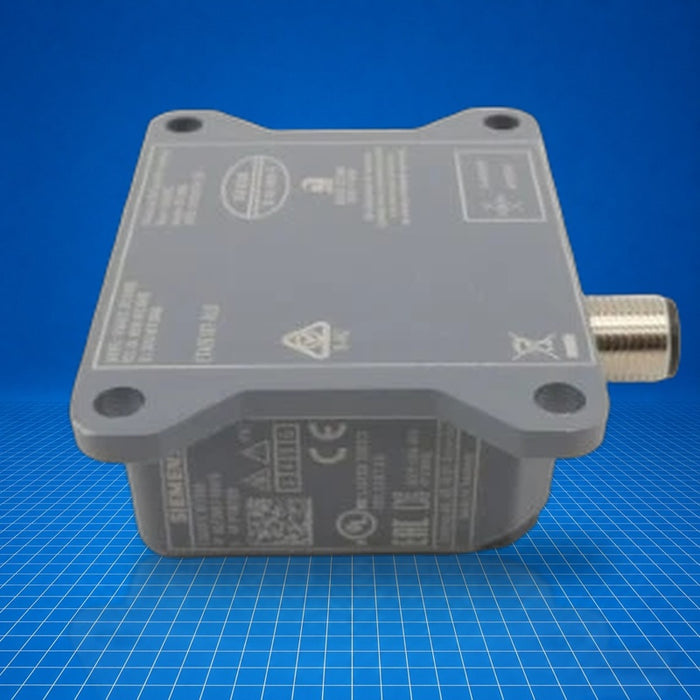

The Siemens SIMATIC RF310R reader (model 6GT2801-1BA10) is an RFID reader within the SIMATIC RF300 platform. It operates at 13.56 MHz and interfaces via RS-422 using the 3964R protocol. Designed for industrial automation, this reader is intended for integration in control systems where non-contact data exchange with transponders is required, such as in manufacturing lines, material handling, and logistics. Part number 6GT2801-1BA10 identifies the standard RS-422 version with an integrated antenna and IP67 enclosure.

Best Suited For

  • RFID integration in conveyor or packaging systems
  • Systems requiring serial RS-422 3964R communication
  • Environment where IP67 protection is required
  • Read/write of ISO and RF300 transponders
Operating frequency
13.56 MHz
Interface
RS-422 (3964R)
Protection class
IP67
Temperature range (operation)
-25 … +70 °C
Typical current draw
60 mA @ 24 VDC

Technical Specifications

I/O & Electrical

Supply voltage
24 VDC
Typical current consumption
60 mA

Communication & Power

Interface
RS-422 (3964R)
Output power (antenna input)
≈ 0.3 W
Max data rate reader ↔ transponder
≤ 8000 bytes/s (RF300 transponder), ≤ 3300 bytes/s (ISO MDS D), ≤ 3400 bytes/s (ISO MDS E)
Transmission speeds
19.2, 57.6, 115.2 kBd

Physical & Environmental

Enclosure material
Plastic PA 12
Color
TI-Grey
Dimensions (L×W×H)
75 × 55 × 30 mm
Weight
100 g
Mounting
4 × M5 screws, 1.5 Nm
Max cable length (RS-422)
1000 m (dependent on speed)
Ambient temperature (operation)
-25 … +70 °C
Ambient temperature (storage/transport)
-40 … +85 °C
Shock resistance
EN 60721-3-7 Class 7 M2, 500 m/s²

Certifications

Complies with RED (2014/53/EU), RoHS (2011/65/EU). Standard variant includes CE, FCC, UL/CSA (IEC 61010). ATEX/IECEx approval applies only to variant 6GT2801-1BA10-0AX2, not this base part.
