6GT2801-4AB10 Siemens
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

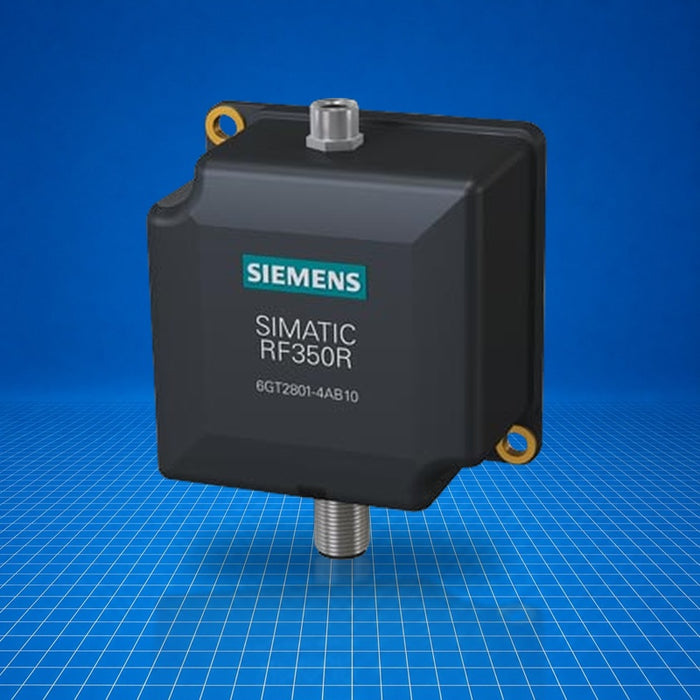

The 6GT2801-4AB10 is a Siemens SIMATIC RF350R RFID reader (SIMATIC RF300 family) designed for HF (13.56 MHz) transponder communication. It functions as a stationary reader in control systems, interfacing via RS-422 (3964R protocol) to communication modules. Typical applications include asset tracking, work-in-process monitoring, and automation systems requiring RFID data capture in industrial environments.
Best Suited For
- Integration with SIMATIC RF300/ISO 15693 transponders
- Connection to RS-422-based communication modules
- Environments requiring IP65-rated RFID readers
- Industrial tracking in manufacturing or logistics
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Compliance with EN 300 330, EN 301 489; approved per CE, FCC, UL/CSA; explosion protection Ex II 3G Ex nA nC IIB T5 and II 3D Ex tD A22 IP6x T80 °C; MTBF ≈ 140 years.
