Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

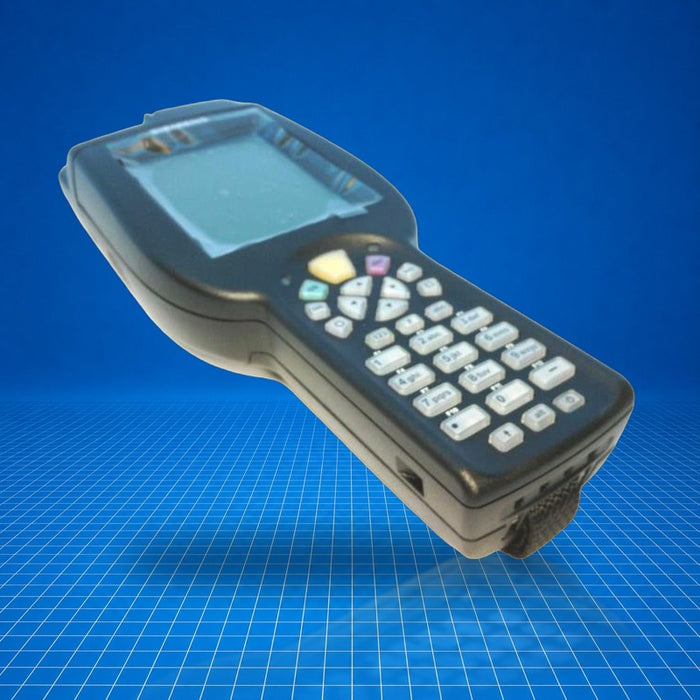

The Siemens SIMATIC RF350M handheld RFID reader (6GT2803-1BA00) is a battery-powered, mobile reader within the SIMATIC RF300 series, designed to read/write HF RFID transponders (RF300, RF200/ISO 15693, ISO 14443/MIFARE, ISO 18000-3). It integrates an ARM11 processor and runs Windows Embedded CE 6.0 to execute the RF350M.exe application. This mobile reader is typically used for asset tracking, inventory management, or on-machine identification in industrial environments. 6GT2803-1BA00 is offered as a service/spare part.

Best Suited For

  • Mobile asset or inventory management
  • On-machine RFID identification
  • RFID data collection in warehousing
  • Field maintenance or inspection logging
Read/write range
max. 80 mm
Display
3.5" QVGA color touchscreen
Battery
Li-ion 7.4 V 2600 mAh
Interfaces
USB, LAN, WLAN (via docking station)
Protection rating
IP54

Technical Specifications

I/O & Electrical

Operating frequency
13.56 MHz
Protocol support
RF300-specific, ISO 15693, ISO 14443/MIFARE, ISO 18000-3
Write/read range
max. 80 mm

Communication & Power

Power supply
Battery or 24 V DC via docking station
Battery capacity
7.4 V 2600 mAh
Charging time (0-90 %)
2.5 hours
Charging time (0-100 %)
5 hours
Backup battery - RAM
8 hours
RTC backup
200 days

Physical & Environmental

RAM
256 MiByte
Flash memory
256 MiByte
Usable data memory
256 MiByte
Processor
ARM11 532 MHz
Display resolution
240 × 320 pixels
Keypad
29 keys
Weight (with battery)
0.6 kg
Dimensions
250 × 90 × 47 mm
Enclosure material
Plastic
Color
Black
Operating temp
-20 … +55 °C
Storage temp (no battery)
-20 … +60 °C
Charging temp
0 … +40 °C
Humidity
10 … 95 % non-condensing
Max drop height
1.0 m
Ingress protection
IP54

Certifications

EN 55022EN 301 489EN 300 330EN 300 328EN 301 893EN 60950

EMC: EN 55022, EN 301 489, EN 300 330, EN 300 328, EN 301 893; Safety: EN 60950
