6GT2831-6BA50 Siemens

Original price $0.00 - Original price $1,957.55
Original price
$1,957.55
$0.00 - $1,957.55
Current price $1,957.55
Surplus - Tested (With Warranty)
New / Open-Box Surplus
Need a Specific Revision?
$1,957.55
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

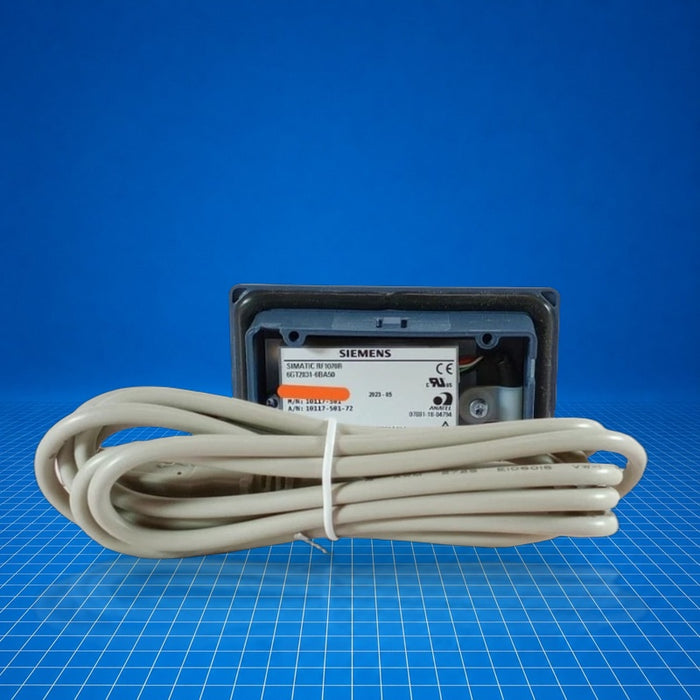

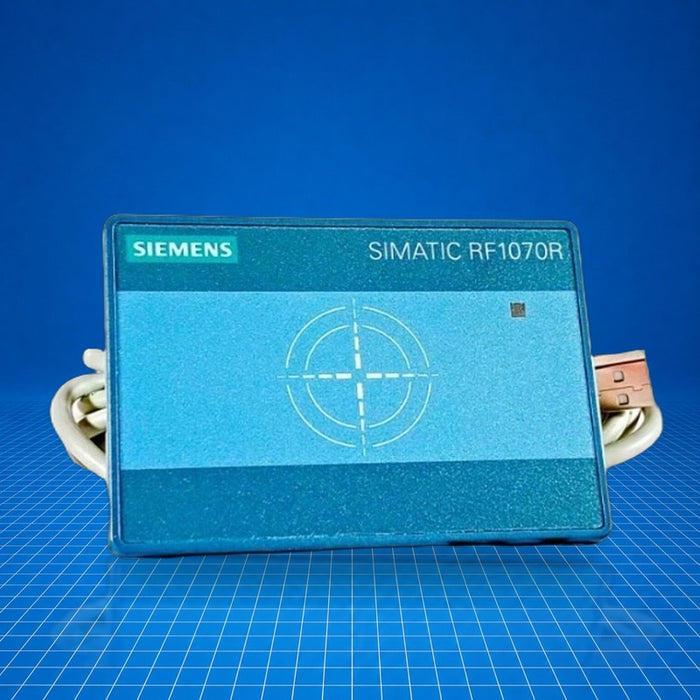

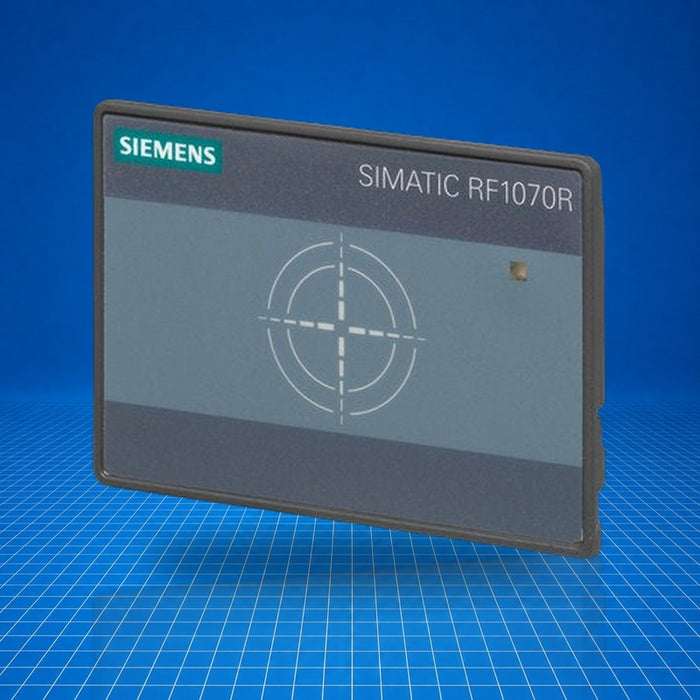

The Siemens SIMATIC RF1000 Access Control Reader RF1070R (part number 6GT2831-6BA50) is an HF RFID reader module used for reading ISO 14443 A/B, MIFARE, ISO 15693, Legic Prime, Legic Advant, Felica, NXP NTAG21x, and HID iClass transponders. It interfaces via USB 2.0 and RS-232 and installs on front panels delivering IP65 protection. The RF1070R integrates into automation systems to enable access control, user authentication, and tracking in industrial environments. Typical use cases include integration with control systems, secure access interfaces, or machine operator authentication.

Best Suited For

  • Operator authentication on control panels
  • Machine access control via RFID in industrial systems
  • Integration with PC or PLC systems over USB or RS-232
RF frequency
13.56 MHz
Max read range
30 mm
Interfaces
USB 2.0, RS-232
Operating temp.
-25 … +55 °C
Protection rating
IP65 front / IP20 rear

Technical Specifications

I/O & Electrical

Supply voltage
5 V DC
Supply voltage range
4.6 … 5.25 V
Current (typical)
0.15 A at 5 V
Current (maximum)
0.3 A at 5 V

Communication & Power

RF protocols
ISO 14443 A/B, MIFARE, ISO 15693, Legic Prime, Legic Advant, Felica, NXP NTAG21x, HID iClass
RF data rate
106 kbit/s
Serial data rate
115.2 kbit/s
Interfaces
USB 2.0, RS-232

Physical & Environmental

Dimensions (L×W×D)
90 × 62 × 25 mm
Weight
0.12 kg
Mounting
4 M4 screws, cabinet installation
Operating temperature
-25 … +55 °C
Storage/transport temperature
-25 … +55 °C
Protection class
IP65 front; IP20 rear
Shock resistance
EN 60721-3-7 Class 7 M2, 300 m/s²
Vibration resistance
50 m/s²
