6SL3055-0AA00-5CA2 Siemens
Original price
$450.00
-
Original price
$529.16
Original price
$450.00
$450.00
-
$529.16
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

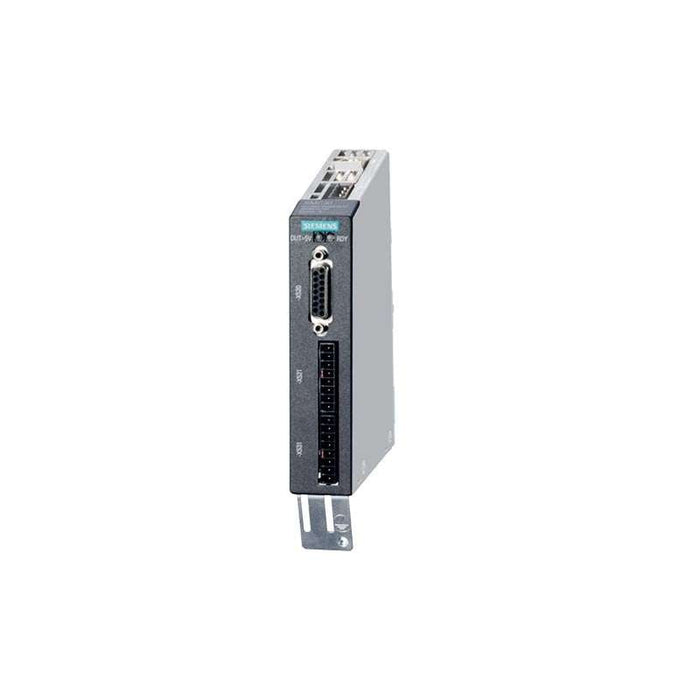

The Siemens 6SL3055-0AA00-5CA2 is a SINAMICS SMC30 cabinet-mounted sensor module that evaluates encoder signals (TTL, HTL, SSI) and transmits speed, position, and optionally motor temperature via the DRIVE-CLiQ interface to the control unit. It snaps onto a TH-35 DIN rail and integrates into SINAMICS drives such as DC MASTER and G-series for external encoder integration. Typical applications include drives without integrated encoder interface, position feedback in motor control systems, and retrofit installations requiring encoder signal evaluation.
Best Suited For
- SINAMICS DC MASTER drives requiring external encoder evaluation
- SINAMICS G-series retrofit applications lacking DRIVE-CLiQ encoder interface
- External incremental or SSI encoder integration into DRIVE-CLiQ systems
- On-train DRiVE-CLiQ position feedback modules
Encoder types supported
Incremental TTL/HTL, SSI (with/without incremental tracks)
Power supply
24 V DC (≤ 0.20 A) plus encoder supply 5 V / 24 V at 0.35 A
Maximum encoder frequency
500 kHz
DRIVE-CLiQ interface
Yes
Mounting width
30 mm
Technical Specifications
I/O & Electrical
Encoder signal types
Incremental TTL/HTL; SSI (with/without incremental signals)
Maximum encoder frequency
500 kHz
SSI baud rate
100-1000 kBaud
SSI absolute resolution
30 bit
Communication & Power
Control electronics supply (24 V DC)
≤ 0.20 A
Encoder interface supply
5 V DC or 24 V DC at 0.35 A
Maximum power loss
10 W
Physical & Environmental
Dimensions (W × H × D)
30 mm × 150 mm × 111 mm
Weight
≈ 0.45 kg
Mounting
Snap-on TH 35 DIN rail (EN 60715)
Max encoder cable length
100 m (unipolar) / 300 m (bipolar, HTL)
Grounding
PE via M4 screw
Certifications
cULus
cULus listed
