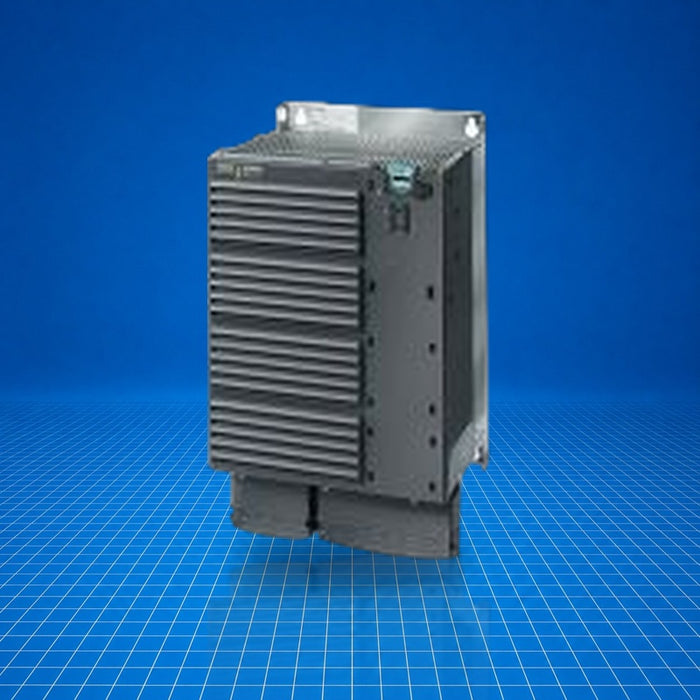

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3224-0BE33-7AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$5,025.62
Original price
$5,025.62
$0.00
-
$5,025.62
Current price
$5,025.62
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3224-0BE33-7AA0 is a SINAMICS G120 PM240 series three-phase power module with integrated Class A filter and braking chopper. It functions as the power conversion stage in variable frequency drive systems, converting 380-480 V AC to variable-frequency output current for motor control in industrial machinery. Typical uses include pump, fan, conveyor and machine tool applications requiring controlled speed and torque. The module includes overload capacity modes and mounts without the control unit or basic operator panel.
Best Suited For
- Pumps and fans requiring variable-frequency control
- Conveyors in material handling systems
- Machine tools with precise motor speed control
- Retrofit or replacement in SINAMICS G120 installations
High overload power (LO)
45 kW
High overload input current
105 A
Ambient temperature range
-10 °C to +50 °C
Enclosure rating
IP20
Weight (with filter)
23 kg
Technical Specifications
I/O & Electrical
Input voltage
380-480 V AC +10 / -10 %, 47-63 Hz
LO base load power
45 kW
LO base load input current
105 A
LO base load output current
90 A
HO base load power
37 kW
HO base load input current
90 A
HO base load output current
75 A
Power losses with filter
1.2 kW
Required cooling air flow
39 l/s
Communication & Power
Fuse (Siemens UL)
3NE1022-0
Fuse (UL Class J)
125 A / 600 V
Physical & Environmental
Ambient temperature
-10 °C to +50 °C
Protection rating
IP20 (without Control Unit/BOP)
Dimensions (HxWxD)
635 × 275 × 204 mm
Weight (with filter)
23 kg
