6XV1830-0EH10 Siemens

Original price $0.00 - Original price $1,237.50
Original price
$1,237.50
$0.00 - $1,237.50
Current price $1,237.50
Surplus - Tested (With Warranty)
New / Open-Box Surplus
Need a Specific Revision?
$1,237.50
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

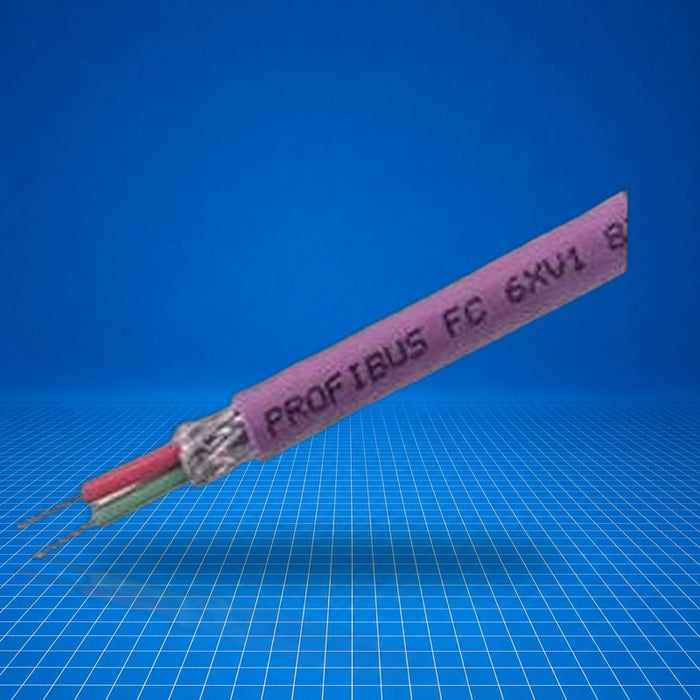

The 6XV1830-0EH10 from Siemens is a PROFIBUS FC Standard Cable GP, a 2-core shielded bus cable designed for PROFIBUS fieldbus networks in industrial automation systems. It supports permanent installations and rapid assembly. The cable is supplied by the meter with a maximum delivery length of 1000 m and a minimum order of 20 m. It is typically deployed for signal transmission in PROFIBUS communication backbones within manufacturing, process, and machine control environments.

Best Suited For

  • PROFIBUS DP/FC fieldbus installations
  • Permanent industrial cabling in control cabinets or cable trays
  • Applications requiring reliable shielded signal transmission over distance
  • Environments with temperature extremes (-40 … +75 °C)
Cores
2
Impedance
150 Ω rated
Outer diameter
8 mm
Temperature range
-40 … +75 °C
Flame rating
IEC 60332-3-24 (Category C), UL 1685 (CSA FT 4)

Technical Specifications

I/O & Electrical

Impedance (rated)
150 Ω
Attenuation at 16 MHz (max)
0.042 dB/m
Loop resistance (max)
110 mΩ/m
Shield resistance (max)
9.5 Ω/km
Capacitance at 1 kHz
28.5 pF/m
Operating voltage (RMS)
80 V

Physical & Environmental

Cores
2
Shield
Al-clad foil + braided tin-plated copper
Conductor diameter
0.65 mm
Insulation thickness
2.55 mm
Inner sheath diameter
5.4 mm
Outer sheath diameter
8 mm
Bending radius (single/multiple)
37.5 mm / 75 mm
Max tensile load
100 N
Weight per length
78 kg/km
Temperature range (all)
-40 … +75 °C
Fire behaviour
IEC 60332-3-24 (Category C), UL 1685 (CSA FT 4)
Oil resistance
to mineral oil per IEC 60811-2-1 (4 h/70 °C)
Grease / Water resistance
conditional
UV resistance
resistant
Insulation material
PE; inner sheath PVC; outer sheath PVC
Wire-insulation color
red/green
Cable sheath color
violet

Certifications

CERoHSUL/ETLEAC
