7KM4212-0BA00-2AA0 Siemens
Sold out
Original price
$0.00
-
Original price
$2,425.50
Original price
$2,425.50
$0.00
-
$2,425.50
Current price
$2,425.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

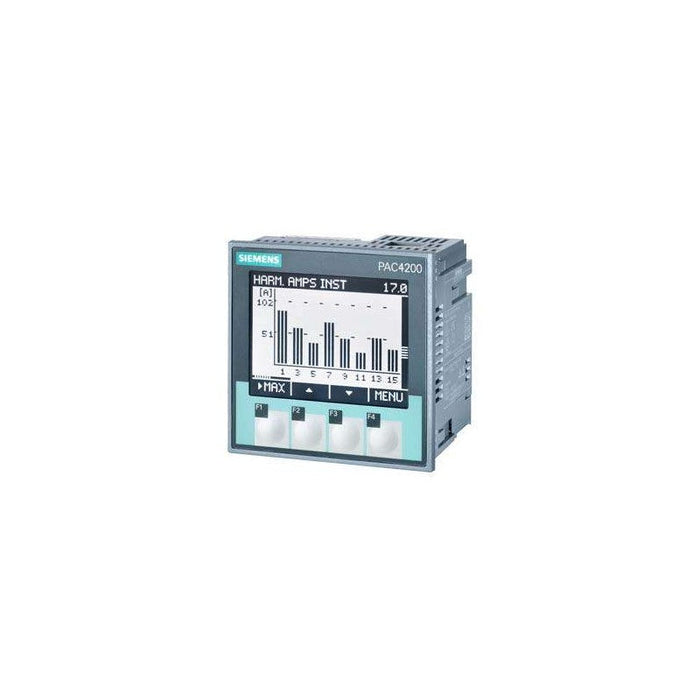

The 7KM4212-0BA00-2AA0 is a Siemens SENTRON PAC4200 compact power-quality measuring device. Designed for three-phase electrical networks, it monitors voltage, current, frequency, active/reactive/apparent energy, power factor and harmonics up to the 64th order, providing TRMS readings. It integrates into control systems via Modbus TCP, with optional Modbus RTU, PROFINET, PROFIBUS, or digital I/O. Powered from wide-range AC/DC supplies, it is suited to panel-based installations in industrial monitoring and power-quality diagnostics.
Best Suited For
- Panel-mounted power-quality monitoring
- Three-phase energy metering in industrial installations
- Integration via Modbus TCP or optional fieldbus protocols
- Monitoring harmonics and power factor in electrical distribution
Supply voltage
95…240 V AC / 110…340 V DC
Display
LCD 54 mm × 72 mm
Communication
Modbus TCP, optional Modbus RTU / PROFINET / PROFIBUS / DI/DO
Measurement scope
Voltage, current, active/reactive/apparent energy, cos phi, THD, harmonics to 64th
Front protection
IP65
Technical Specifications
Communication & Power
Supply voltage (AC)
95…240 V AC
Supply voltage (DC)
110…340 V DC
Communication interfaces
Modbus TCP; optional Modbus RTU / PROFINET / PROFIBUS / DI/DO
Physical & Environmental
Display size
54 mm (H) × 72 mm (W)
Front degree of protection
IP65
Mounting
Panel-mounted in closed rooms
