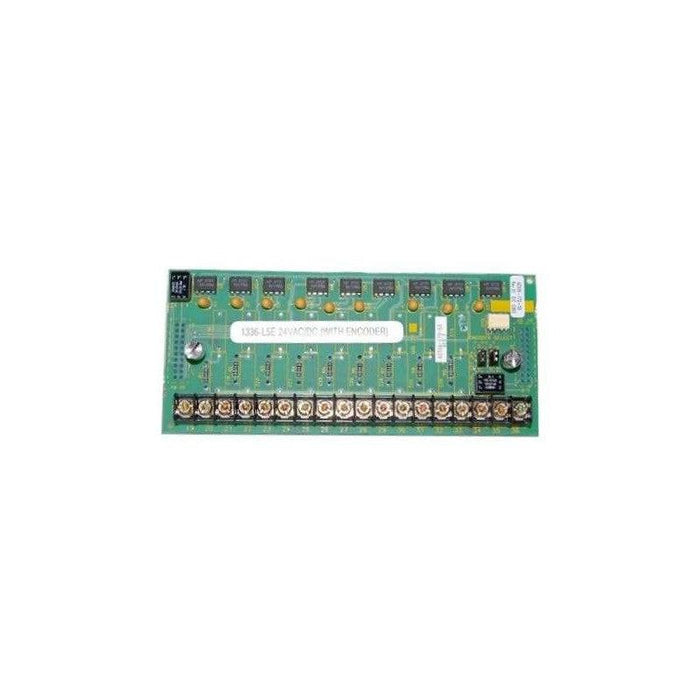

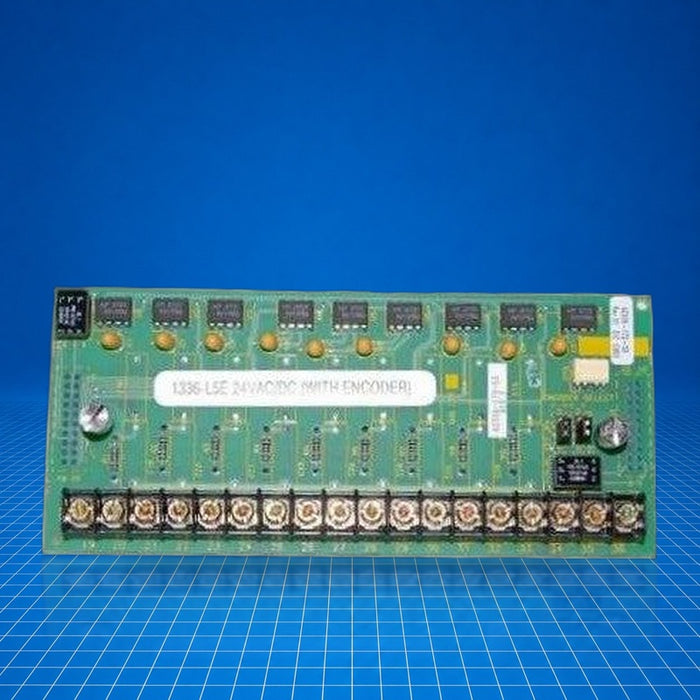

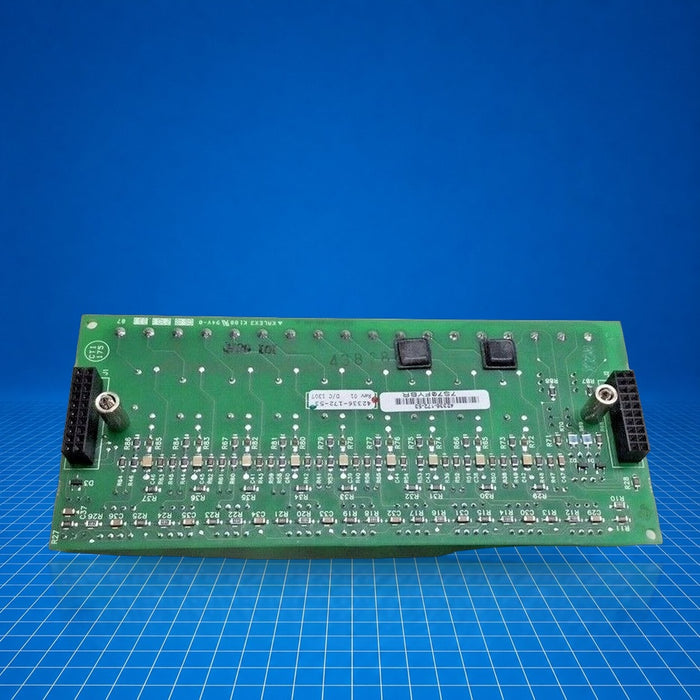

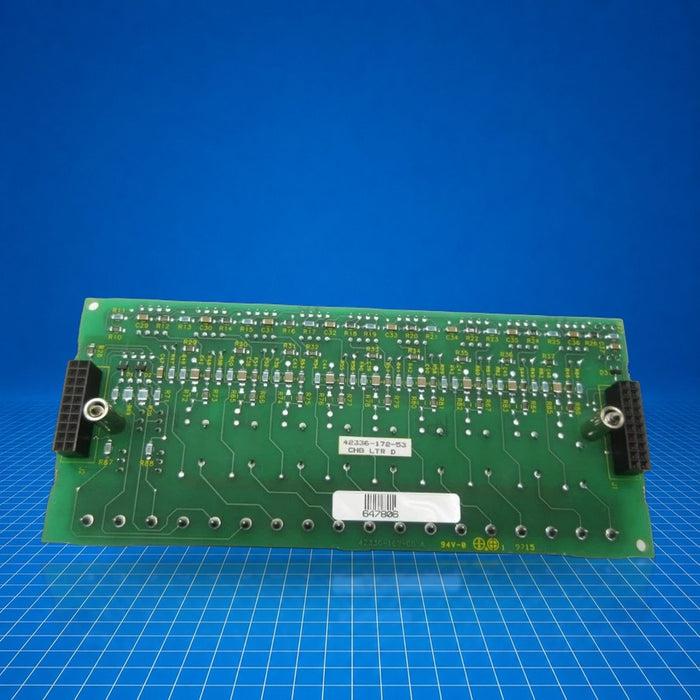

1336-L5E Allen-Bradley
Original price
$445.00
-
Original price
$1,312.50
Original price
$445.00
$445.00
-
$1,312.50
Current price
$445.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

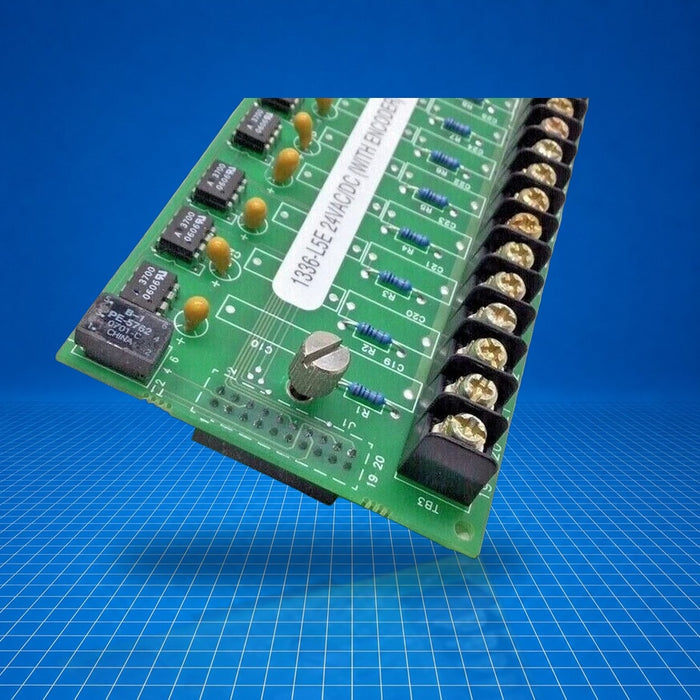

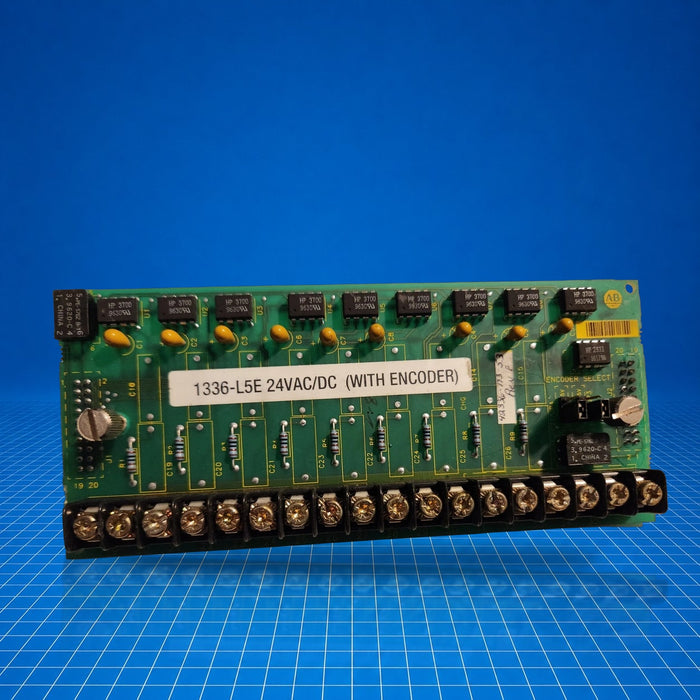

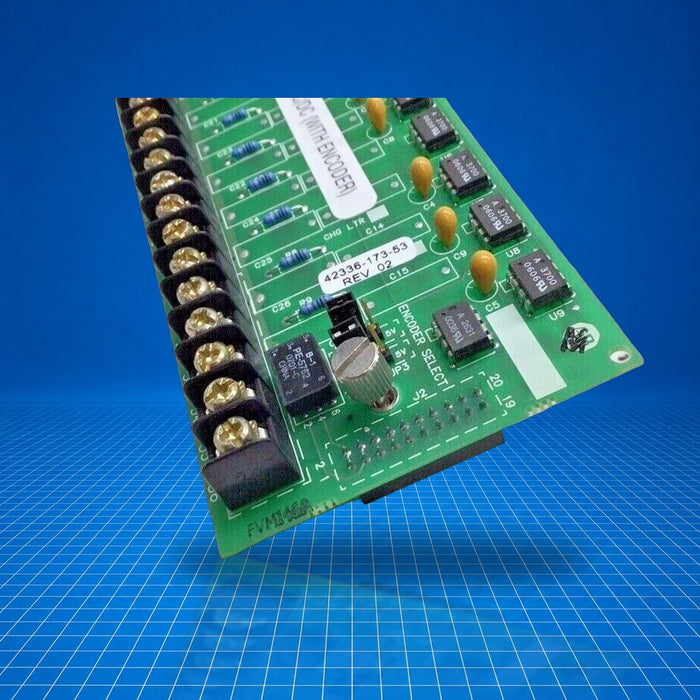

Product Overview
The 1336-L5E is an Allen-Bradley 24 V AC/DC control interface module (option board) for the 1336 Adjustable Frequency AC Drive family. It attaches to the TB3 control interface connector on 1336 Plus, Force, Impact drives and supplies discrete logic inputs and encoder feedback capability when installed. It enables control commands (e.g. start/stop, direction, jog) and encoder inputs in motor control systems for manufacturing machines, conveyors, or process equipment. Part number 1336-L5E.
Best Suited For
- Adding encoder feedback to 1336 Adjustable drives
- Installing on-field discrete control inputs (start, stop, direction)
- Use with 1336 Plus, Force, Impact series drives (Frames A-H)
- Industrial motor control requiring discrete signal interfacing
Voltage
24 V AC/DC
Mounted on
TB3 control interface on 1336 drives
Encoder inputs
Yes, A/B and complements
Discrete inputs
Multiple configurable logic inputs
Operating temperature
0 to 40 °C
Technical Specifications
I/O & Electrical
Input voltage
24 V AC/DC
Logic Low max voltage (DC)
≤ 8 V DC, leakage < 1.5 mA @ 2.5 kΩ
Logic Low max voltage (AC)
≤ 10 V AC, leakage < 2.5 mA @ 2.5 kΩ
Logic High voltage
+20 to +26 V (AC/DC), ~10 mA per input
Communication & Power
Logic inputs
Discrete configurable via TB3
Encoder inputs
Encoder A, B, /A, /B via TB3
Supply current (encoder + inputs)
~10 mA per input (High)
Physical & Environmental
Operating temperature
0 to 40 °C
Storage temperature
-40 to 70 °C
Relative humidity (operating)
5% to 95%, non-condensing
Installation altitude
Up to 1000 m
Weight
0.31 lb (0.14 kg)
