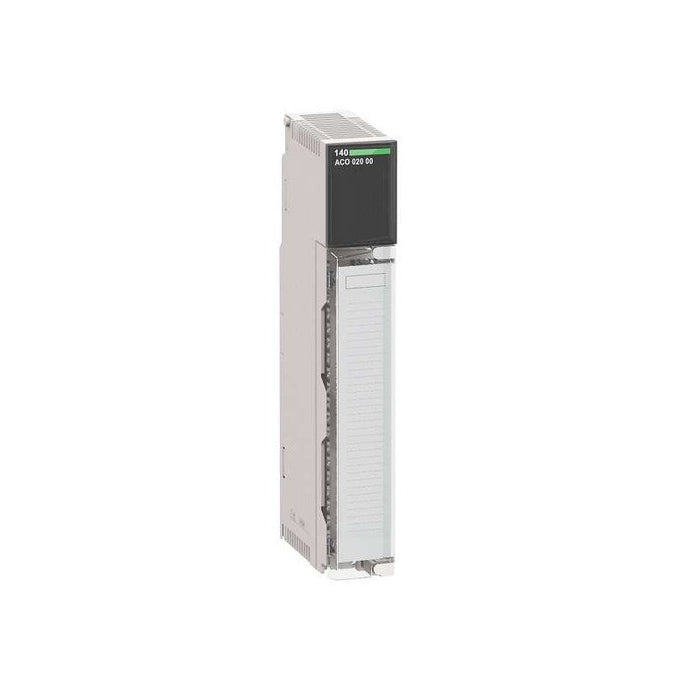

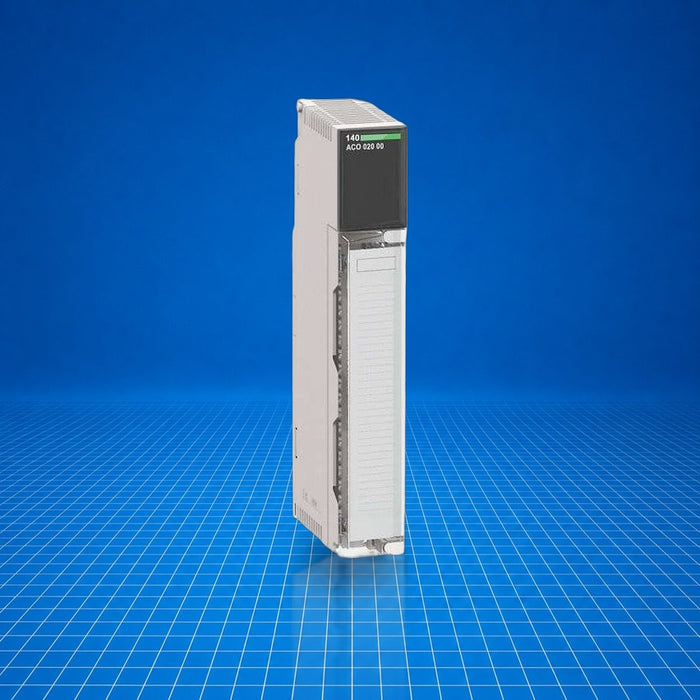

140-ACO-020-00 Schneider
Original price
$588.00
-
Original price
$2,849.00
Original price
$588.00
$588.00
-
$2,849.00
Current price
$588.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 140-ACO-020-00 is an analog output module from Schneider Electric's Modicon Quantum platform. It provides four bipolar current outputs (4-20 mA) with 12-bit resolution. Installed on DIN-rail or panel mount, it interfaces a control system with analog actuators or process loops. This module is used to generate analog control signals for valves, I/P transducers, or analog process instrumentation in industrial control systems. The 140-ACO-020-00 integrates into Modicon Quantum racks and communicates over the Quantum backplane.
Best Suited For
- Modicon Quantum control systems requiring analog output control
- Generating 4-20 mA signals for field actuators or I/P converters
- Panel-mounted or DIN-rail modular control cabinets
- Applications requiring fine resolution analog signaling (12-bit)
Outputs
4 analog 4-20 mA
Resolution
12 bits
Mounting
DIN-rail or panel mount
Operating temperature
0°C to 60°C
External loop voltage
12-30 V DC
Technical Specifications
I/O & Electrical
Number of outputs
4
Output type
4-20 mA bipolar current
Resolution
12 bits
Communication & Power
Mounting type
DIN-rail or panel mount
External loop voltage
12-30 V DC
LED indicators
Yes
Physical & Environmental
Operating temperature
0°C to 60°C
Relative humidity
5% to 95% non-condensing
Weight
2.00 lbs (0.91 kg)
