Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

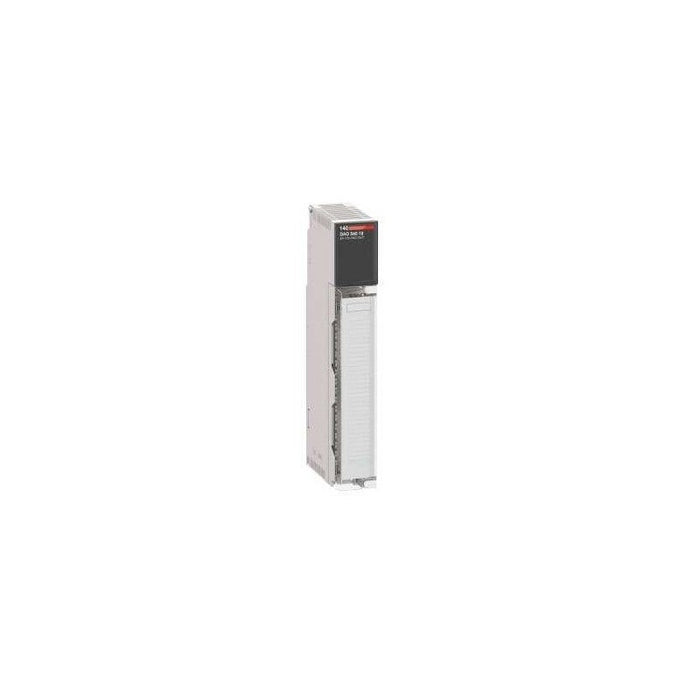

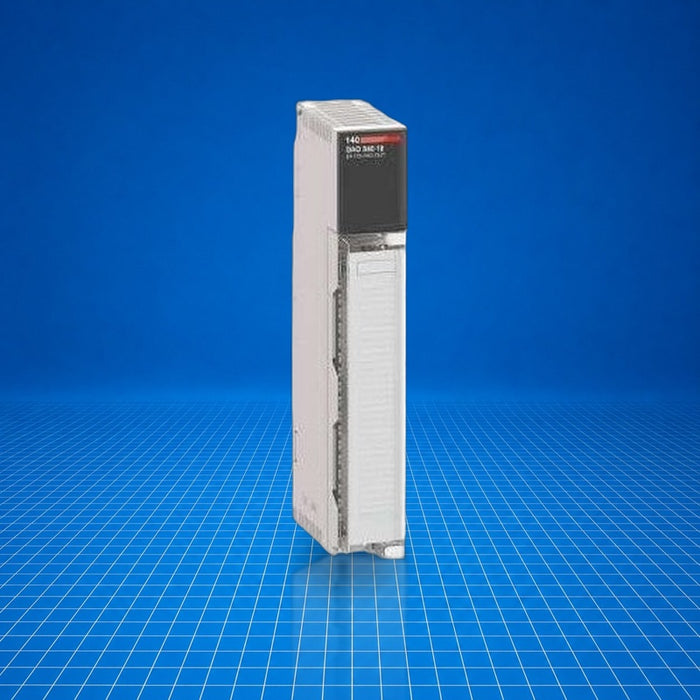

The 140DAO84210 from Schneider Electric is a discrete output module in the Modicon Quantum automation platform. It provides 16 AC discrete outputs operating between 83 - 253 V AC and requires one output word for addressing. Designed for control and signal switching tasks in automation systems, it integrates into Quantum racks and is suited for industrial applications including machine control, batch processing, and sequential logic. 140DAO84210 is discontinued (end of commercialization: December 31, 2022) but remains serviceable until December 31, 2030.
Best Suited For
- Modicon Quantum control racks
- AC load switching up to 253 V AC
- Machine control applications
- Sequential logic discrete output tasks
Channels
16
Output voltage range
83-253 V AC
Addressing
1 output word
Status
Discontinued (Dec 31, 2022), Maintenance till Dec 31, 2030
Technical Specifications
I/O & Electrical
Number of outputs
16 channels
Output voltage range
83-253 V AC
Addressing requirement
1 output word
Communication & Power
Bus current required
350 mA
Power dissipation
1.85 W + (1.1 × total module load current)
Physical & Environmental
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C
Mounting
Rack mountable
Certifications
UL 508CSA 22.2-142FM Class 1 Div. 2
Approvals include UL 508, CSA 22.2-142, FM Class 1 Div. 2
