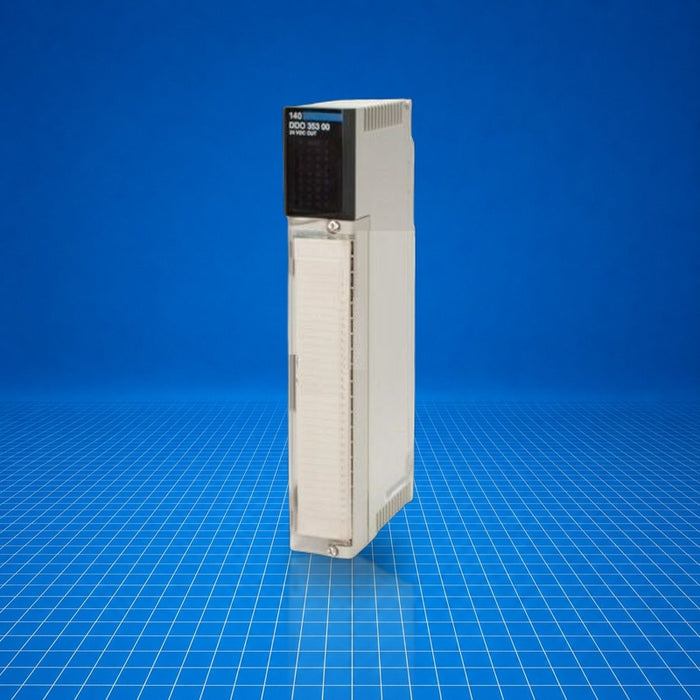

140DDO35300 Schneider
Original price
$318.00
-
Original price
$357.00
Original price
$357.00
$318.00
-
$357.00
Current price
$357.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 140DDO35300 is a discrete output module in the Modicon Quantum family by Schneider Electric. It provides thirty-two solid-state sourced outputs organized in four groups, each group requiring two output words. It integrates into Quantum racks for control system actuation of loads across automation, process, and utility applications. The module handles a 24 V DC output voltage and supports diagnostics via status byte as referenced in technical documentation.
Best Suited For
- Modicon Quantum control architectures
- Discrete load actuation (e.g. valves, relays)
- Rack-based automation expansions
- Legacy system maintenance and spare strategies
Channels
32
Output voltage
24 V DC
Max load per group
4 A
Total module load
16 A
Operating temp range
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Discrete output voltage
24 V DC
Output voltage limits
19.2 to 30 V DC
Output logic
Positive (Source)
Number of channels
32
Groups of channels
4
Addressing requirement
2 output words
Maximum leakage current
0.4 mA at 30 V
Maximum load current per group
4 A
Maximum load current per module
16 A
Required bus current
330 mA
Physical & Environmental
Operating temperature range
0 °C to 60 °C
Storage temperature range
-40 °C to 85 °C
Maximum relative humidity
95% without condensation
Mounting type
Rack mountable
Weight
0.91 kg (2.00 lbs)
Certifications
CE
CE marking noted; other certifications not specified in sources.
