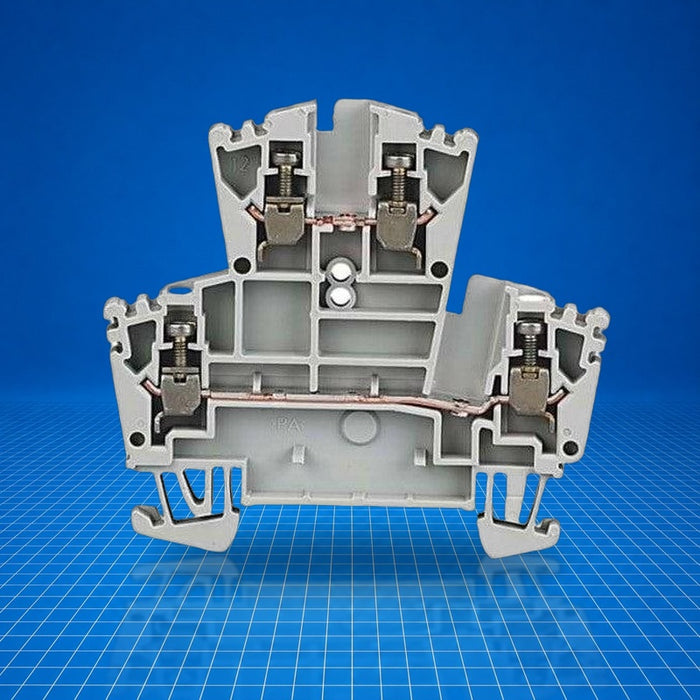

1492-JD3 Allen-Bradley

Name: 1492-JD3 Allen-Bradley
Brand: Allen Bradley
Price: 432.0 USD
Availability: InStock

$420.00 - $432.00

$432.00

$420.00 - $432.00

$432.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1492-JD3 is an Allen-Bradley 1492 Wiring System two-circuit, double-level, screw-connection feed-through terminal block supporting sizes up to 2.5 mm². It provides reliable electrical terminations for control panels, field wiring, and distribution systems. As part of the 1492-JD family, it fits standard DIN-rail configurations and enables compact, organized wiring of up to two circuits per block. This terminal block is suitable for industrial control systems requiring segregation of signals or power wiring.

Best Suited For

Control panel wiring for dual circuits
Galvanized DIN-rail assemblies
Division of power and signal conductors
On-machine modular installations

Wire Capacity

Up to 2.5 mm² / #22-12 AWG

Voltage Rating

600 V AC/DC (UL), 300 V AC/DC (CSA), 400 V AC/DC (IEC), 275 V AC/DC (ATEX)

Current Rating

20 A (UL), 10 A (CSA), 24 A (IEC), 21 A (ATEX)

Terminal Size

5.1 × 69 × 55.5 mm

Mounting Pitch Density

59 pcs/ft

Technical Specifications

I/O & Electrical

Wire Size Range

UR: #22…12 AWG; CSA: #26…12 AWG; IEC: 2.5 mm²; ATEX: 20…14 AWG

Voltage Rating

600 V AC/DC - UL; 300 V AC/DC - CSA; 400 V AC/DC - IEC; 275 V AC/DC - ATEX

Maximum Current

20 A (UL), 10 A (CSA), 24 A (IEC), 21 A (ATEX)

Wire Strip Length

0.39 in. (10 mm)

Recommended Tightening Torque

4.5…7.1 lb·in (0.5…0.8 N·m)

Physical & Environmental

Terminal Size (L × W × H)

5.1 × 69 × 55.5 mm (0.20 × 2.72 × 2.19 in)

Density

59 pcs/ft (196 pcs/m)

Housing Temperature Range

-58…+248 °F (-50…+120 °C)

Certifications

UL ListedCSAIECATEXCCCIECExEEC

Certified to UL (UL Listed), CSA, IEC, ATEX, China CCC, IECEx, Eurasion Economic Community schemes as of 2026-05-19.
