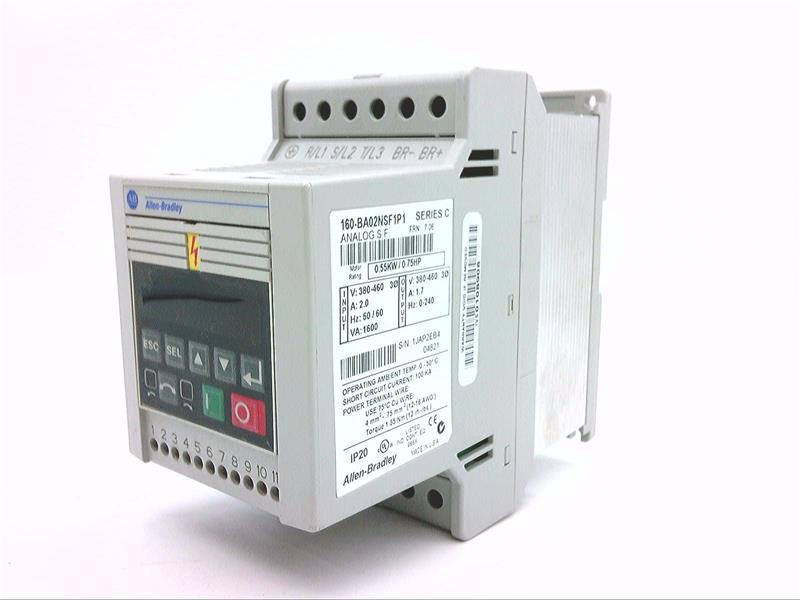

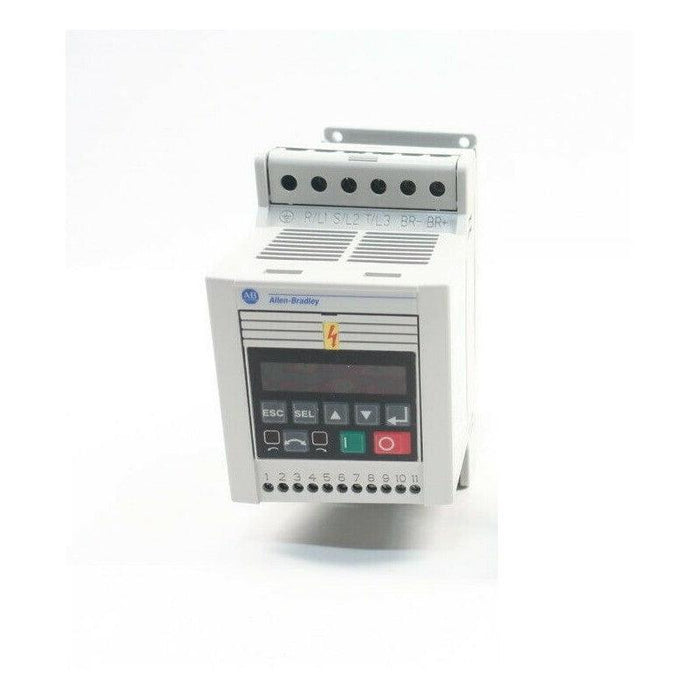

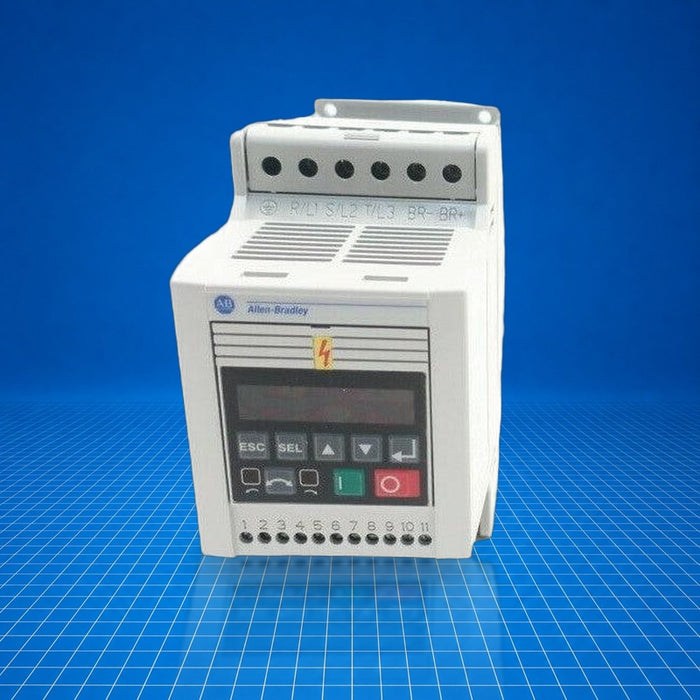

160-BA02NSF1P1 Allen-Bradley
Original price
$419.96
-
Original price
$1,086.25
Original price
$419.96
$419.96
-
$1,086.25
Current price
$419.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 160-BA02NSF1P1 is an Allen-Bradley Bulletin 160 SSC (Series C) variable speed drive designed for 3-phase, 380-460 V AC input applications. Rated at approximately 0.55 kW (¾ HP) with a maximum output current of 1.7 A and power dissipation of 30 W, it serves as a motor speed controller in industrial systems. It integrates into SSC drive installations for conveyor, fan, pump, and other small motor-driven equipment, offering controlled speed and motor protection. 160-BA02NSF1P1 is part of the 160-BA02 family of drives.
Best Suited For
- Small three-phase motor speed control (0.55 kW / ¾ HP)
- Conveyor or pump variable-frequency control
- Fan drive applications at 380-460 V
- SSC drive retrofit projects
Input voltage
380-460 V AC 3-phase
Output motor rating
0.55 kW (¾ HP)
Max output current
1.7 A
Power dissipation
30 W
Technical Specifications
I/O & Electrical
Input voltage
380-460 V AC 3-phase
Operational voltage range
340-506 V
Output motor rating
0.55 kW (¾ HP)
Maximum output current
1.7 A
Communication & Power
Power dissipation
30 W
Certifications
UL ListedcULusIP20

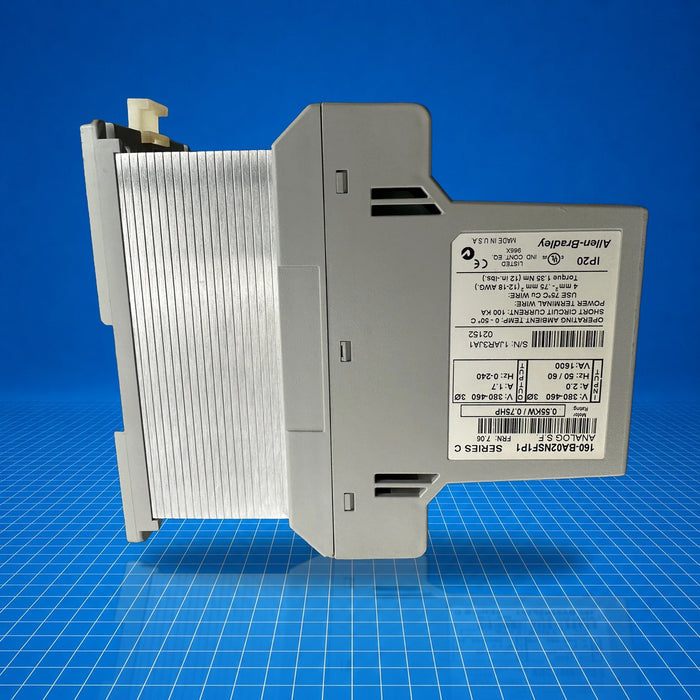

Enclosure rating per nameplate: IP20; UL Listed industrial control equipment (C US) per nameplate.
