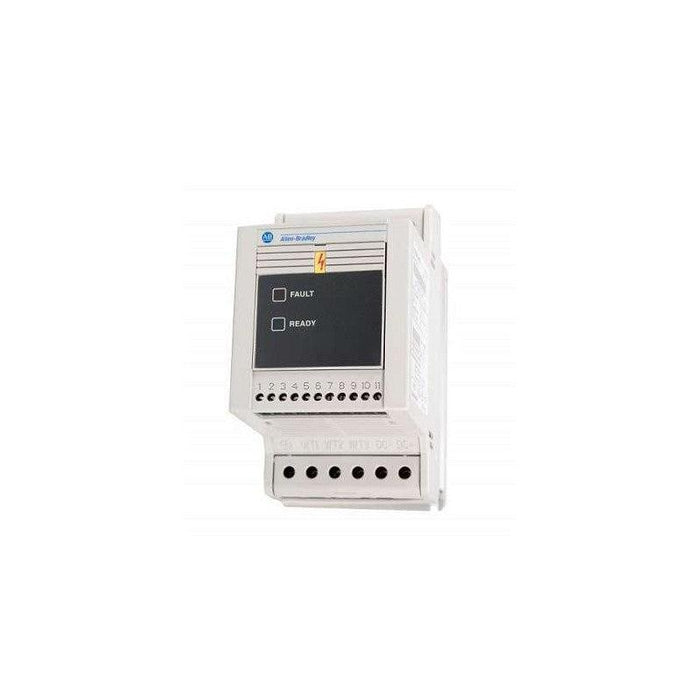

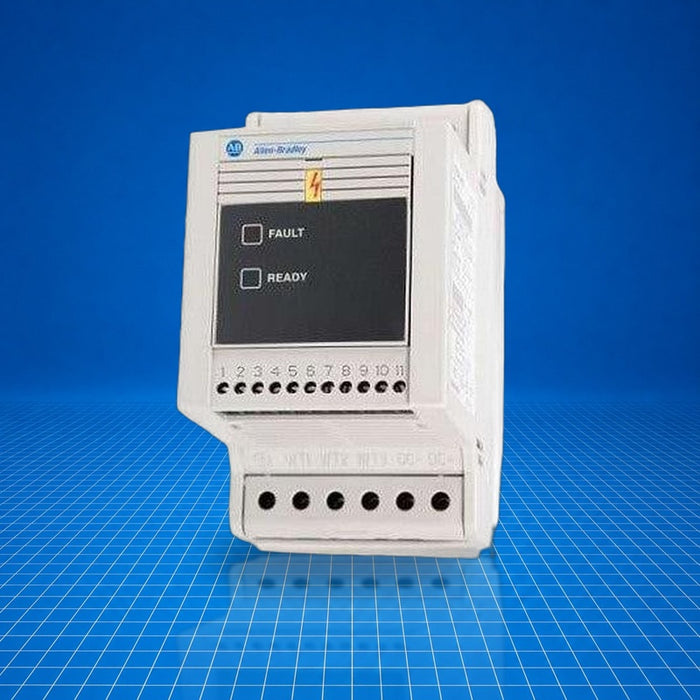

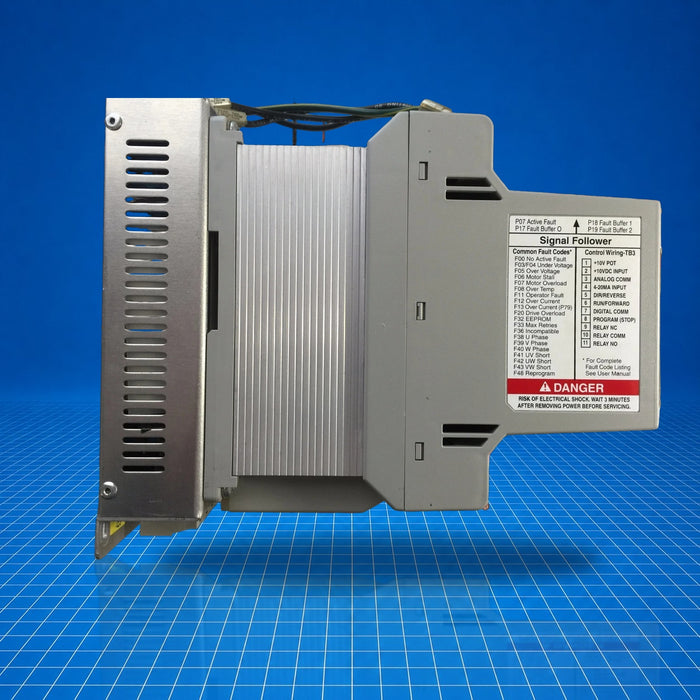

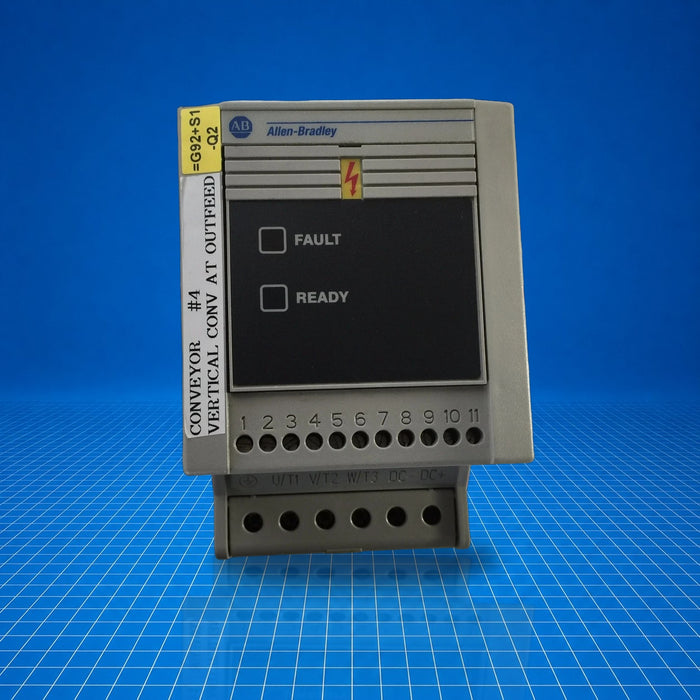

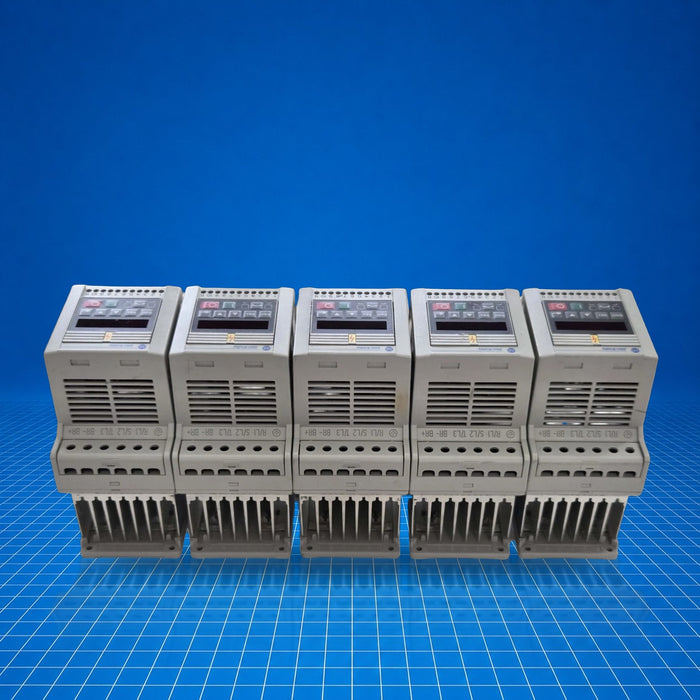

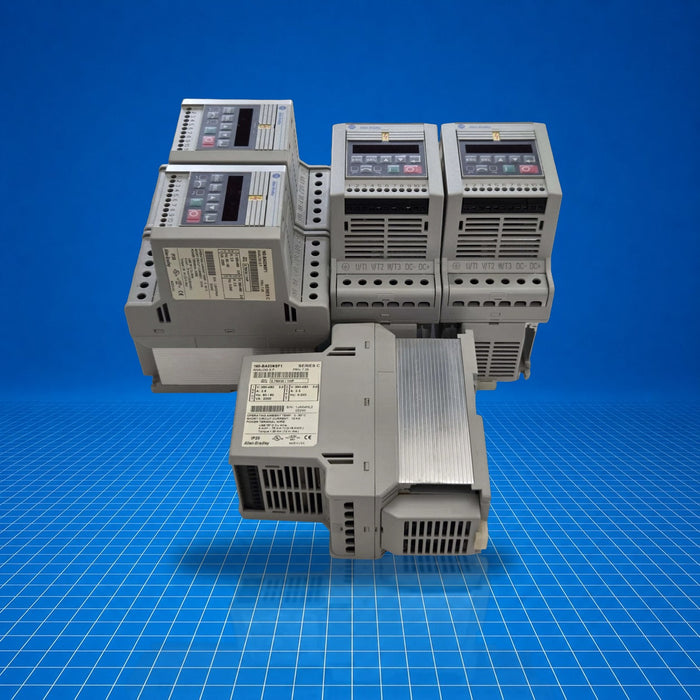

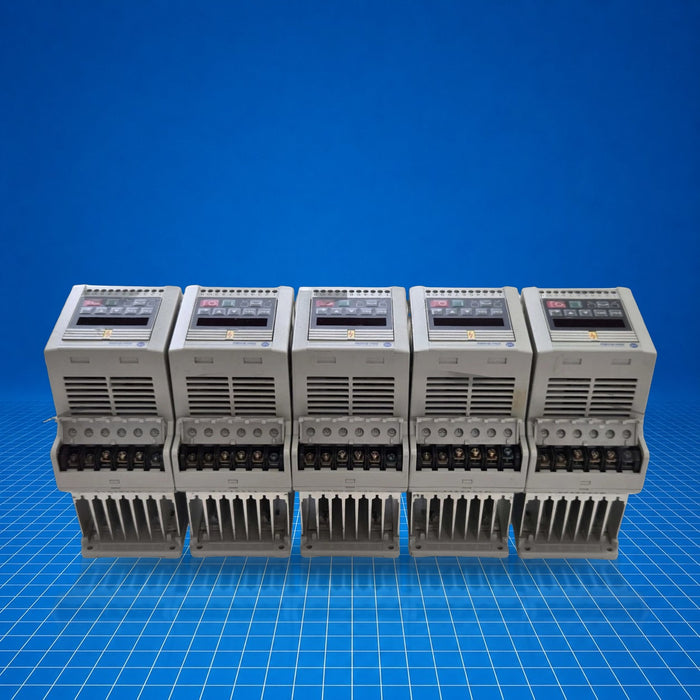

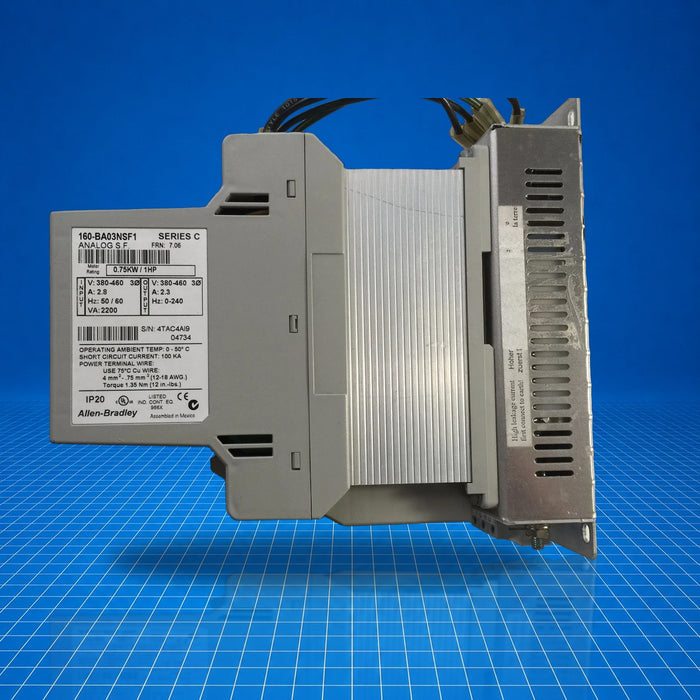

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
160-BA03NSF1 Allen-Bradley
Original price
$450.00
-
Original price
$1,375.00
Original price
$450.00
$450.00
-
$1,375.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 160-BA03NSF1 is an Allen-Bradley 160 SSC series variable-speed AC drive used to control the speed of low-horsepower three-phase induction motors. It operates as an analog signal follower, accepting external potentiometer or analog input (-10 to +10 VDC or 4-20 mA) speed reference. The device supports input voltages of 380-460 VAC and delivers up to 2.3 A output at frequencies up to 240 Hz, typical for machine tool and conveyor motor control in legacy control system retrofits.
Best Suited For
- Retrofit of existing 0.75 kW / 1 HP motor drives
- Analog-signal speed control applications
- OEM machine installations requiring DIN-rail mount
- Laboratory or bench-scale motor control setups
Input voltage range
380-460 VAC (3-phase)
Output current
2.3 A
Control type
Analog signal follower (-10 V to +10 V or 4-20 mA)
Enclosure
Open (IP20)
Technical Specifications
I/O & Electrical
Motor power rating
0.75 kW (1 HP)
Frequency range
0-240 Hz
Analog input signal type
Potentiometer (1 K-10 K Ω, ≥2 W) or -10 … +10 VDC or 4-20 mA
Communication & Power
Input current
2.8 A
Operational input range
340-506 VAC
Power dissipation
37-40 W
Physical & Environmental
Mounting
DIN-rail (35 mm) or vertical flat surface
Operating temp
0-50 °C
Storage temp
-40 … 85 °C
Humidity
0-95 % non-condensing
Vibration (operating)
Up to 1 g
Shock (operating)
15 g
Dimensions (HxWxD)
6 × 2.83 × 5.4 in
Weight
1.76 lb (0.8 kg)
Altitude
Up to 3,300 ft without derating
