160-BA04NPS1P1 Allen-Bradley

Original price $437.96 - Original price $2,204.98
Original price
$437.96
$437.96 - $2,204.98
Current price $437.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$437.96
7 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,204.98
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (7) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

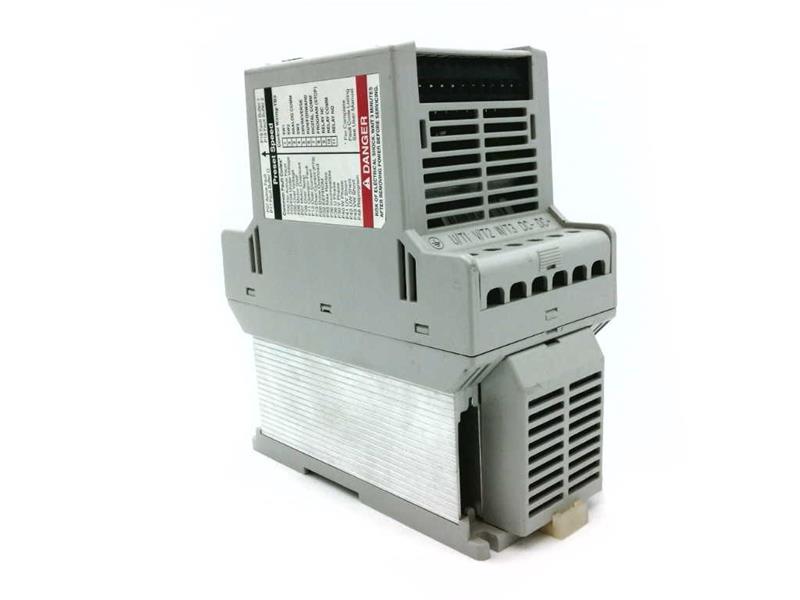

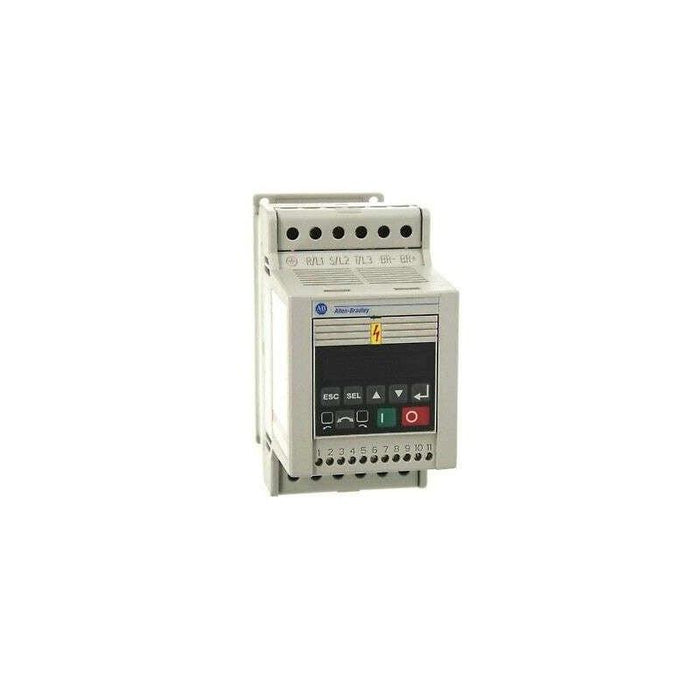

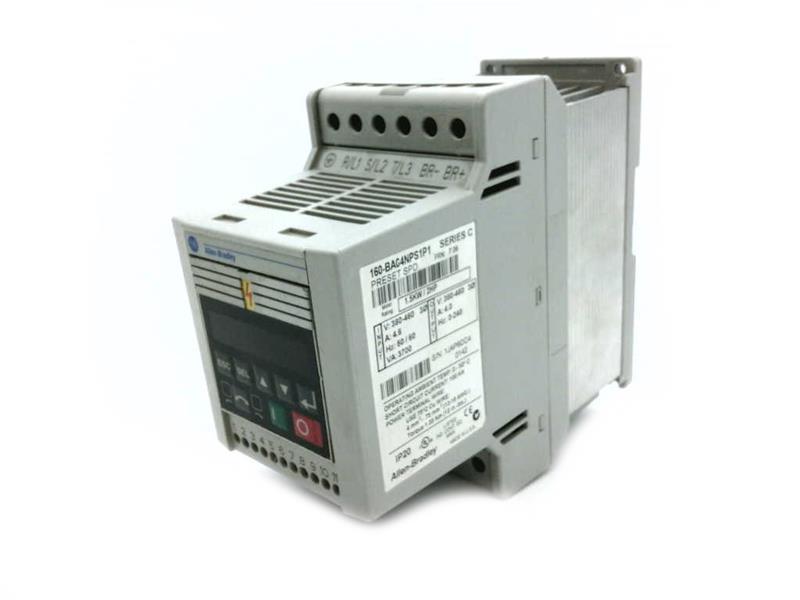

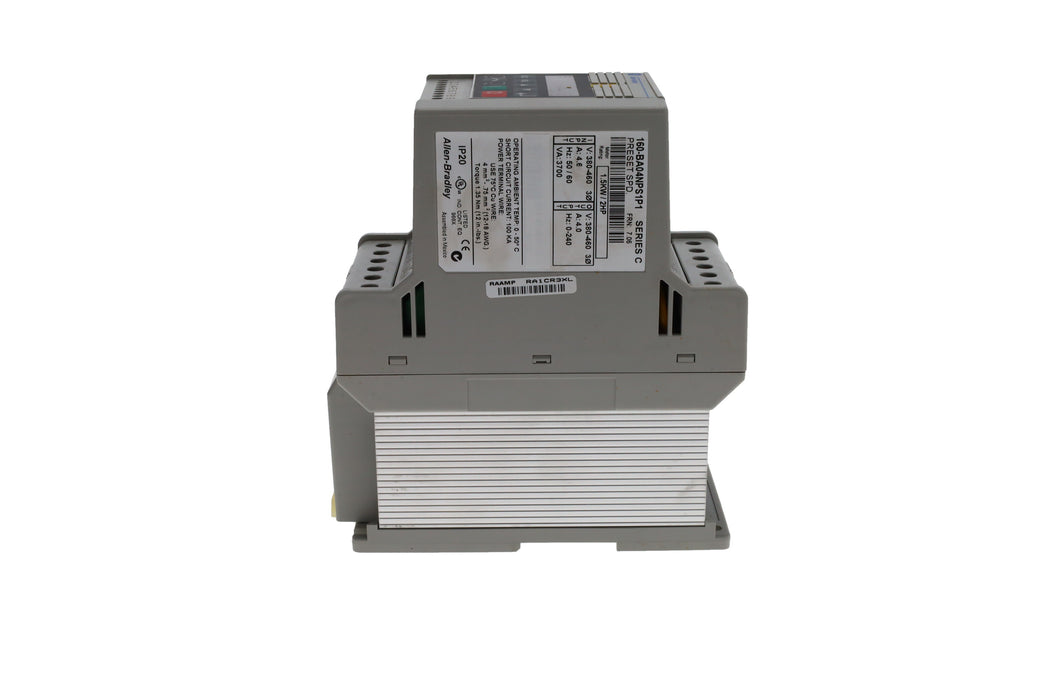

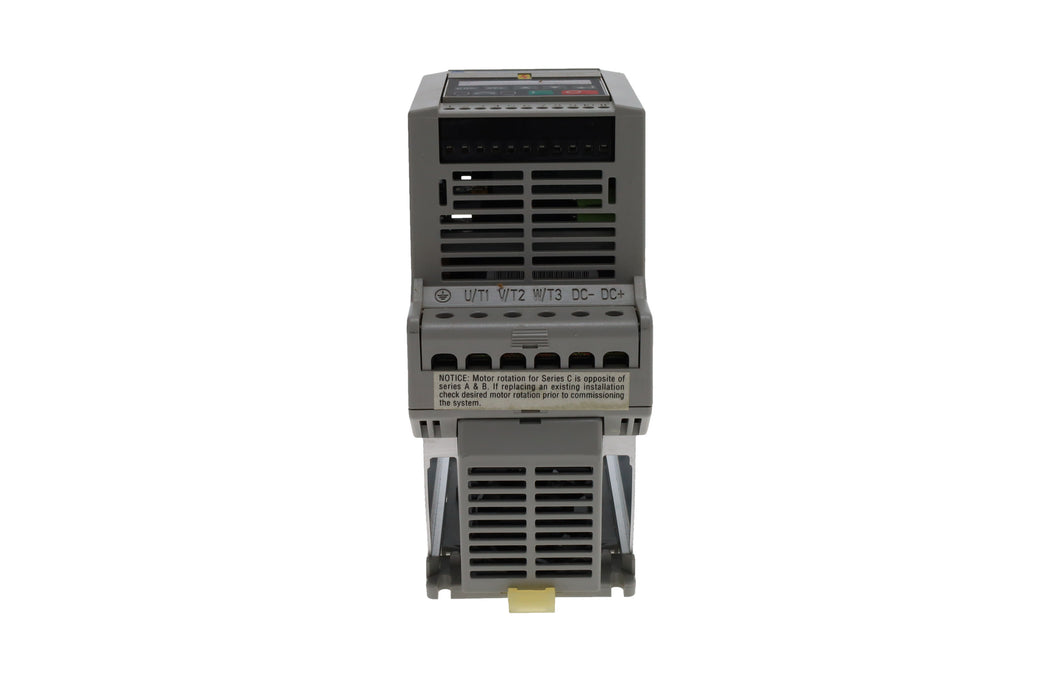

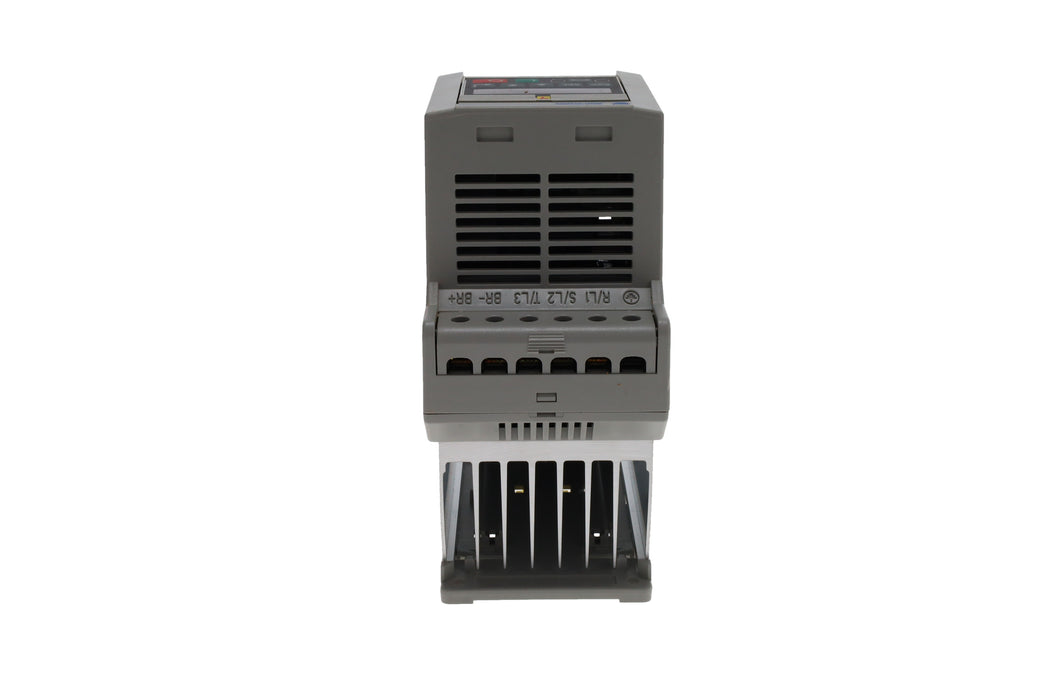

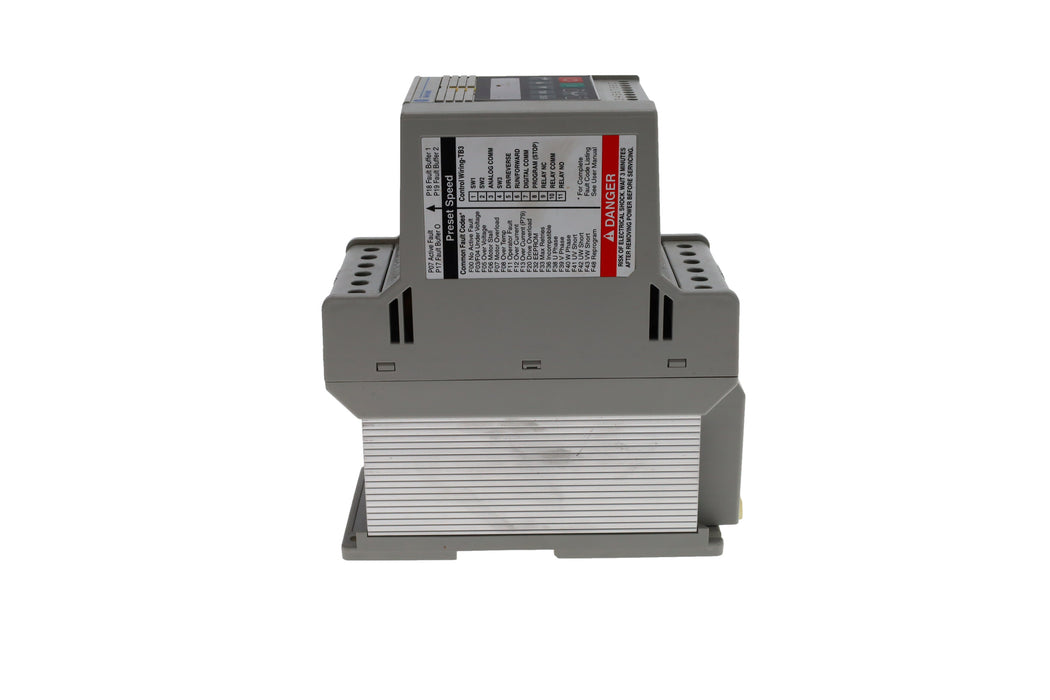

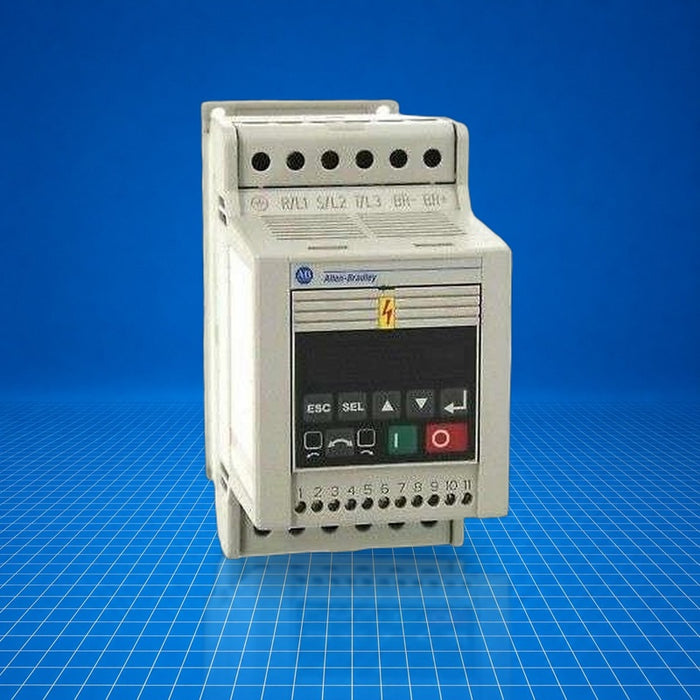

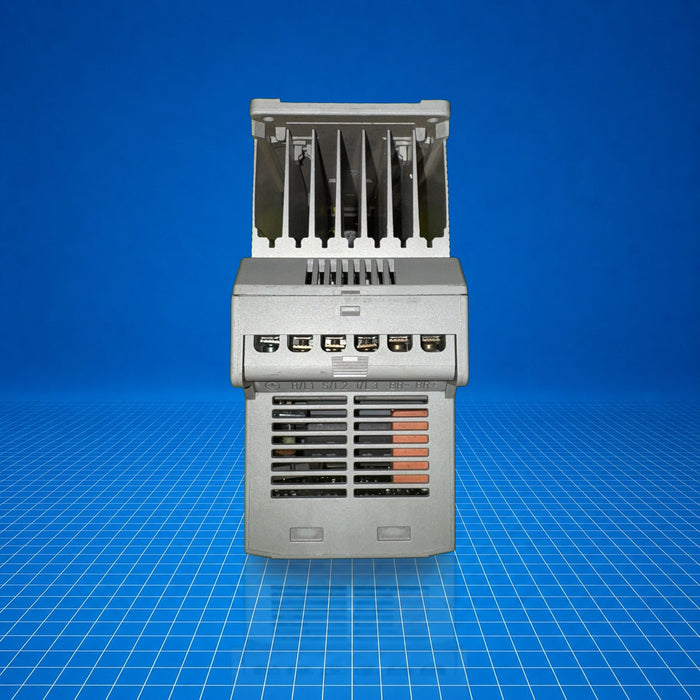

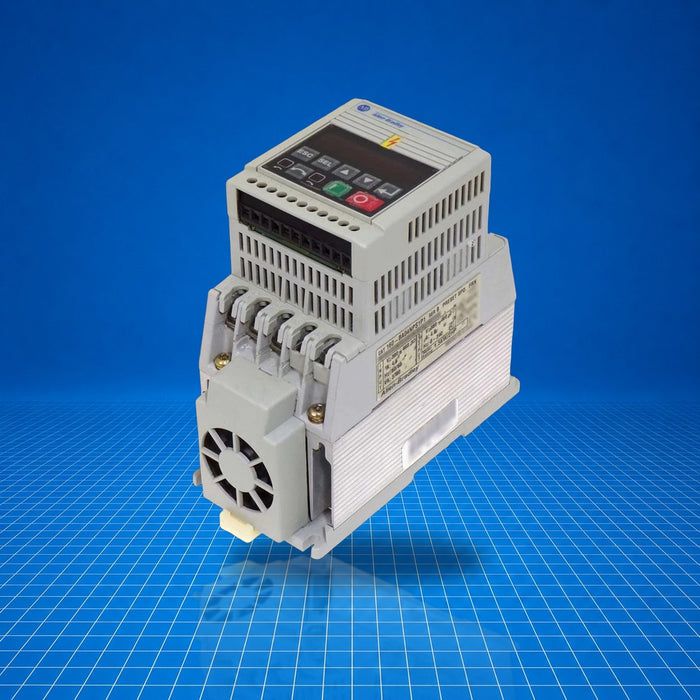

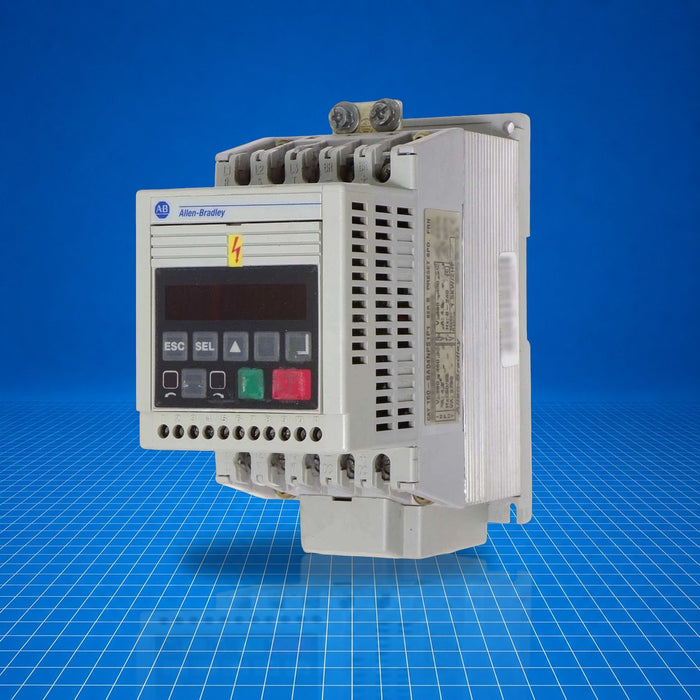

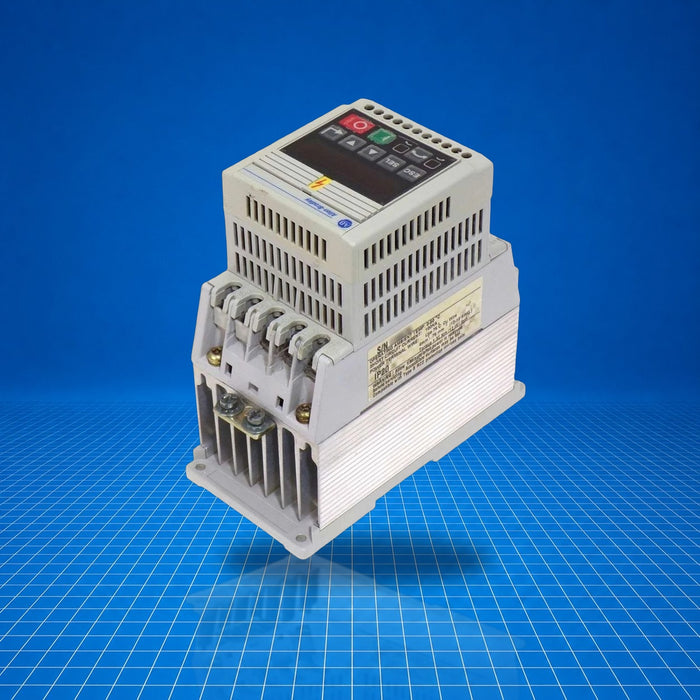

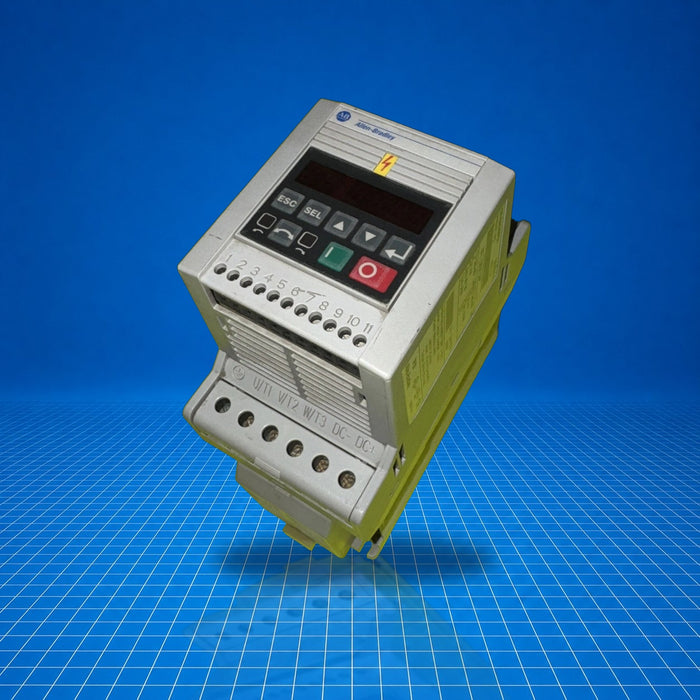

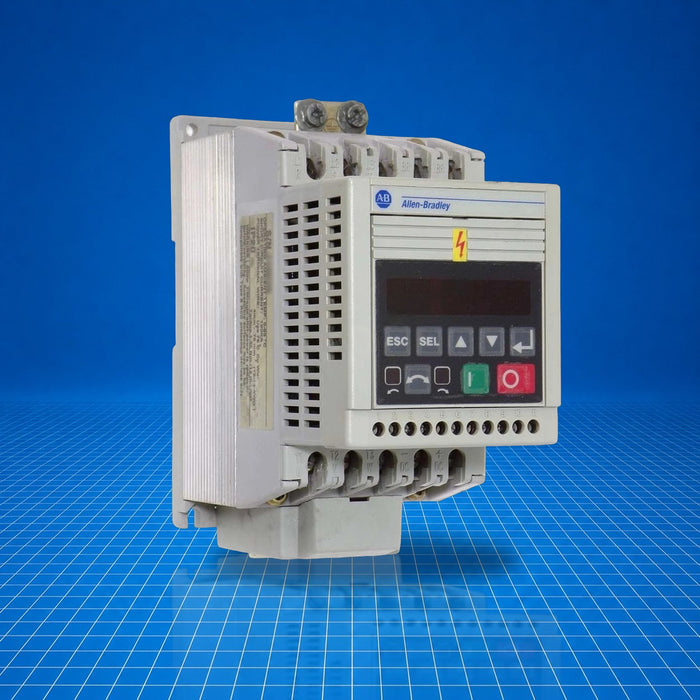

The 160-BA04NPS1P1 is a Bulletin 160 SSC (Smart Speed Controller) variable-speed drive from Allen-Bradley. It is a preset-speed, three-phase V/Hz drive designed for controlling 3-phase AC motors in industrial control systems. Mounted in an open (IP20) enclosure, it includes a program keypad module for local configuration and operation. The part integrates into control panels and on-machine installations to provide preset speed selection, leveraging Allen-Bradley control architectures. Part number 160-BA04NPS1P1.

Best Suited For

  • Preset speed control of 3-phase motors
  • Integration into Bulletin 160 SSC motor control systems
  • DIN-rail or panel mounting in control cabinets
  • Local programming via keypad module
  • Replacement in discontinued Bulletin 160 Series C drives
Input voltage
380-460 VAC 3-Phase
Max. output power
2.0 HP / 1.5 kW
Max. output current
4.0 A
Enclosure rating
Open (IP20)
Control method
V/Hz preset-speed

Technical Specifications

I/O & Electrical

Input voltage
380-460 VAC 3-Phase
Operational input voltage range
340-506 VAC AC
Input current
4.6 A
Max. output current
4.0 A
Output power
2.0 HP / 1.5 kW
Power dissipation
40 W

Communication & Power

Cooling method
Fan
Programmer interface
Program keypad module (6-digit, 7-segment LED; 5 programming keys; LEDs for mode and direction)
Control method
Volts/Hertz preset-speed (V/Hz)
Output frequency range
0-240 Hz
Preset speed inputs
Open-collector inputs, parameters 61-68 define up to 8 speeds

Physical & Environmental

Enclosure type
Open (IP20), NEMA/UL Type Open
Mounting

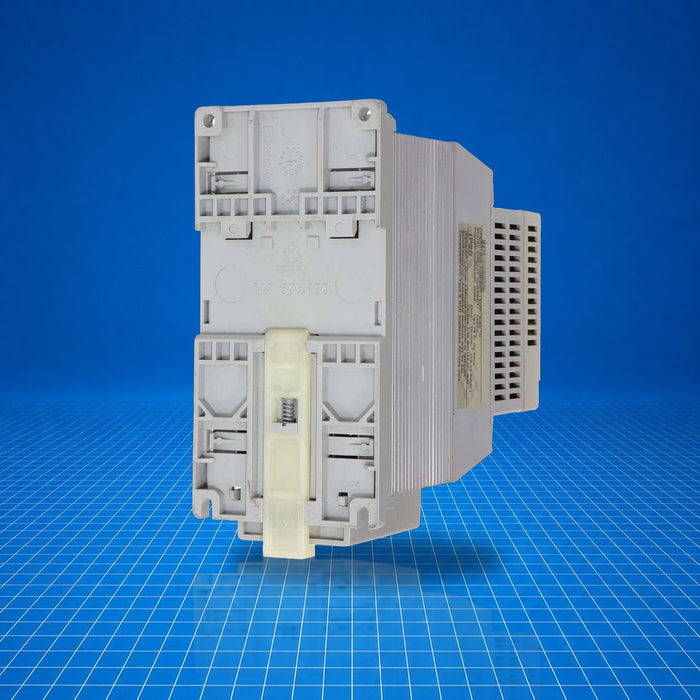

DIN-rail or panel (35 mm DIN or ≤ 4.5 mm screws)
Operating temperature
0 - 50 °C
Short-circuit current rating
100 kA
Weight
2.38 lbs (1.08 kg)
